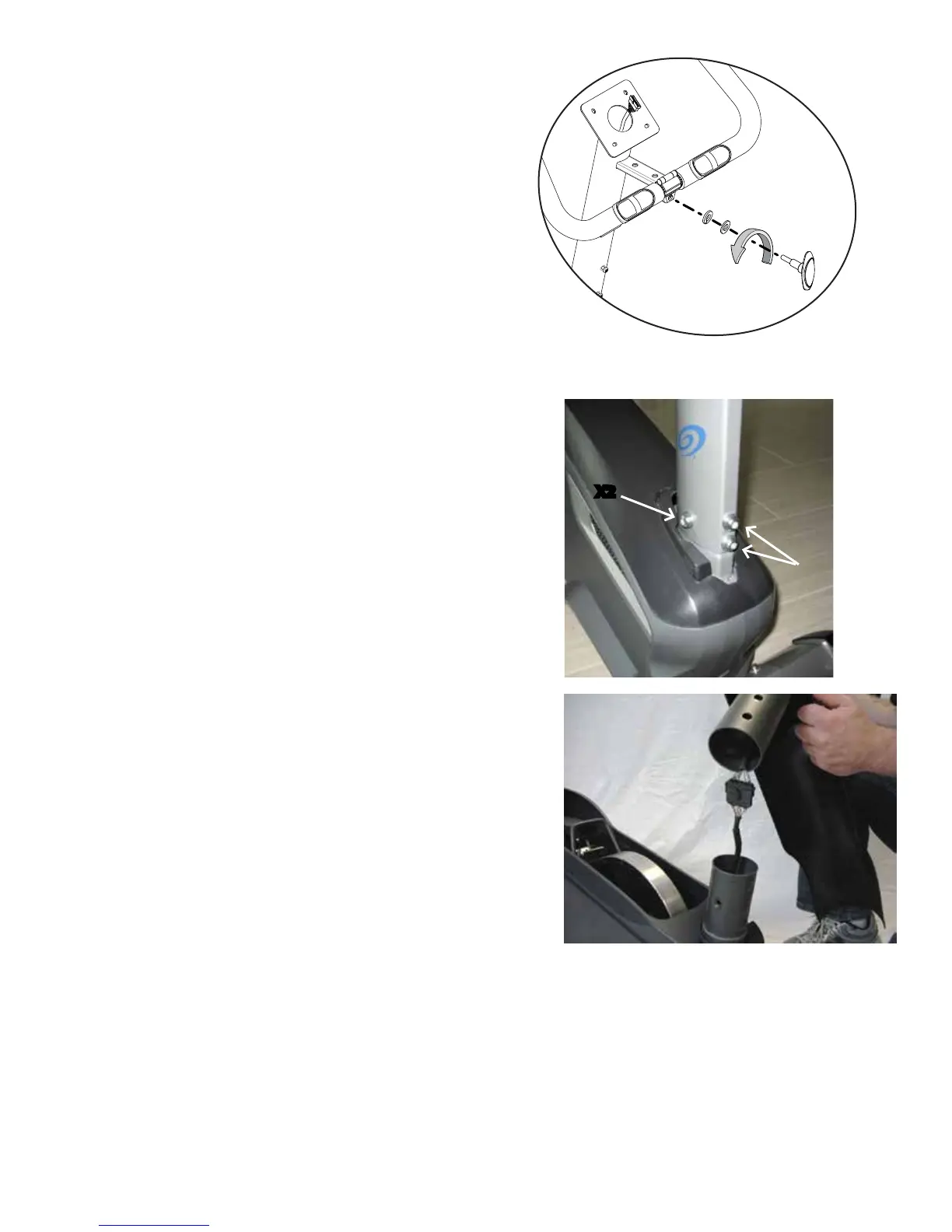

5. Remove the T-handle and washers that attach the Handlebar to the
Mast. Set them safely aside for reassembly.
NOTICE: Hold the Handlebar so that it does not fall.
6. Remove the Handlebar and set it safely aside for reassembly.
7. Remove the Mast Gasket.
8. Remove the hardware (indicated) from the Mast. Gently pull the Mast
out and disconnect the cables. Set the hardware, Mast Gasket and Top
Shroud safely aside for reassembly. Discard the old Mast.
NOTICE: Do not crimp the cables. This step may require two people.
Note: Do not let the cables fall down inside the Frame.
9. Install the replacement Console Mast and the Mast Gasket on Main
Assembly.
NOTICE: Make sure the Console Cable connector does not fall into
the Console Mast. Align the clips on the cable connec-
tors and make sure the connectors lock. Do not crimp
Console Cable.
X2
Cable connectors
To Next Page
