18

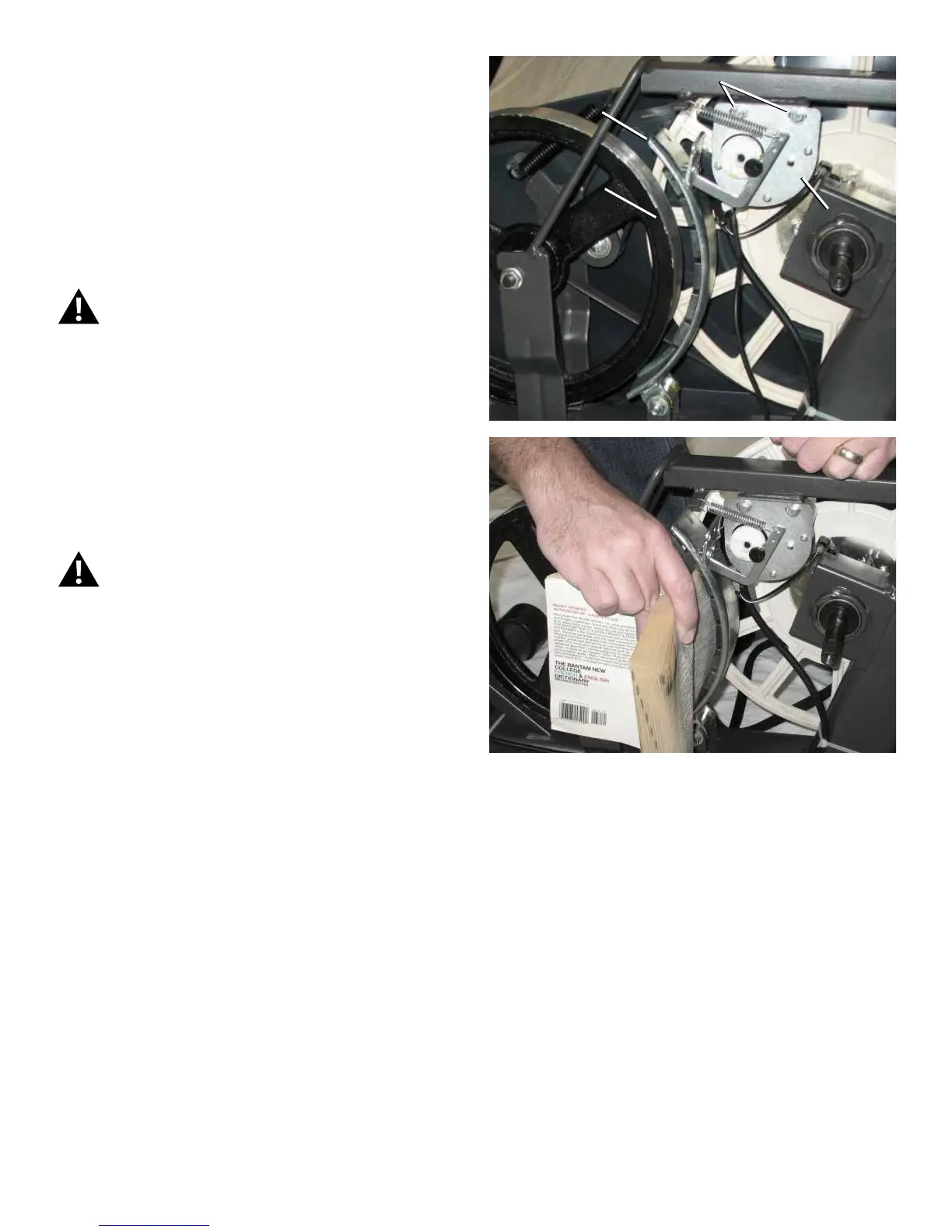

7. To adjust the Brake tension, loosen the 2 hex head bolts (C) and
move the Servo Motor assembly (D) until the closest point on the Brake
Magnet (A) is within 3.0 mm (1/8”) of the Flywheel (B). Tighten the bolts.
Note: If the cardboard is not 3mm (1/8”) thick, you can use
the pages of a paperback book to measure the gap.
Approximately 36 pages (sheets) = 3mm.
8. Turn the power on again. Use the console to check the resistance
adjustment.
Machine is on. Current is active. There is risk of electrical shock.
Note: Before fully attaching the Shrouds, remove the cardboard
from between the Brake Magnet (A) and the Flywheel (B).
Power up the machine to verify that the Magnet Arm can
move freely, and that the Brake Magnet and Flywheel do not
touch.
9. Final Inspection
Inspect your machine to ensure that all hardware is tight and components
are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
B
D
A
C
