Nautilus E626 Service Manual

28

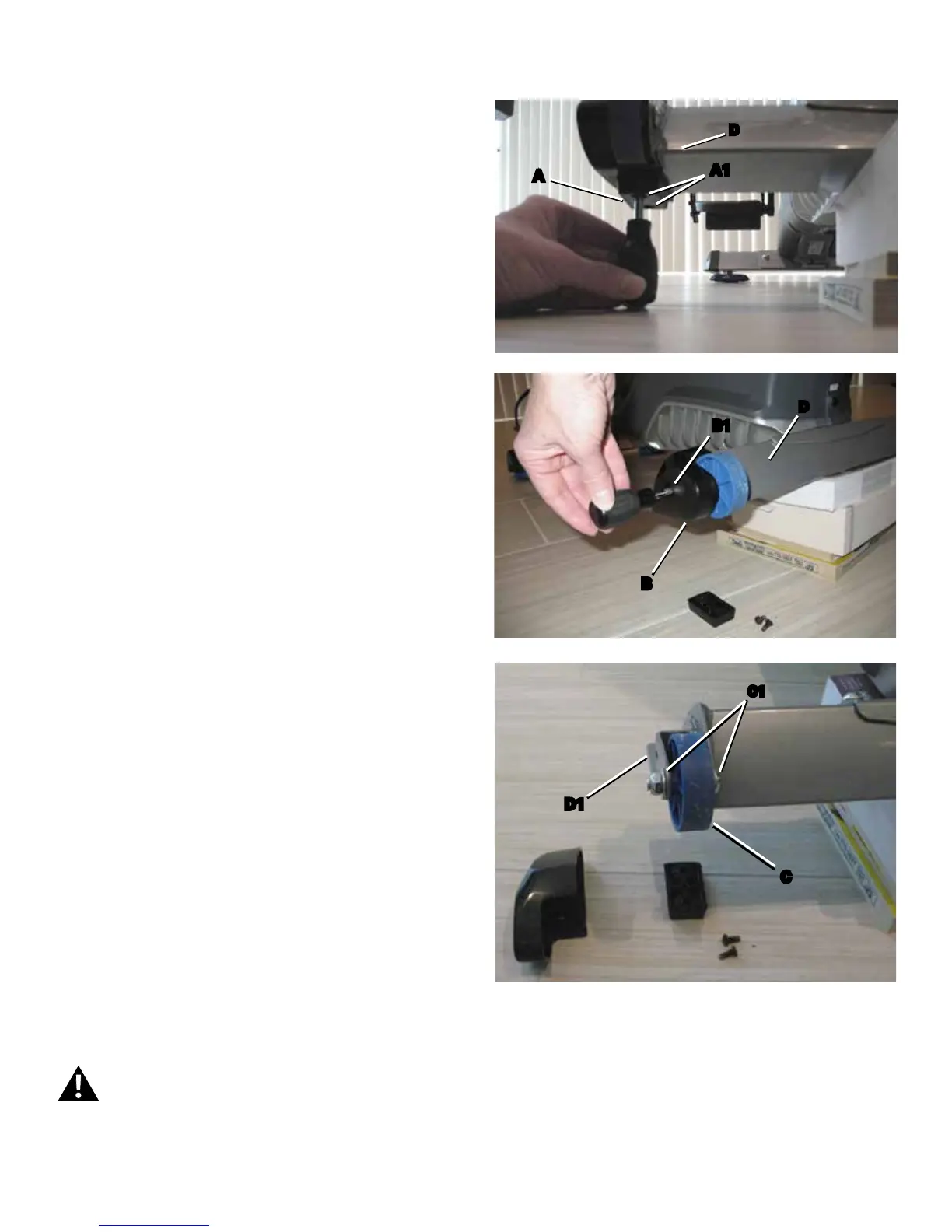

Note: Your machine may not match the image. For reference only.
1. Place a static object (like a book or box) under the front stabilizer (C).
The static object should not be compressible.
2. Using a short #2 Phillips screwdriver, loosen and remove the screws
(A1) from the Footpad (A), and set them safely aside. Remove the
Footpad from the front stabilizer (D). Set the Footpad and screws safely
aside.
3. Loosen and remove the screw (B1) from the Endcap assembly (B)
and set it safely aside. Remove the Endcap from the front stabilizer (D).
Set the Endcap and screw safely aside.
4. Using the 6mm hex key and 13mm wrench, loosen and remove
the hardware (C1) from the old Transport Wheel assembly (C). Remove
the old Transport Wheel from the front stabilizer bracket (D1). Set the
Transport Wheel and hardware safely aside.
5. Installation is the reverse procedure.
NOTICE: Before fully attaching the Endcap, be sure that the Trans-
port Wheel can turn freely.
6. Dispose of the old parts.
7. Final Inspection
Inspect your machine to ensure that all hardware is tight and components
are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
A
D
A1
C1
C
D1
B1
B
D

Nautilus E626 Specifications

General

Bottle holder	Yes
Product color	Black, Grey
Number of programs	29
Maximum user weight	136 kg
Number of resistors	25
Training displayed parameters	Calories, Distance, Time
