36

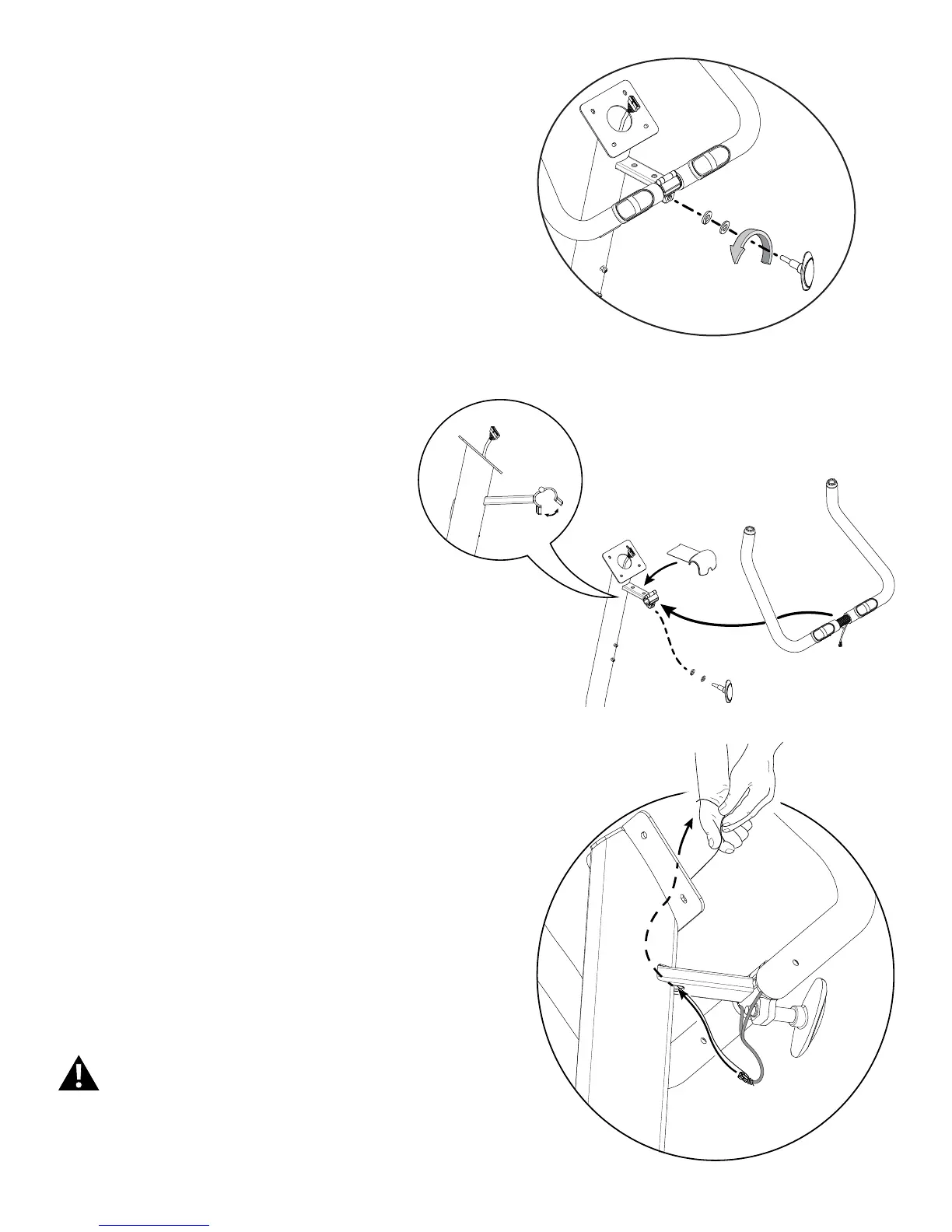

5. Remove the T-handle and washers that attach the Handlebar to the
Mast. Set them safely aside for reassembly.
NOTICE: Hold the Handlebar so that it does not fall.
6. Untie the string from the HR Cable. Remove the old Handlebar and
discard it.
7. Put the replacement Handlebar in the bracket, adjust the Handlebar to
the desired angle, and install the T-handle through the holes.
NOTICE: Do not crimp the cables.
8. Tie the end of the string under the Handlebar Bracket to the end of
the HR cable. Carefully pull the cable through the slot under the Handlebar
Bracket to the top of the mast. Fully tighten the T-handle to keep the
Handlebar in position. Push the cover into position on the Handlebar
Bracket.
NOTICE: Do not crimp the cables. Do not let the cables fall down in
the Mast.
9. Connect the cables to the back of the Console and attach the
Console to the Mast.
NOTICE: Do not crimp the cables.
10. Final Inspection
Inspect your machine to ensure that all hardware is tight and components
are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
