Note: Your machine may not match the image. For reference only.

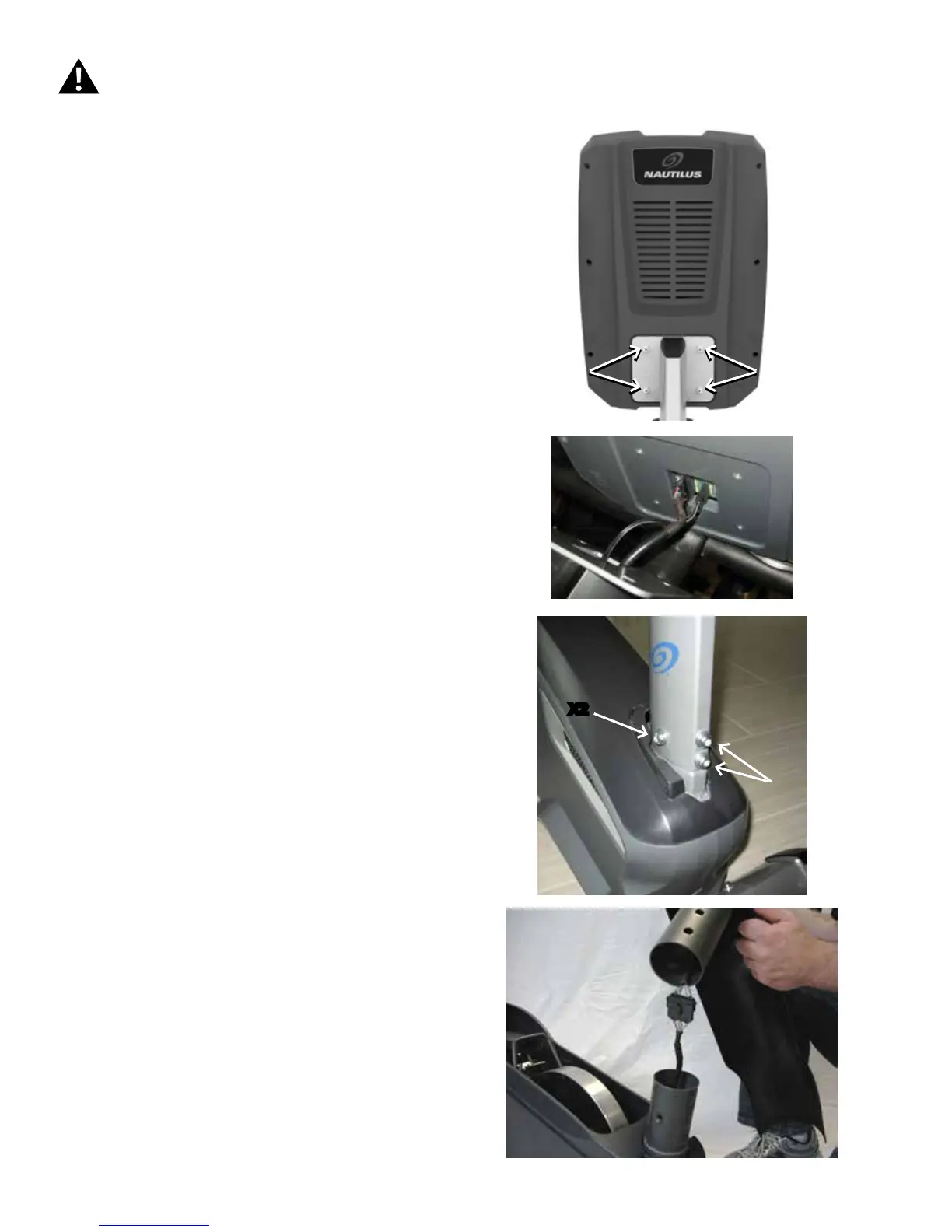

1. Remove screws that attach Console to the Mast. Carefully lift the
Console off the Mast.
2. Disconnect the Data Cable and Heart Rate Cable from the back of
the Console. Set the Console and screws safely aside for reassembly.
Note: Do not let the cables fall down inside the Mast.
3. Remove the Mast Gasket. Set it safely aside for reassembly.
4. Remove the hardware (indicated) from the Mast. Gently pull the
Mast out and disconnect the cables. Set the hardware safely aside for
reassembly.
NOTICE: Do not crimp the cables. This step may require two people.
Note: Do not let the cable fall down inside the Frame.
To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the power cord from the wall outlet and wait 5
minutes before cleaning, maintaining or repairing this machine. Place the power cord in a secure location.
X2
Cable connectors
To Next Page
