ASSEMBLY INSTRUCTIONS
NB 2000 UPRIGHT BIKE

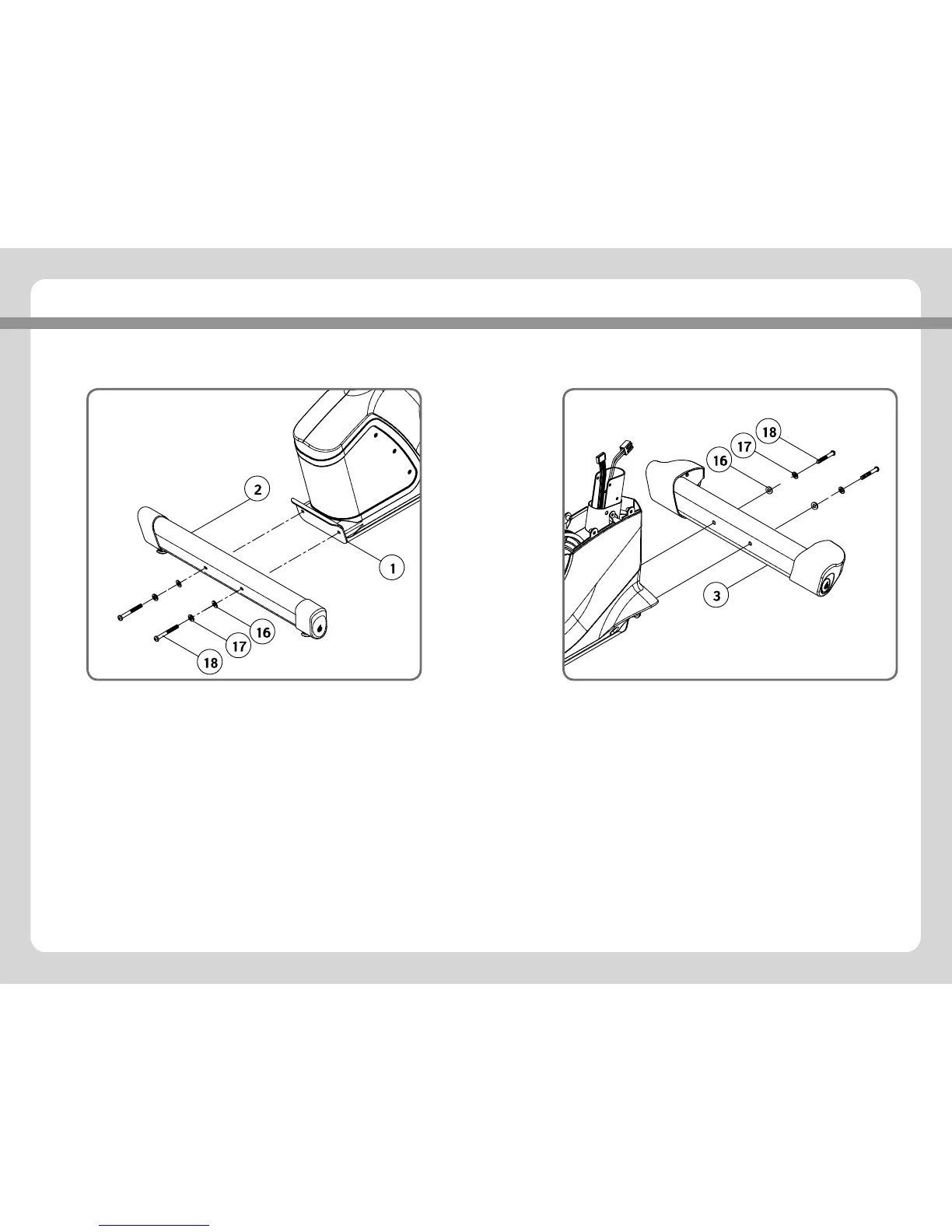

STEP 1: Attaching the Rear Stabilizer
Attach the rear stabilizer (2) to the base frame rear bracket, using 2 - 65mm socket
head cap screws (18), 2 - spring washers (17) and 2- washers (16).
STEP 2: Attaching the Front Stabilizer
Attach the front stabilizer (3) to the base frame front bracket, using 2 - 65mm
socket head cap screws (18), 2 - spring washers (17) and 2 - washers (16).
