ASSEMBLY INSTRUCTIONS NB 2000 UPRIGHT BIKE

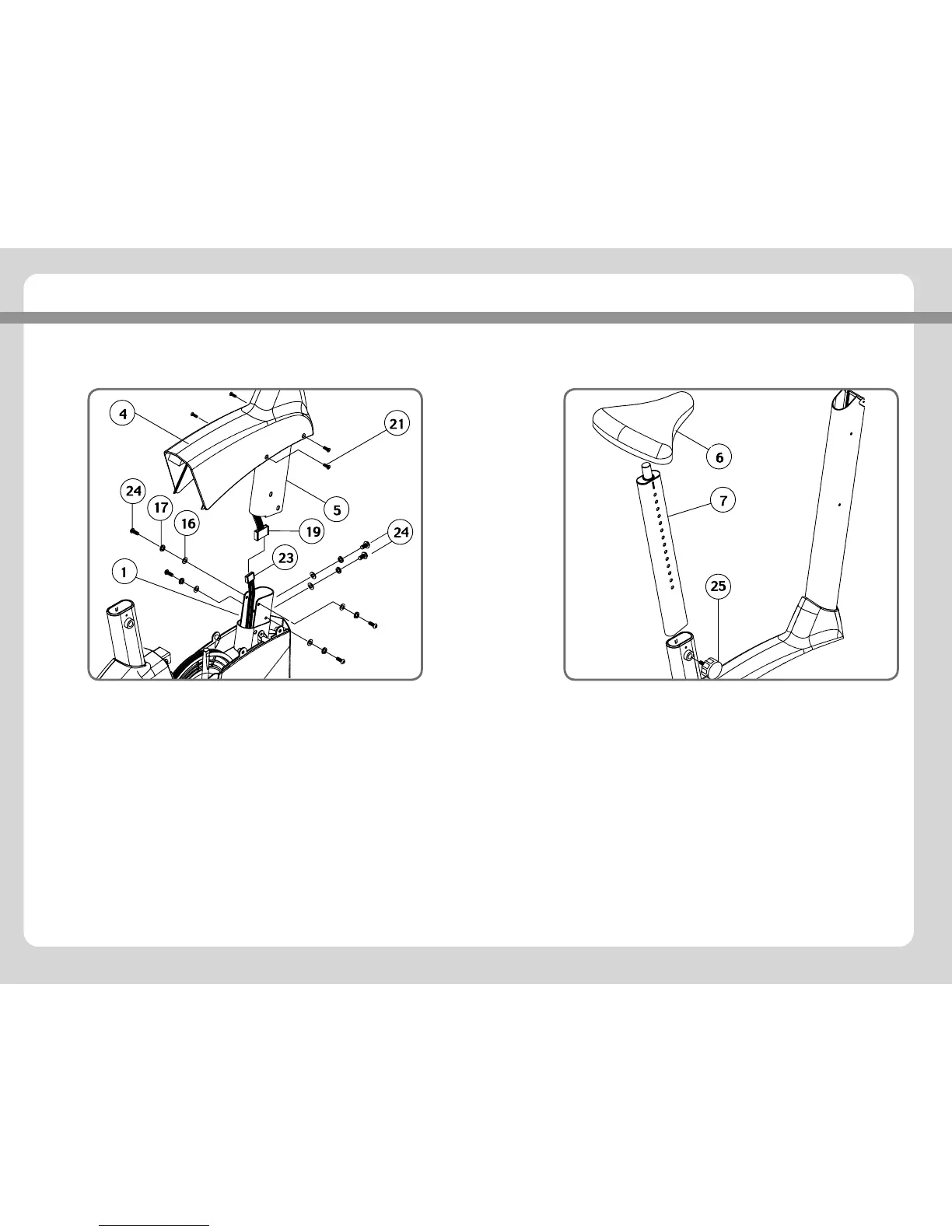

STEP 3: Installing Boot Shroud and
Handlebar Mast
Slide the boot shroud (4) up the handlebar mast (5). This part will be installed last.
Plug the computer cable (19) into the sensor cable (23). Attach the handlebar mast
(5) to the main frame (1) using 6 - 15mm socket head cap screws (24), 6 - spring
washers (17) and 6 - washers (16) .
Lower the boot shroud (4) and secure with 4 - 10mm pan head screws (21).
STEP 4: Installing Seat Post and Seat
Insert seat post (7) into frame. Thread seat post locking pop pin (25) into frame to
secure seat height adjustment. Attach seat (7) and adjust to desired angle. Note:
Typically the seat should be level with the ground. After a few workouts you may
want to adjust this angle up or down for comfort. Tighten lock nut under the seat
to secure.).
