ASSEMBLY INSTRUCTIONS
NB 2000 UPRIGHT BIKE

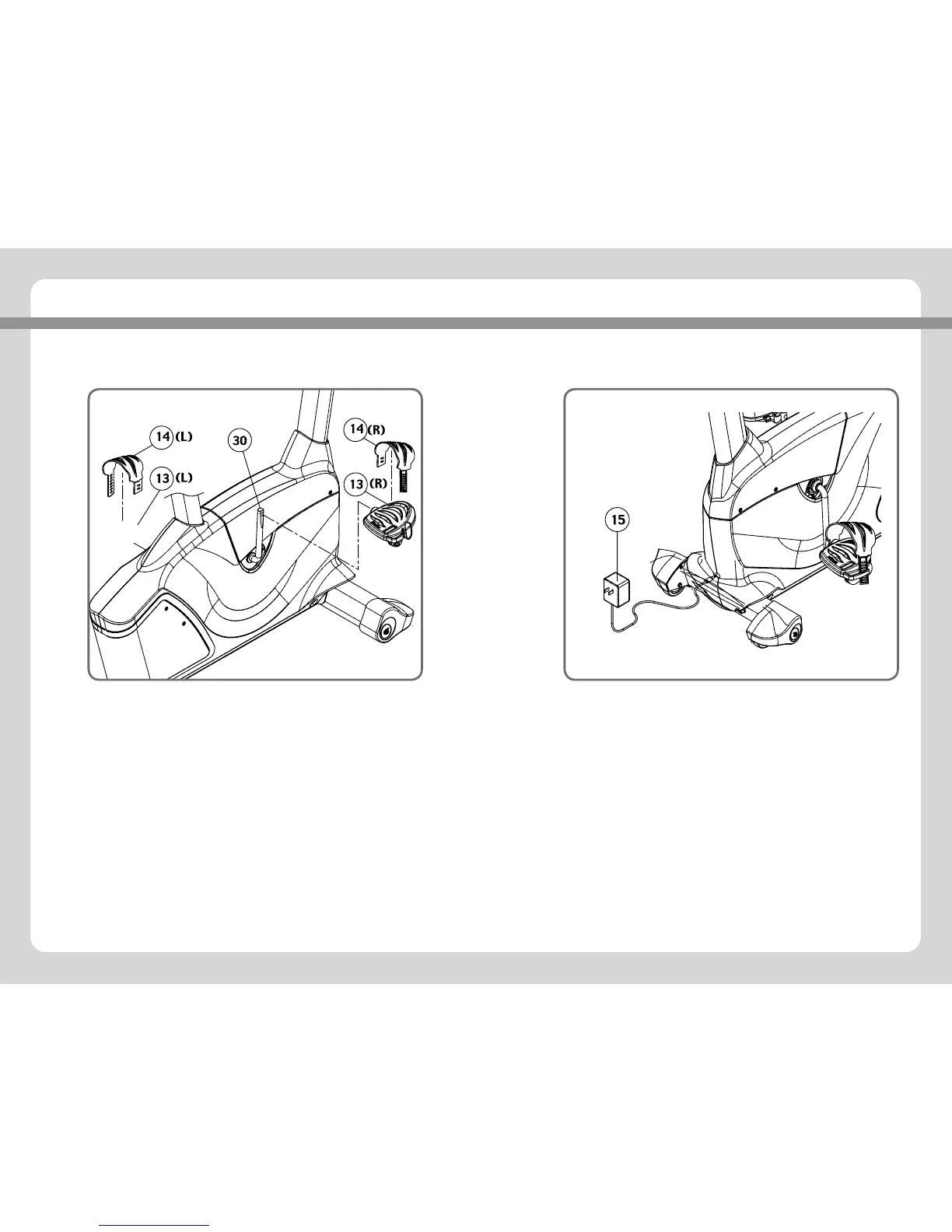

STEP 7: Installing Pedals and Pedal Straps
Thread the right pedal (13R) marked with an "R" into the right side of the crank
arm (30). Install the right pedal strap at desired length (14R)
(Important: The thread direction of the right pedal is clockwise.)
Thread the left pedal (13L) marked with an "L" into the left side of the crank arm
(30). Install the left pedal strap at desired length (14L)
(Important: The thread direction of the left pedal is counter-clockwise.)
STEP 8: Installing Adapter
Plug the 110 V adapter (15) into the plug outlet in the bike shroud. Now plug the
adapter into the wall outlet. Note: There is not a power switch on the machine.
Simply begin pedaling to activate computer. The bike will go into Sleep Mode
when not in use and does not need to be unplugged.
