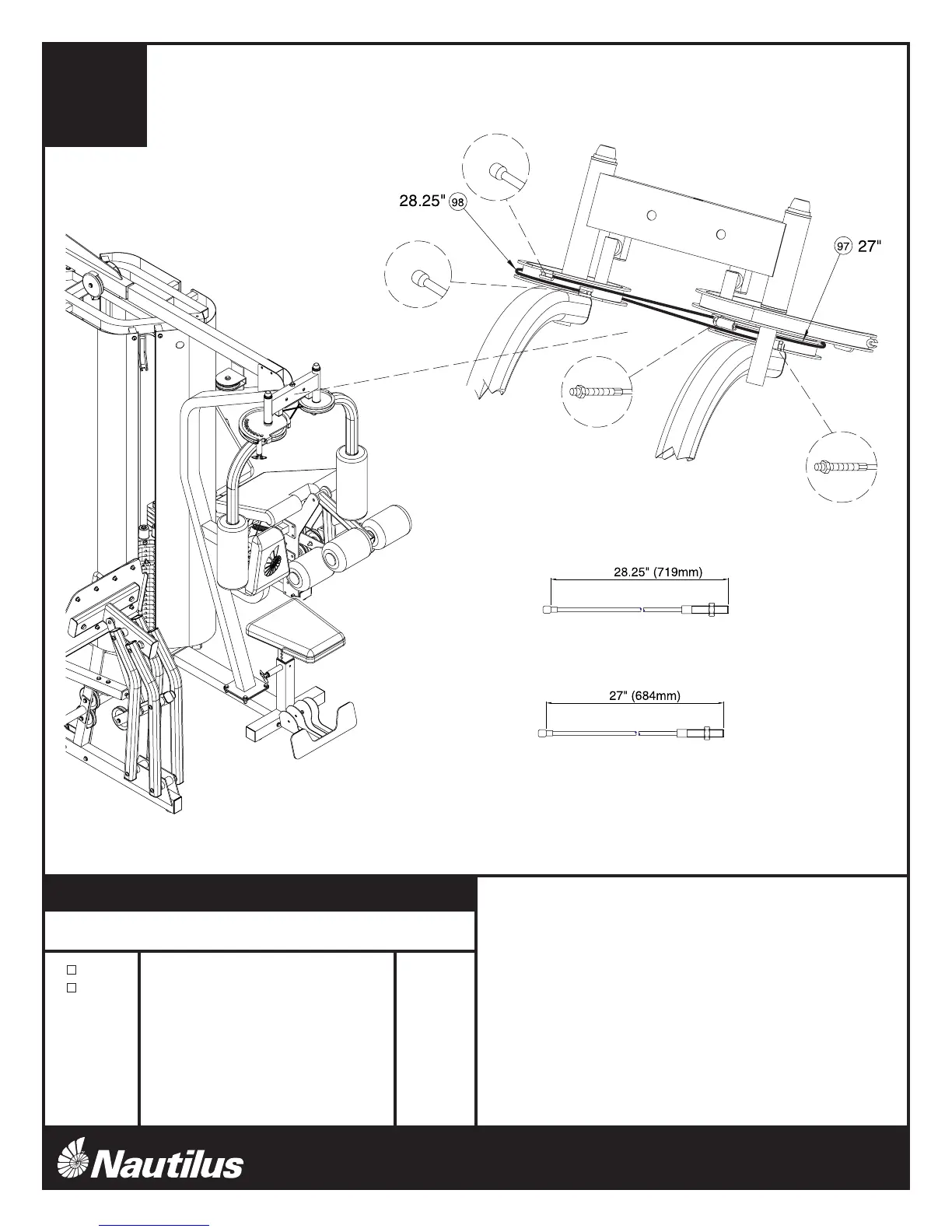

A. Attach the Pec Fly Cable (97) to the Right Pec Fly
Handle with the butt end termination shown.
B. Remove the nut from the bolt end termination. Route the
Pec Fly Cable (97) in a figure 8 fashion, and slide the
bolt end termination through the slot on the Left Pec Fly
Cable. Attach the nut to the bolt end termination of the
opposite side of the slot to constrain the cable. Do not
tighten.
C. Repeat Instructions A and B for Pec Fly Cable (98).
D. Adjust the tension of the both Pec Fly Cables (97)(98) by
tightened the nuts on the bolt end terminations. The
Cables should be taut but still allow the Pec Fly Handles
to rotate freely.
step
8
Step #8 Materials:
# Component Qty
97 Pec Fly Cable 27"L 1
98 Pec Fly Cable 28.25"L 1
To Next Page
