Nautilus NS-4000 User Manual

NS-4000
6
# Component Qty
1 Main Base 1
2Pec Fly Support Upright 1
3 Press Arm Support Upright 1
4 Main Top Frame 1
5Pec Fly Main Frame 1
6Pec Fly Base Assembly 1
7Pec Fly Back Adjuster 1
8Pec Fly Top Beam 1
9 Seat Row Frame 1
10 Pec Fly Seat Adjuster 1
11 Pec Fly Mount 1
12 Pec Fly Range of Motion 1
13 Left Pec Fly Handle 1
14 Right Pec Fly Handle 1
15 Backing Plate 1
16 Roller Collar 2
73 Pec Fly Back Pad 1
74 Pec Fly Seat Pad Assembly 1

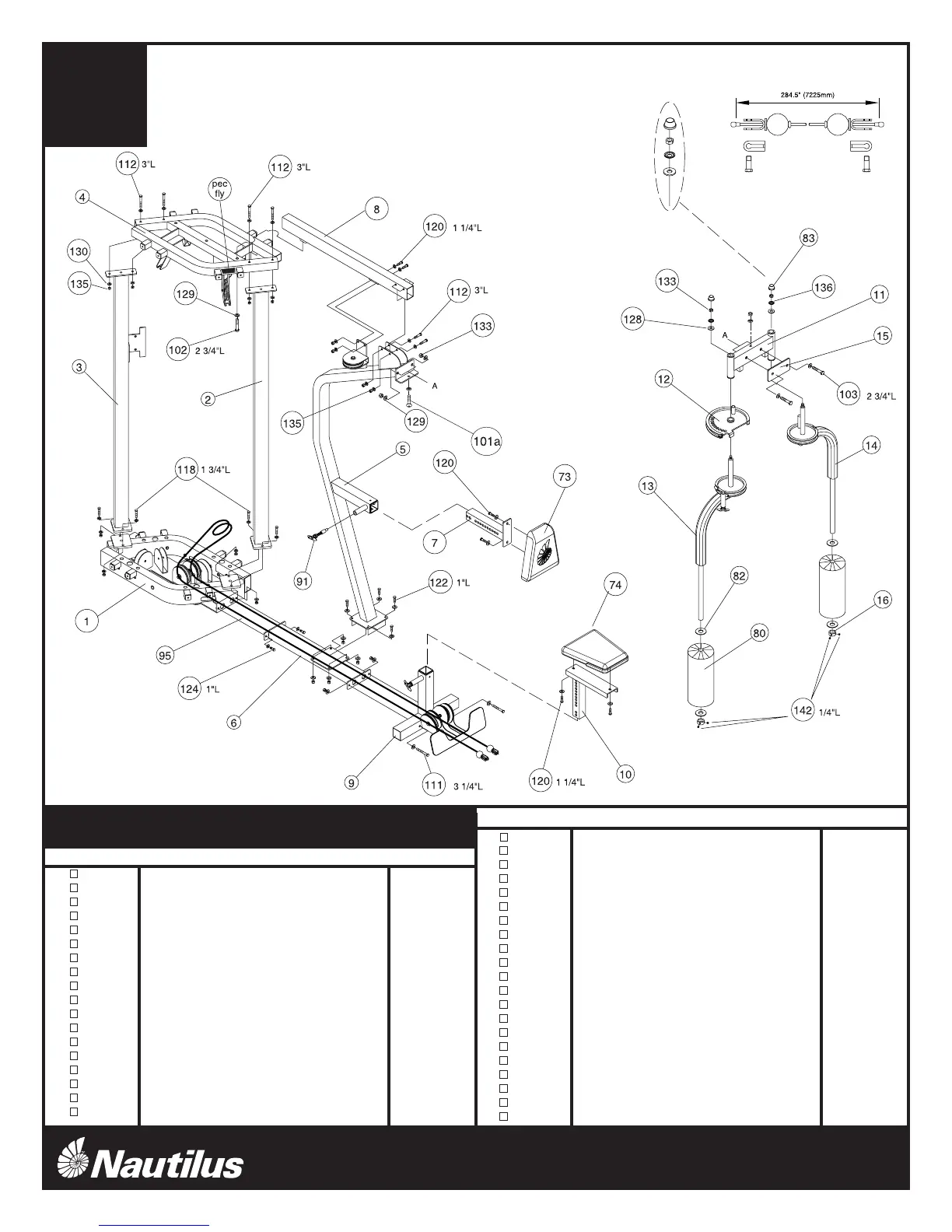

step
1
Step #1 Materials:
# Component Qty
80 Pec Fly Roller Pad 2
82 2 3/8" Plastic Washer 4
83 Plastic Cap 2
91 T Handle Pop Pin 1
95 Low Row Cable 1
101a Button Head Screw 1/2" x 4"L 1
102 Hex Bolt - 1/2" x 2 3/4"L ThreadLock 1
103 Hex Bolt - 1/2" x 2 3/4"L 2
111 Hex Bolt - 3/8" x 3 1/4"L 2
112 Hex Bolt - 3/8" x 3"L 6
118 Hex Bolt - 3/8" x 1 3/4"L 4
120 Hex Bolt - 3/8" x 1 1/4"L 6
122 Hex Bolt - 3/8" x 1"L 4
124 Hex Bolt - 3/8" x 1"L ThreadLock 2
128 1 11/32 x 1/2" Flat Washer 2
129 1/2" Flat Washer 5
130 3/8" Flat Washer 42
133 1/2" x 15/32t Lock Nut 5
135 3/8" Lock Nut 18
136 Shim Washer 2
142 Set Screw 5/16" x 1/4"L ThreadLock 4
