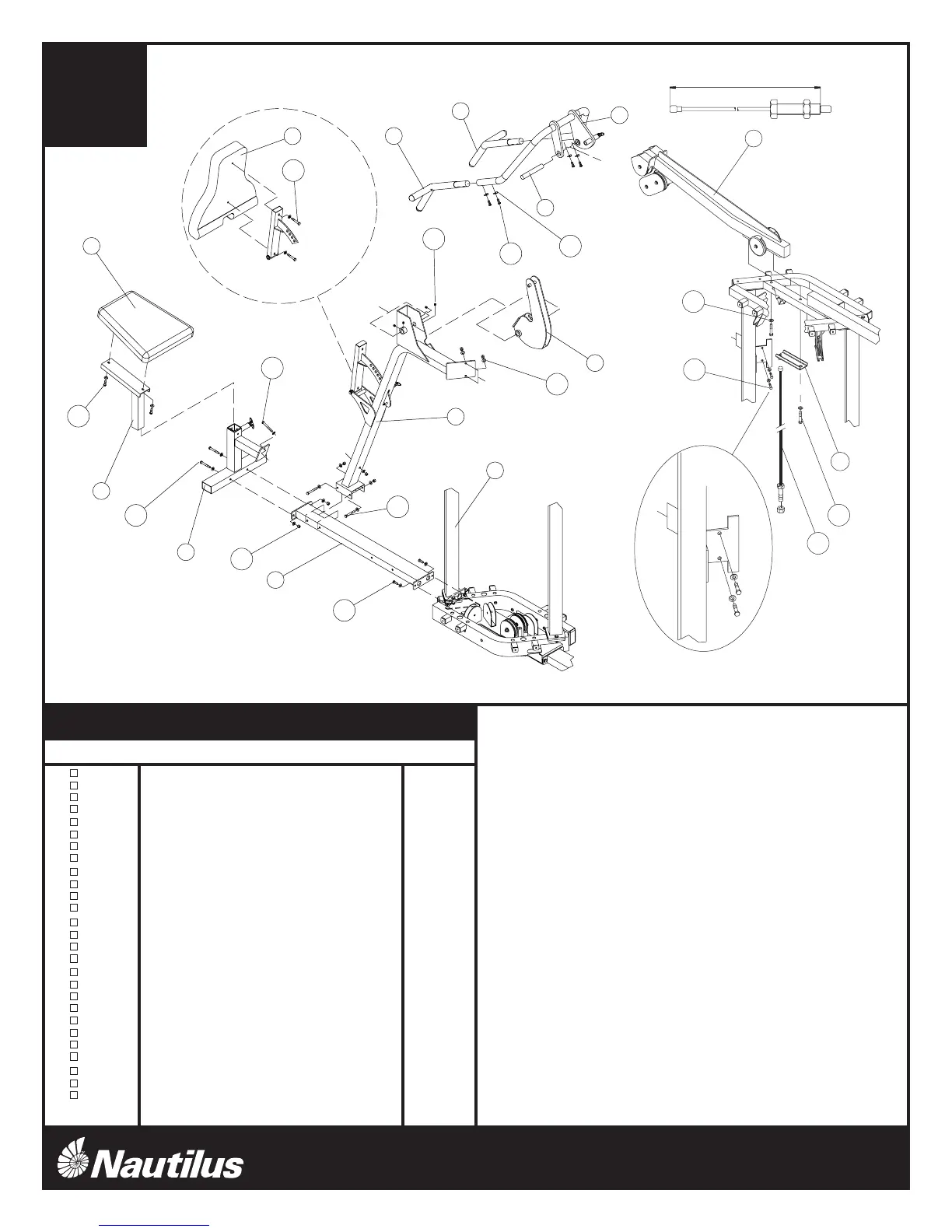

A. Attach the Press Arm Base (18) to the Main Base using the
hardware shown. Do not tighten hardware.
B. Attach the Press Arm Top Beam (22) to the Main Top Frame
using only the screw and washer located away from the Pec Fly
Beam. Do not tighten screw until after completing step C.
C. Place end “AA” of the Guide Cable (101) in the slot on the
Upper Bracket (34) as shown. Attach the Upper Bracket (34) to
the Main Top Frame and Press Arm Top Beam (22) using the
hardware shown. Tighten hardware securely. Note: Guide
Cable (101) will not be fully assembled until step 15.
D. Attach the Press Arm Main Frame (17) to the Press Arm Base
(18) and the Press Arm Support Upright (3) using the hardware
shown. Do not tighten hardware. NOTE: Be sure to install the
hardware with the bolt head to the inside as shown in detail B.
Otherwise, the end of the bolt will interfere with the weight stack.
E. Attach the Press Arm Seat Frame (19) to the Press Arm Base
(18) using the hardware shown. Tighten all hardware in
instructions A-D securely.
F. Attach the Press Arm Range of Motion (23) and the Press Arm
(21) to the Press Arm Main Frame (17) using the Press Arm
Pivot Shaft (24). Align the Pivot Shaft (24) and secure by
tighten the Set Screws (142) securely.
G. Attach the left and right Press Arm Handles (25)(26) to the
Press Arm (21) using the hardware shown. Make sure that the
handles point away from each other. Tighten hardware securely.
H. Attach the Press Arm Seat Pad (72) to the Seat Adjuster (20)
and slide the adjuster tube into the Press Arm Seat Frame (19)
as shown. Tighten hardware securely.
I. Attach the Press Arm Back Pad (71) to the Press Arm Main
Frame (17) using the hardware shown in detail A. Tighten
hardware securely.
1"L
124
5"L
3"L
4"L
1 1/4"L
135
106
112
109
120
130
3/4"L
127
132
1/4"L
142
2 1/4"L
116
19
26
25
24
21
17
23
18
20
72
71
3
C
C
A
B
B
A
2 3/4"L
NECESSARY BOLT
ORIENTATION
1 1/4"L
102
120
22
129
A
34
101
AA
AA
A
B
1676mm (66")
step
2
Step #2 Materials:
# Component Qty
17 Press Arm Main Frame 1
18 Press Arm Base 1
19 Press Arm Seat Frame 1
20 Seat Adjuster 1
21 Press Arm 1
22 Press Arm Top Beam 1
23 Press Arm Range of Motion 1
24 Press Arm Pivot Shaft 1
25 Left Press Arm Handle 1
26 Right Press Arm Handle 1
34 Guide Cable Upper Bracket 1
71 Press Arm Back Pad 1
72 Press Arm Seat Pad 1
101 Guide Cable 1
102 Hex Bolt - 1/2" x 2 3/4"L ThreadLock 2
106 Hex Bolt - 3/8" x 5"L 2
109 Hex Bolt - 3/8" x 4"L 2
112 Hex Bolt - 3/8" x 3"L 1
116 Hex Bolt - 3/8" x 2 1/4"L 2
120 Hex Bolt - 3/8" x 1 1/4"L 4
124 Hex Bolt - 3/8" x 1"L ThreadLock 2
127 Button Head Screw 3/8" x 3/4"L ThreadLock 4
129 1/2" Flat Washer 2
130 3/8" Flat Washer 20
132 Half Circle Washer 4
135 3/8" Lock Nut 7
142 Set Screw 5/16" x 1/4"L ThreadLock 4
