Nautilus NS-4000 User Manual

NS-4000
9

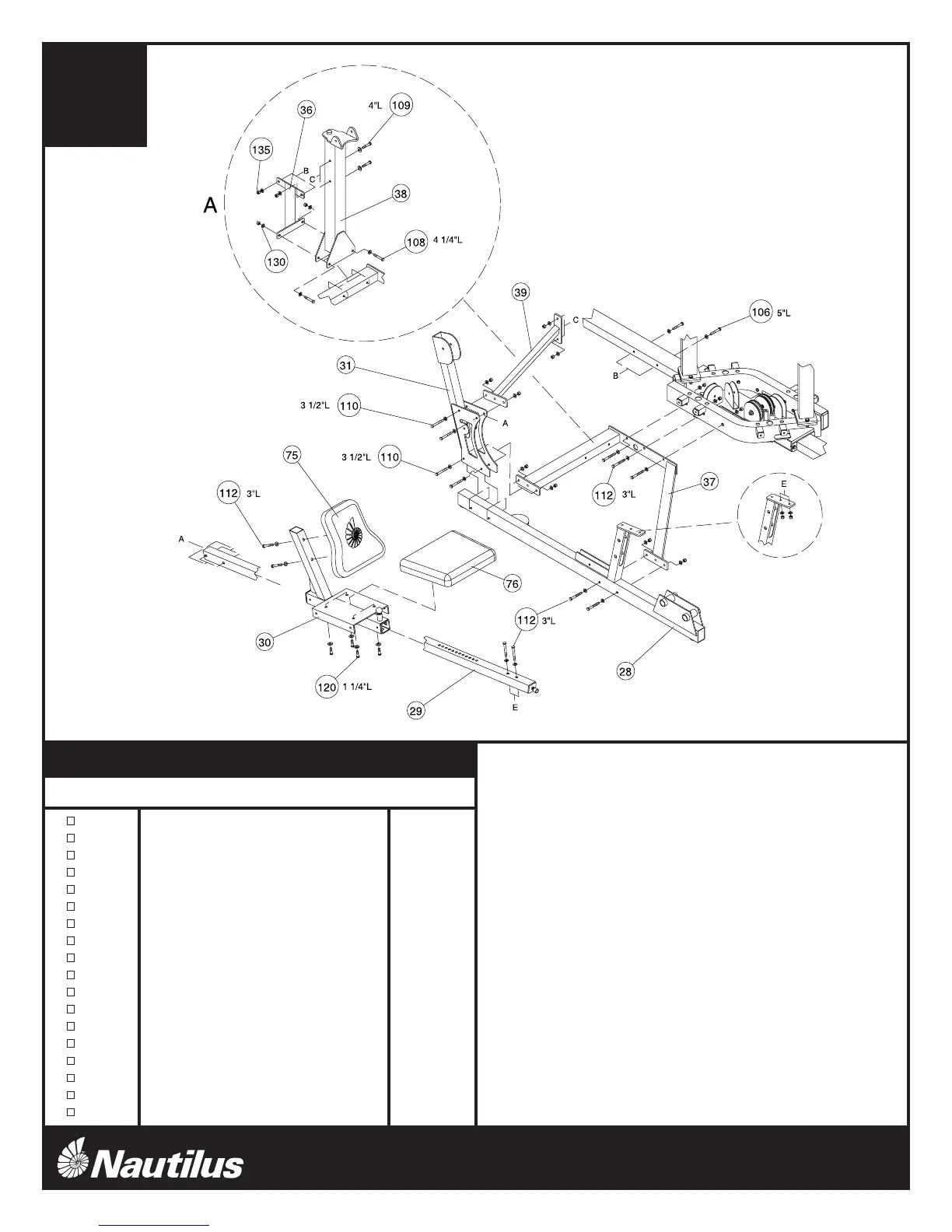

A. Attach the Base Connecting Assembly (37) to the Main Base
using the hardware shown. Do not tighten hardware.
B. Slide the Leg Press Rear Support (31) on the Leg Press Main
Base (28) as shown and attach them to the Base Connecting
Assembly (37) using the hardware shown. Do not tighten
hardware.
C. Slide the AB Crunch Support Upright (38) on the Base
Connecting Assembly (37) as shown in detail A. Attach the AB
Base Support Tube (36) to (37)(38) and the Press Arm Base
using the hardware shown. Do not tighten hardware.
D. Attach the Reinforcement Link (39) to the AB Crunch Support
Upright (38) only using the hardware shown. Do not tighten
hardware, and do not connect this piece to the Leg Press Rear
Support (31).
E. Attach the Leg Press Seat Pad and Back Pad (76)(75) to the
Leg Press Seat Glide (30) using the hardware shown. Tighten
hardware securely.
F. Slide the Leg Press Seat Glide (30) onto the Leg Press Seat
Adjuster (29) and attach the Leg Press Seat Adjuster (29) to the
Leg Press Main Base (28) and Leg Press Rear Support (31)
using the hardware shown. Tighten all hardware in this step
securely making sure to connect the Reinforcement Link (39) to
the Leg Press Rear Support (31).
step
3
Step #3 Materials:
# Component Qty
28 Leg Press Main Base 1
29 Leg Press Seat Adjuster 1
30 Leg Press Seat Glide 1
31 Leg Press Rear Support 1
36 AB Base Support Tube 1
37 Base Connecting Assembly 1
38 AB Crunch Support Upright 1
39 Reinforcement Link 1
75 Leg Press Back Pad 1
76 Leg Press Seat Pad 1
106 Hex Bolt - 3/8" x 5"L 2
108 Hex Bolt - 3/8" x 4 1/4"L 2
109 Hex Bolt - 3/8" x 4"L 2
110 Hex Bolt - 3/8" x 3 1/2"L 4
112 Hex Bolt - 3/8" x 3"L 9
120 Hex Bolt - 3/8" x 1 1/4"L 4
130 3/8" Flat Washer 38
135 3/8" Lock Nut 15
