NS-700
15
step
11
Step #11 Materials:
#Component Qty
58 4 1/2" Pulley 5
72 Cable #4 - Secondary Cable 179.5"L 1
77 Hex Bolt - 3/8" x 3 1/2"L 1
81 Hex Bolt - 3/8" x 2 1/4"L 1
82 Hex Bolt - 3/8" x 2"L 4
83 Hex Bolt - 3/8" x 1 3/4"L 1
95 3/8" Flat Washer 14
97 3/8" Lock Nut 7
101 Pulley Spacer 1/2"L 2

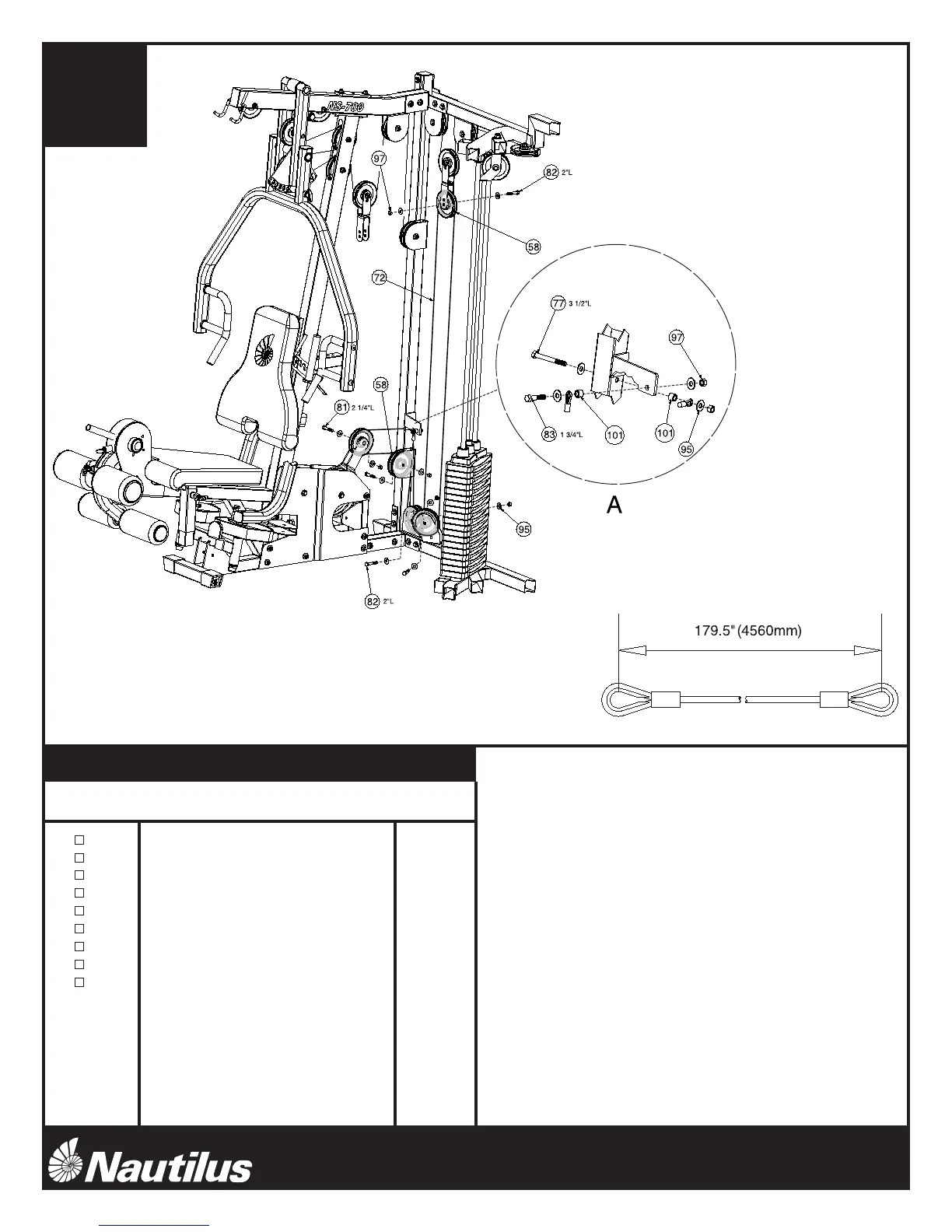

A. Attach the looped end of Cable #4 (72) to the side of the Rear
Upright (5) using the hardware shown in Detail A. Tighten
hardware securely, but do not overtighten.
B. Loop Cable #4 (72) around a 4 1/2” Pulley (58) and attach the
pulley to the lever bracket on the Leg Extension Frame (8) using
the hardware shown. Tighten hardware securely.
C. Loop Cable #4 (72) around a 4 1/2” Pulley (58) and attach the
pulley to the lower bracket on the Rear Upright (5) using the
hardware shown. Proceed by looping the cable around a 4 1/2”
pulley (58) and attaching the pulley to the bracket on the Rear
Base Frame (1) using the hardware shown. Tighten hardware
securely.
D. Loop Cable #4 (72) around a 4 1/2” Pulley (58) and attach it to the
lower hole in the Double Floating Pulley (61) using the hardware
shown. Proceed by looping the cable around a 4 1/2” Pulley (58)
and attach the pulley to the angled bracket on the Rear Base
Frame (1) using the hardware shown. Tighten hardware securely.
E. Attach the looped end of Cable #4 (72) to the bracket on the Rear
Upright (5) using the hardware shown. Tighten hardware firmly,
but do not overtighten. NOTE: This cable termination can be
used for exercise attachments such as the leg press. If an
attachment is installed, attach the looped end of the Cable #4 (72)
to the coupling on the attachment cable. Please refer to
attachment instructions for more details.
