Nautilus NS-700 User Manual

605mm
(24")
1620mm
(63.75"L)
#Description Qty P/N
1a Cam Mechanism Assy Cover Plate 1 15802
5a Leg Ext Pivot Shaft 1 15816
6a Seat Assembly 1 15818
7a Leg Extension Assembly 1 15825
13a Shim Washer 2 14385
15a Double Pulley Lock Pin w/ 2 C-Clips 1 15844
18a Plastic Cap 2 14187
20a Double Pulley w/ Bearings and Bushings 1 15850
35b Bushing 19.45 x 12.8 x 18h 2 14200
24a Step Spacer 25 x 17 x 25.7h 2 15857
25a Leg Hold Down Locking Pin 1 15861
26a Steel Pulley Cable 24"L 1 15863
27a Leg Extension Cable 62.5"L 2 15864
31a 6205 Bearing 4 15874
35a Hex Bolt - 3/8" x 3/4"L w/Thread Lock 1 15891
36a Button Head Screw 3/8" x 3/4"L w/ TL 2 15881
37a Pop Pin - Leg Ext / Swivel Arm 1 15862
79 Hex Bolt - 3/8" x 3"L 3 14245
95 3/8" Flat Washer 9 14233
97 3/8" Lock Nut 3 14234

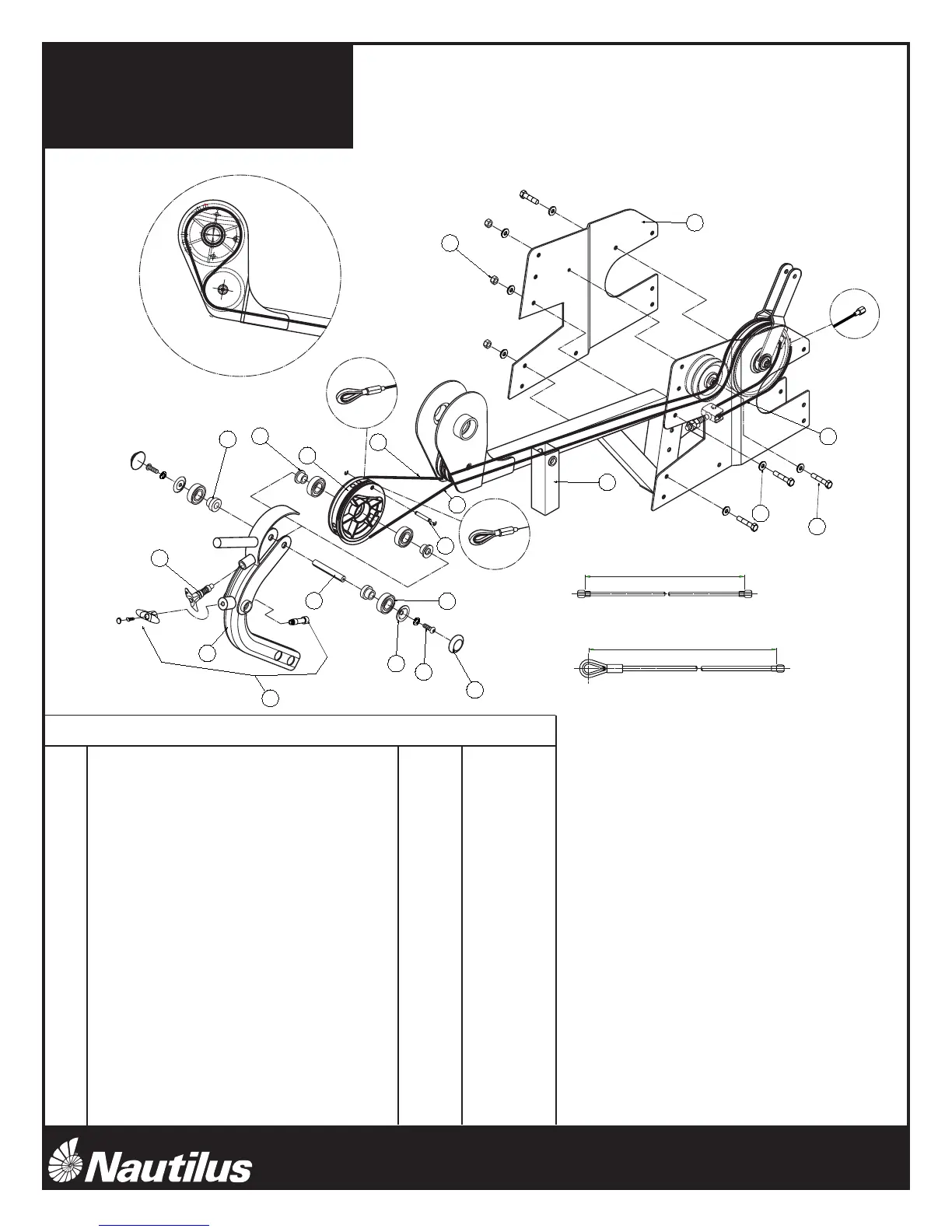

NS-700
22
sub-assembly:
leg-extension
step 2
605mm 605mm
(24")(24")
1620mm 1620mm
(63.75"L)(63.75"L)
97
95
79
6a
1a
26a
27a
27a
3/4"L
15a
20a
35b
7a
31a
24a
37a
5a
25a
13a
36a
18a
