Step #4 Materials:
#Component Qty
22 Press Arm Support Assembly 1
23 Press Arm 1
24 Right Press Arm Handle 1
25 Left Press Arm Handle 1
26 Press Arm Support Shaft 1
27 Press Arm Pivot Shaft 1
90 Button Head Allen Screw
3/8" x 1"L with thread lock 4
92 5/16" Set Screw 1/4"L 6
NS-700

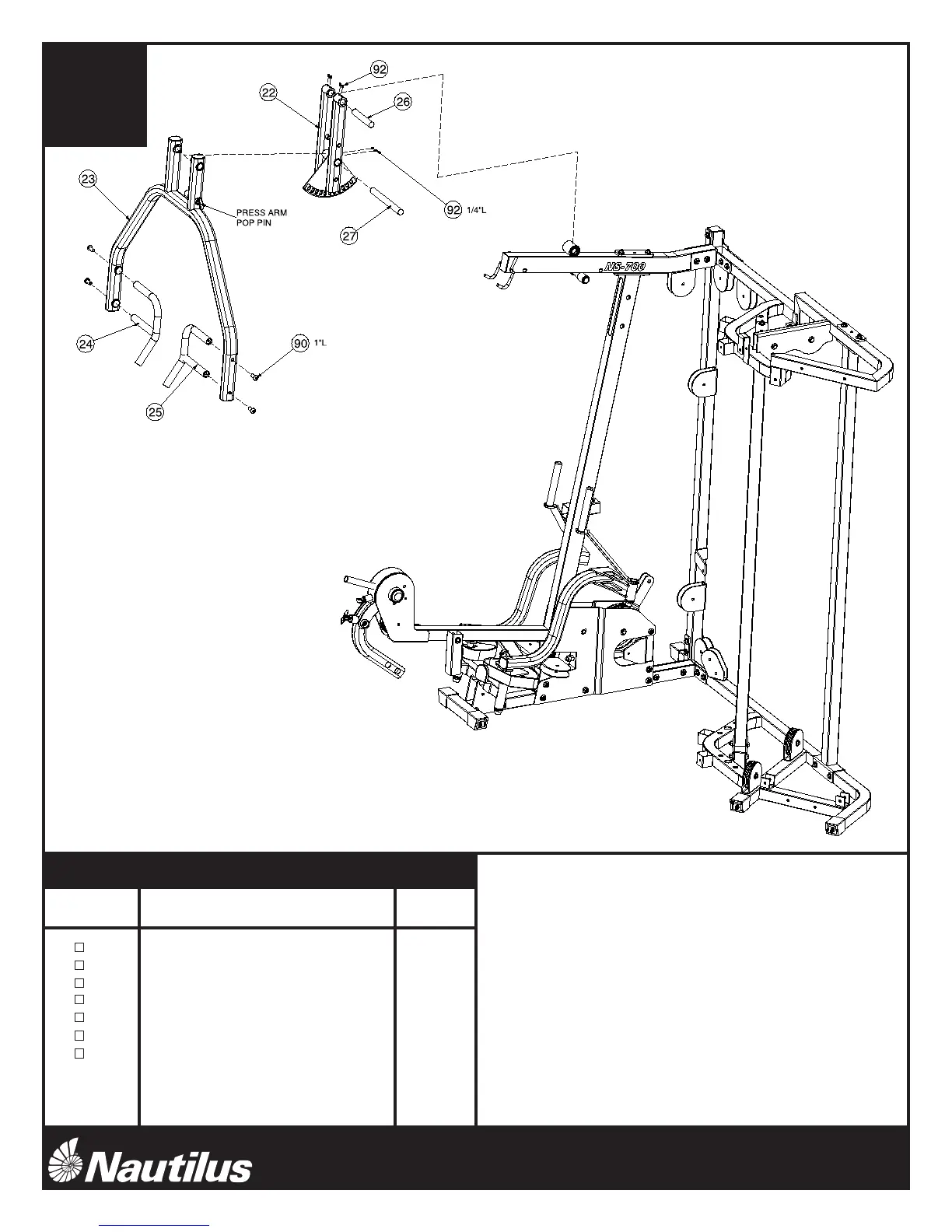

A. Attach Press Arm Support Assembly (22) to the Top
Beam (6) using the Press Arm Support Shaft (26).
Align shaft and tighten the 4 Set Screws (92) firmly.
B. Remove Pop Pin from Press Arm (23). Attach Press
Arm (23) to Press Arm Support Assembly (22) using
the Press Arm Pivot Shaft (27). Align shaft and tighten
the two Set Screws (92) firmly.
C. Attach Press Arm Handles (24) (25) using hardware
shown. Tighten hardware firmly.
