#Description Qty P/N

4a Steel Pulley Shaft 1 15815

8a Small Pulley Bracket 1 15834

9a Left Steel Pulley 1 15836

10a Lever Bracket 1 15837

11a Right Steel Pulley 1 15840

14a Steel Pulley Spacer 35 x 26 x 12.8t 1 15843

22a Small Pulley 1 15853

30a Allen Screw 3/8" x 1"L w/Thread Lock 2 15871

31a 6205 Bearing 4 15874

32a Pan Head Allen 3/8" x 3"L w/Thread Lock 1 15896

33a 1/2" Hex Nut 3 15893

34a Hex Bolt - 3/8" x 1 1/2"L 1 15888

35a Hex Bolt - 3/8" x 3/4"L w/Thread Lock 1 15891

42a Spacer 35 x 26 x 2.0t 2 14432

43a Spacer 41.5 x 25.6 x 1.1t 2 14433

58 4 1/2" Pulley 2 14185

43a

1 1/2"L

34a

33a

1"L

3/4"L

35a

3"L

32a

30a

14a

31a

42a

22a

10a

11a

31a

NS-700

sub-assembly:

leg-extension

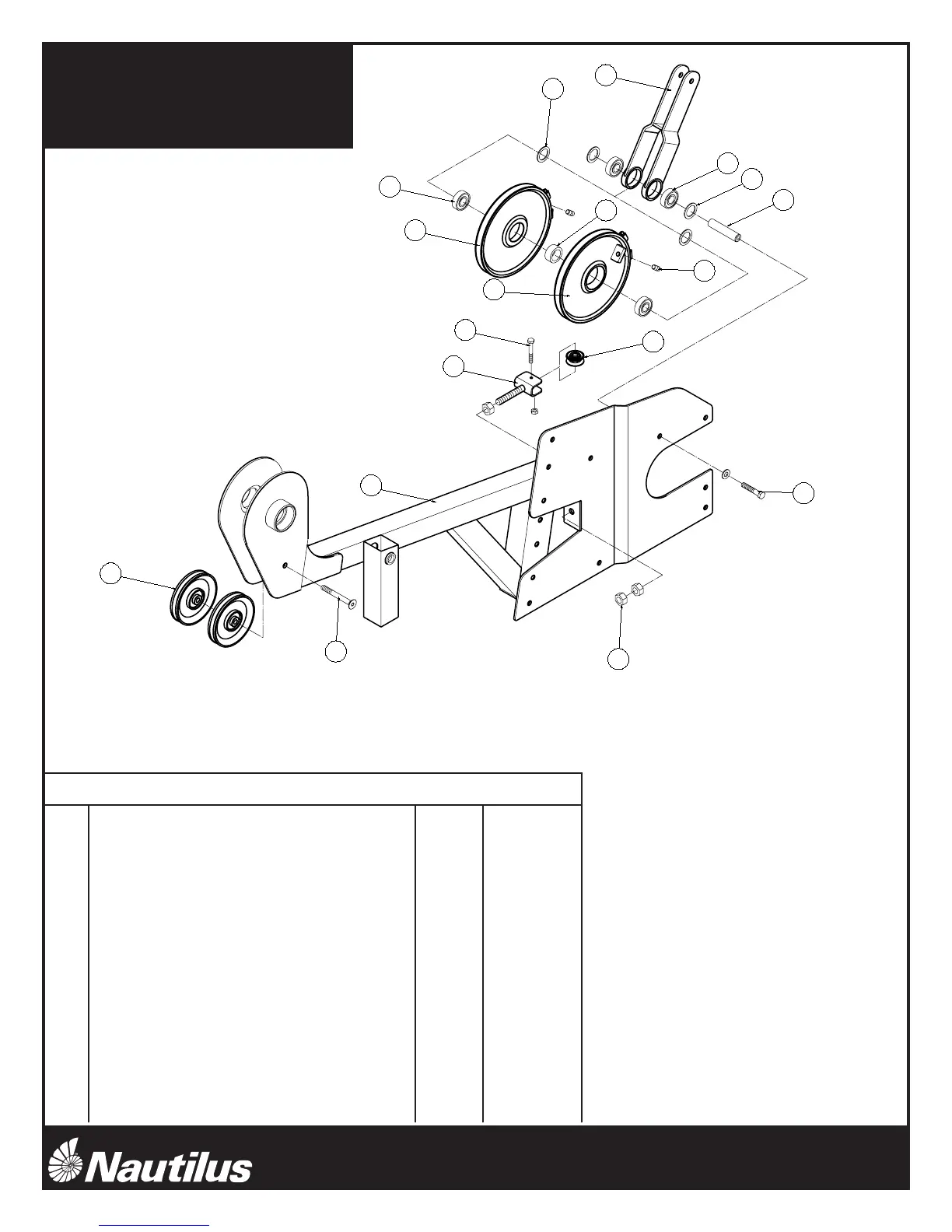

step 1

Nautilus NS-700 User Manual

Questions and Answers:
