Nautilus R614 Service Manual

13

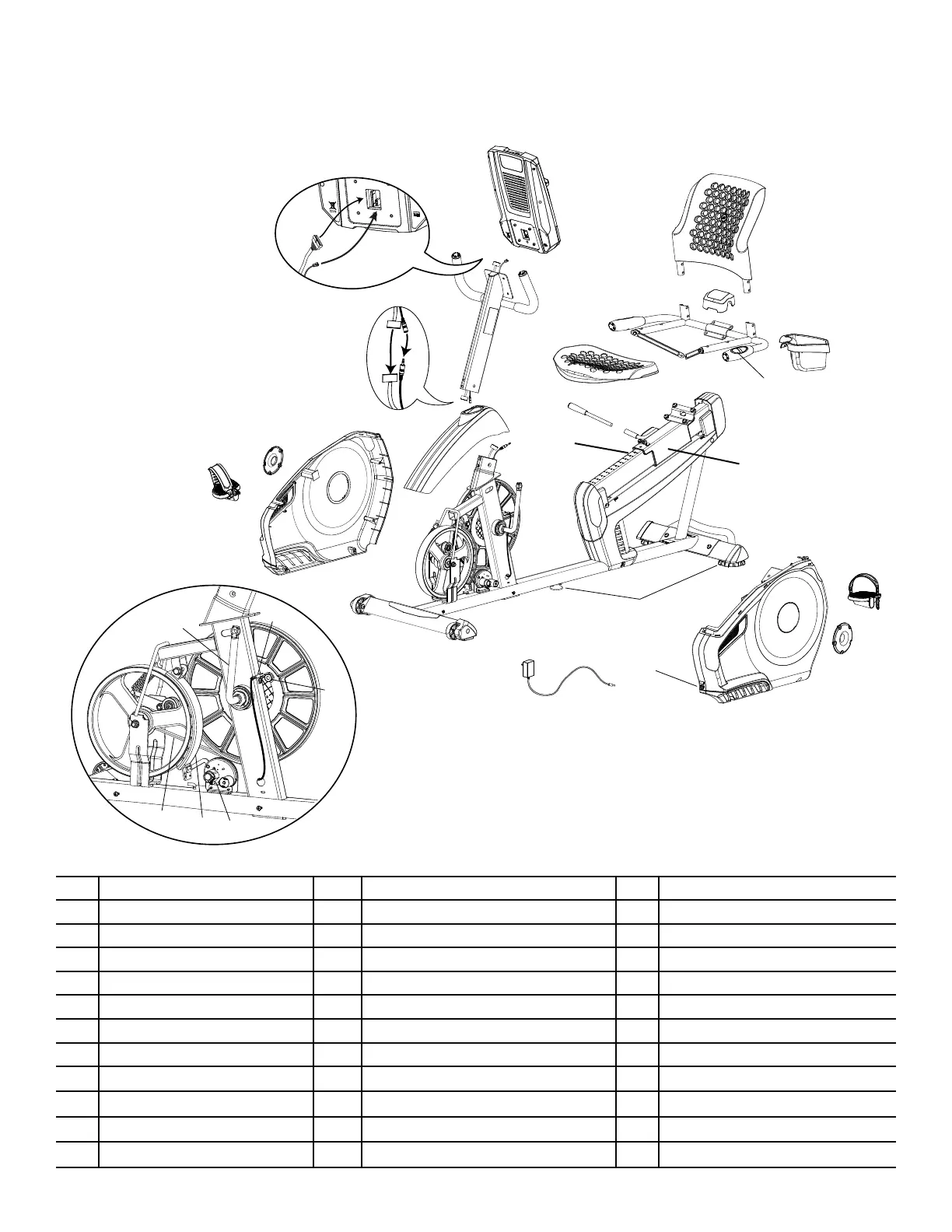

Maintenance Parts Exploded View
Your machine may differ. Use only as a guide.
R614 (MY14)
A
S
T
U
V
B
C
D
E
F
G
H
I
J
K
L
M
N
N
O
P
Q
R
T
V
W
X
Y
Z
AA
BB
CC
DD
FF
EE
R
GG
GG
A Console M Transport Wheel Y Drive Pulley
B Console Mast N Pedals Z Servo Motor
C Seat Back O Shroud, Right AA Brake Assembly
D Seat Cover P Shroud, Upper BB Drive Belt
E Water Bottle Holder Q Shroud, Left CC Speed Sensor Magnet
F Handlebar, Side R Crank Arm Assembly DD Speed Sensor
G Seat Bottom S Console Cable, Lower EE Power Inlet
H Seat Adjustment Handle T Console Cable, Upper FF AC Adapter
I Frame Assembly U Heart Rate Cable, Lower GG Cover, Crank Disc
J Rear Stabilizer 9 Heart Rate Cable, Upper HH Seat Rail
K Leveler W Contact Heart Rate Sensor (CHR) II Seat Slider Assembly
L Stabilizer, Front ; Flywheel
HH
II
