26
Note: Your machine may not match the image. For reference only.

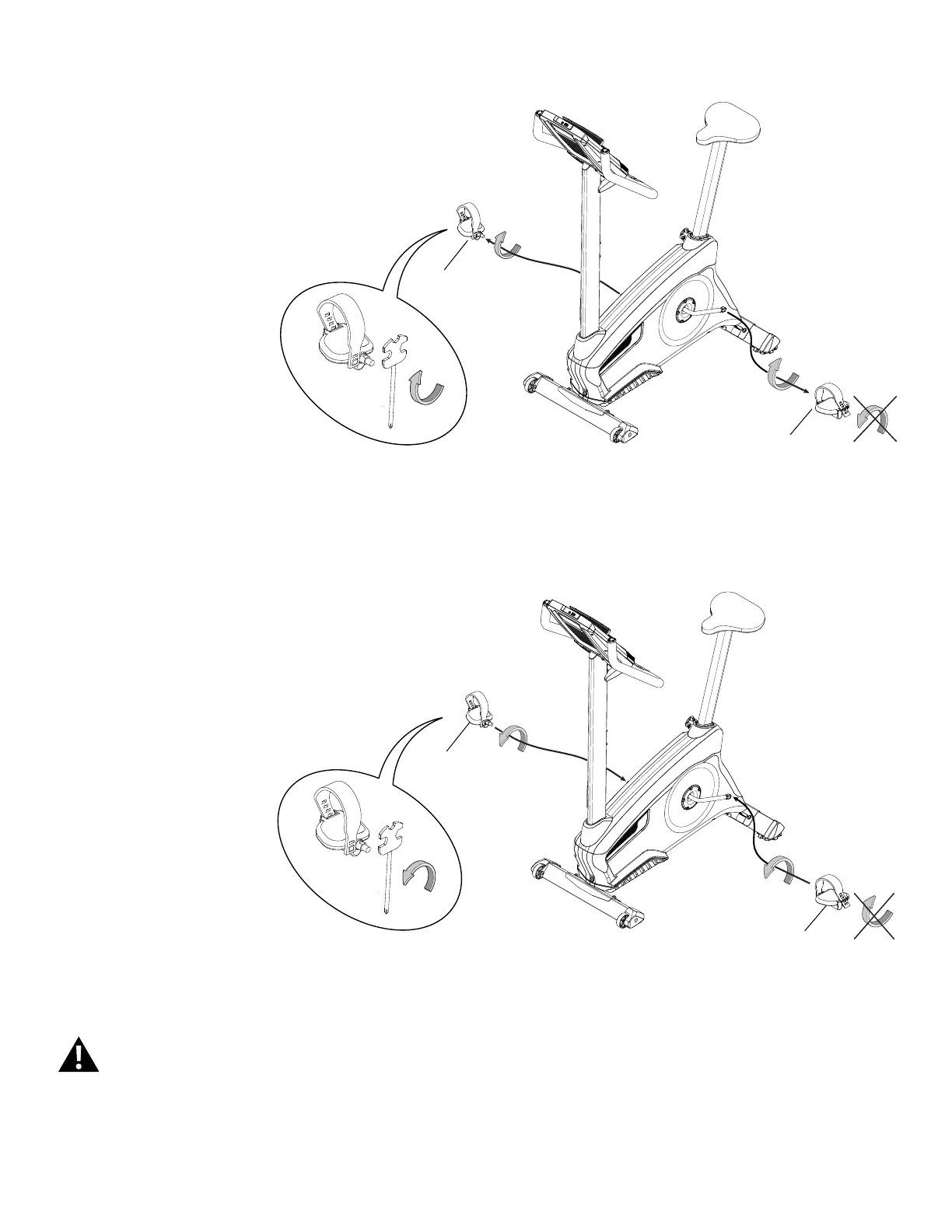

1. Loosen and remove the old Pedals. Discard the old Pedals.
Note: The Left Pedal is reverse-threaded. Orientation is based
from a seated position on the bike. The Left Pedal has an “L”,
the Right Pedal an “R”.
2. Install the new Pedals. Carefully align the threads and hand tighten
to prevent cross-threading. Then tighten fully with pedal wrench.
Note: The Left Pedal is reverse-threaded. Be sure to attach
Pedals on the correct side of the Bike. Orientation is based
from a seated position on the bike. The Left Pedal has an “L”,
the Right Pedal an “R”.
3. Final Inspection
Inspect your machine to ensure that all hardware is tight and components
are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
(L)
(R)
(R)
(L)
