Disconnect all power to the machine before you service it.

Note: Your machine may not match the image. For reference only.

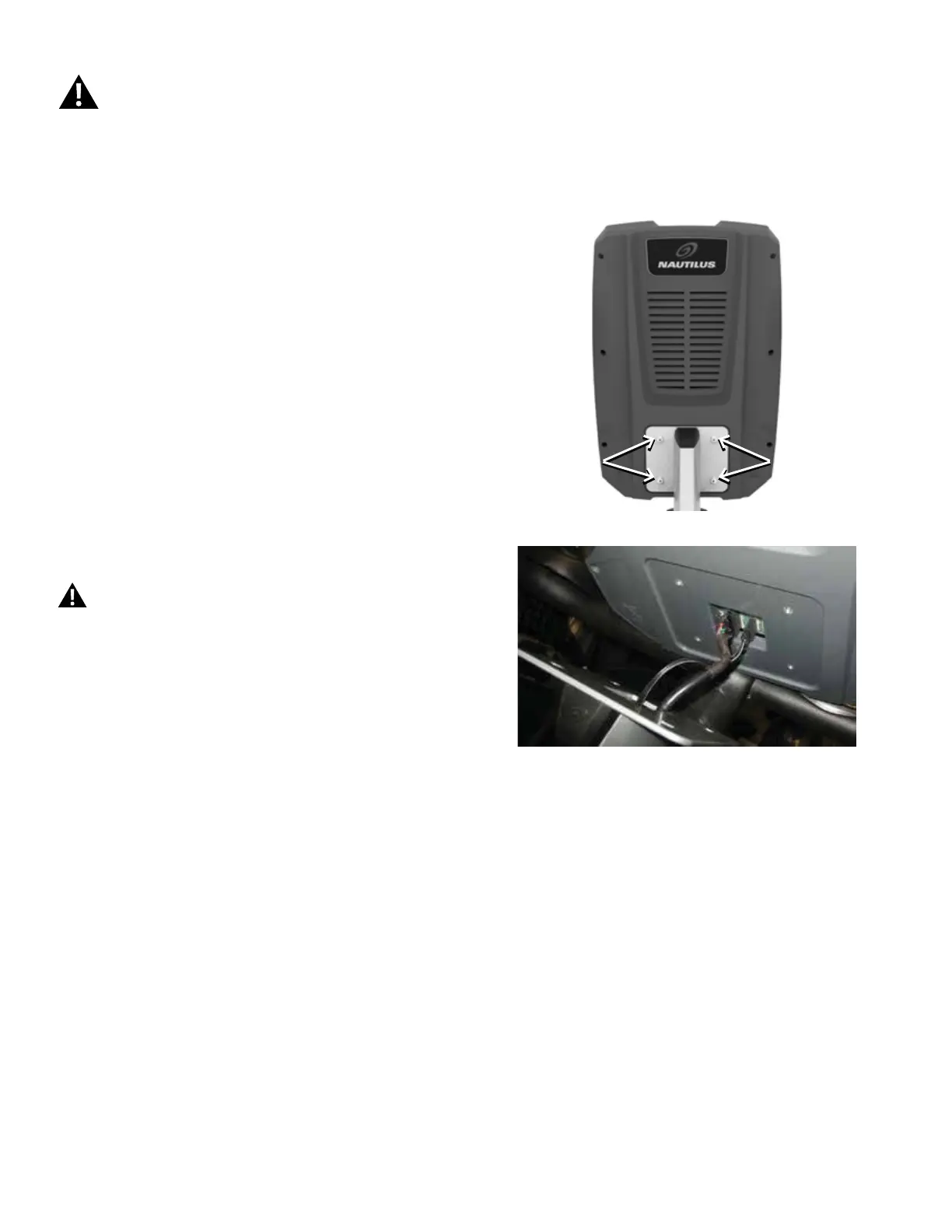

1. Remove screws that attach Console to the Mast. Carefully lift the

Console off the Mast.

2. Disconnect the Data Cable and Heart Rate Cable from the back of

the Console. Discard the Console and screws.

Note: Do not let the cables fall down inside the Mast. This step may

require two people.

3. Installation is the reverse procedure.

4. Discard the old parts.

5. Inspect your machine to ensure that all hardware is tight and

components are properly assembled.

Do not use until the machine has been fully assembled and

inspected for correct performance in accordance with the

Owner’s Manual.

Initial Setup

'XULQJWKH¿UVWSRZHUXSWKH&RQVROHVKRXOGEHVHWXSZLWKWKHGDWH

time, your preferred measurement units and machine type.

1. Date: Push the Increase/Decrease buttons to adjust the currently active

YDOXHÀDVKLQJ3XVKWKH/HIW5LJKWEXWWRQVWRFKDQJHZKLFKVHJPHQWLV

the currently active value (month / day / year).

2. Push OK to set.

3. Time: Push the Increase/Decrease buttons to adjust the currently active

YDOXHÀDVKLQJ3XVKWKH/HIW5LJKWEXWWRQVWRFKDQJHZKLFKVHJPHQWLV

the currently active value (hour / minute / AM or PM).

4. Push OK to set.

5. Units of Measurement: Push the Increase/Decrease buttons to adjust

between “MILES” (Imperial English) or “KM” (metric).

6. Push OK to set.

7. The Console display shows the Machine Type prompt with the current

setting. This menu option appears in the x614 series console only (not the

x616 series consoles). Push the Increase/Decrease buttons to change

between “BIKE” and Elliptical (“ELIP”).

8. Push OK to set. The Console goes back to the Power-Up / Idle Mode

screen.

Note: To adjust these selections, consult the “Console Service

Mode” section.
