Note: Your machine may not match the image. For reference only.

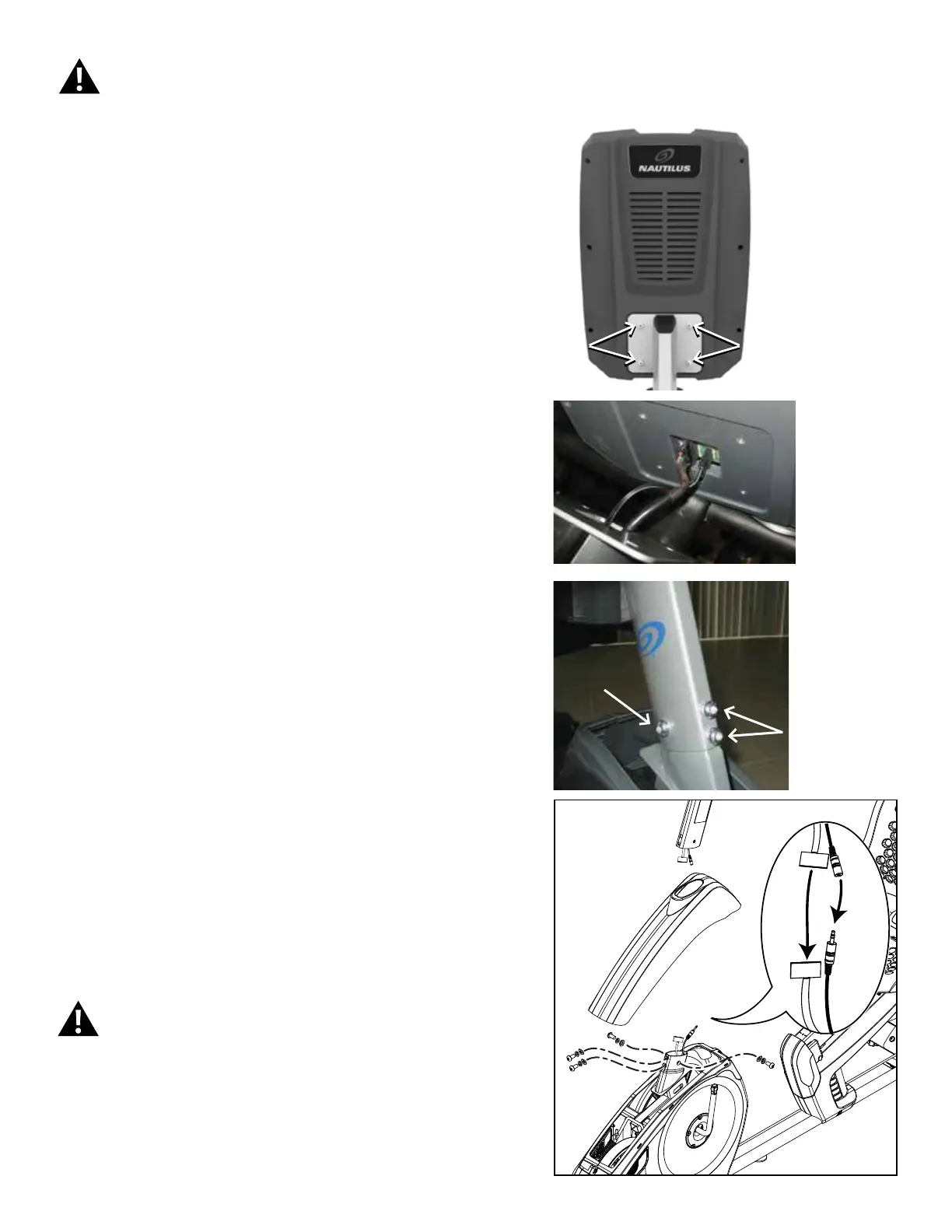

1. Remove screws that attach Console to the Mast. Carefully lift the
Console off the Mast.
2. Disconnect the Data Cable and Heart Rate Cable from the back of the
Console. Set the Console and screws safely aside for reassembly.
Note: Do not let the cables fall down inside the Mast or Frame.
3. Bend the edges of the Top Shroud to disengage the inside tabs from
the Main Assembly, and slide the Top Shroud up the Mast.
4. Remove the hardware (indicated) from the Mast. Gently pull the Mast
out and disconnect the cables. Set the hardware and Top Shroud safely
aside for reassembly. Discard the old Mast.
NOTICE: Do not crimp the cables.
This step may require two people.
5. Installation is the reverse procedure.
NOTICE: Make sure the cable connectors do not fall into the Con-
sole Mast. Align the clips on the cable connectors and
make sure the connectors lock. Do not crimp the cables.
Be sure the tabs on the Top Shroud snap into the Main
Assembly.
6. Connect the cables to the back of the Console and attach the
Console to the Mast.
NOTICE: Do not crimp the cables.
7. Final Inspection
Inspect your machine to ensure that all hardware is tight and components
are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
Disconnect all power to the machine before you service it.
;
