Nautilus R614 Service Manual

68
NOTICE: It is necessary to remove the Shrouds for this procedure. Refer to the “Replace the Shrouds” procedure.
Note: Your machine may not match the image. For reference only.

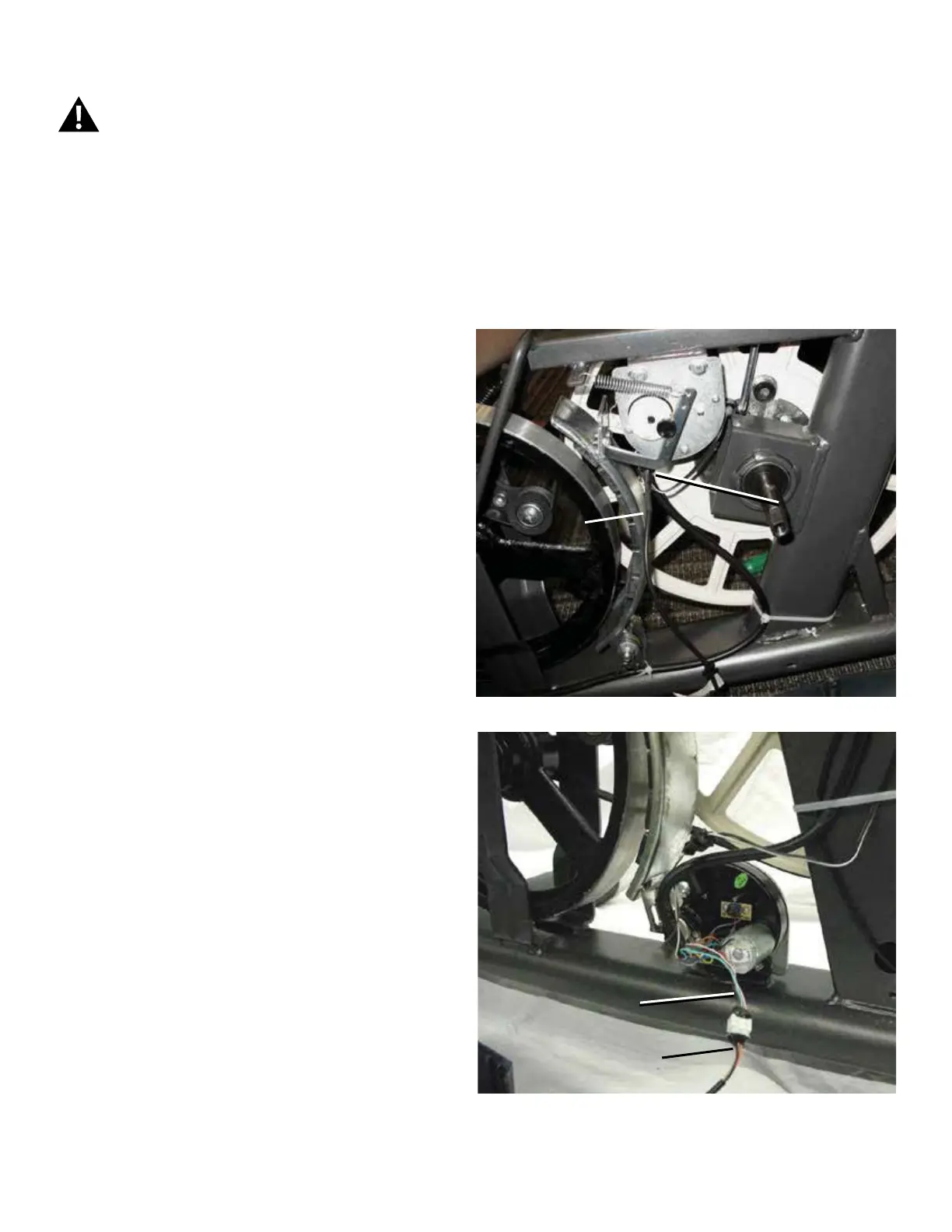

1. Carefully remove the Left Shroud. Refer to the “Replace the Shrouds”
procedure in this manual.
2. Carefully disconnect the the Power Inlet cable (A) in the Shroud from
the wiring harness (B) on the motor.
Disconnect all power to the machine before you service it.
$
B
B
$
