Nautilus R618 - Parts and Procedure Guidance; Maintenance Parts Exploded View

12

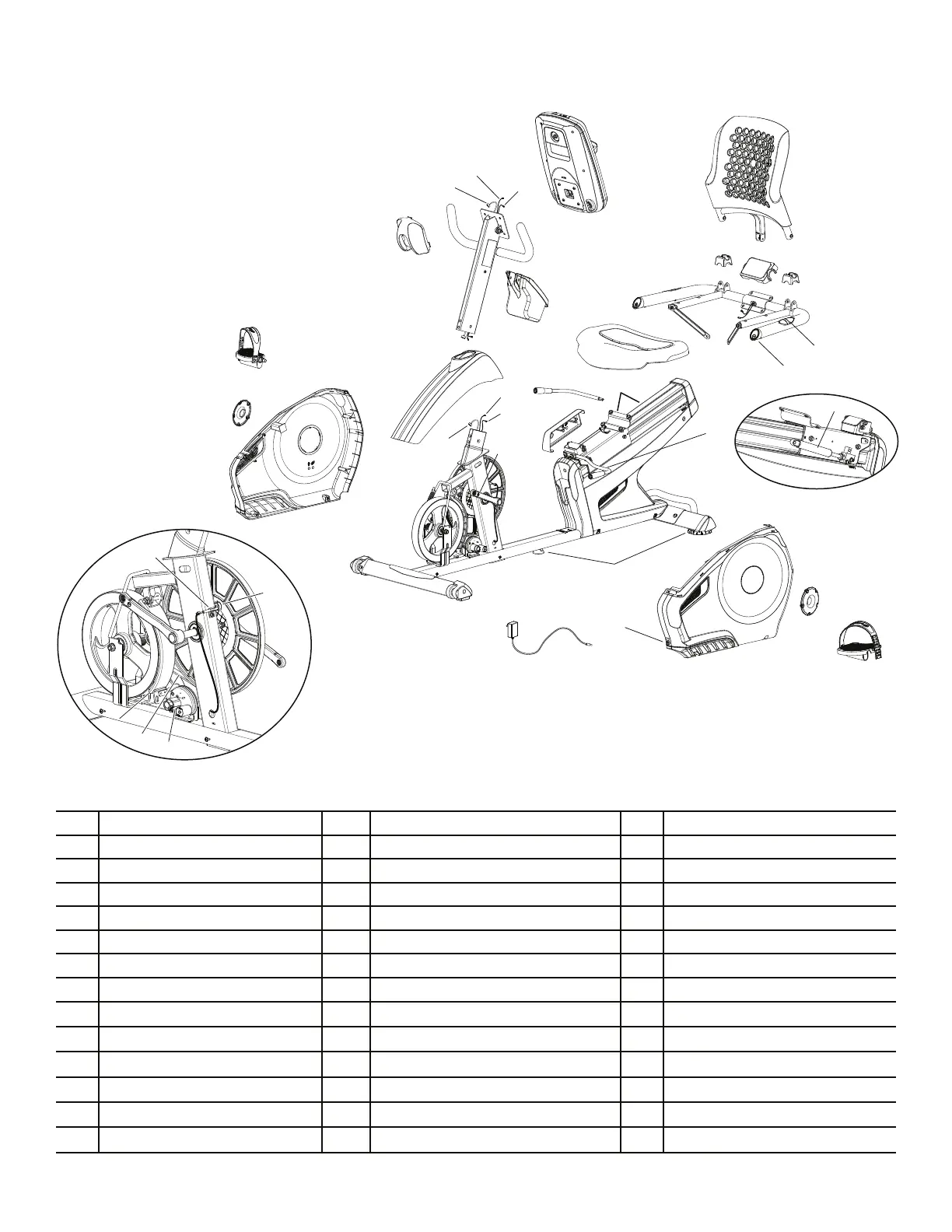

Maintenance Parts Exploded View
<RXUPDFKLQHPD\GLႇHU8VHRQO\DVDJXLGH
A Console O Stabilizer, Front CC Servo Motor
B Console Mast P Transport Wheel DD Brake Assembly
C Water Bottle Holder Q Pedals EE Drive Belt
D Seat Back R Shroud, Right FF Speed Sensor Magnet
E Top Cap S Shroud, Upper GG Speed Sensor
F Seat Frame Assembly T Shroud, Left HH Power Inlet
G Seat Bottom U Crank Arm II AC Adapter
H Seat Pivot Shroud V Console Cable, Lower JJ Cover, Crank Disc
I Seat Adjustment Handle W Console Cable, Upper KK Console Pivot Shroud
J Seat Recline Handle ; Heart Rate Cable, Lower LL Remote Resistance Control
K Shock Shroud Y Heart Rate Cable, Upper MM Resistance Cable, Lower
L Frame Assembly Z Contact Heart Rate Sensor (CHR) NN Resistance Cable, Upper
M Rear Stabilizer AA Flywheel OO Seat Recline Shock Assembly
N Leveler BB Drive Pulley PP Seat Rail Assembly
P
JJ
T
HH
JJ
II
A
D
E
C
F
G
B
KK
H
J
K
Q
L
I
N
M
O
R
Q
S
U
Z
W
V
Y
X
MM
NN
LL
U
BB
AA
GG
FF
CC
EE
DD
OO
PP
