Nautilus R618 User Manual

44

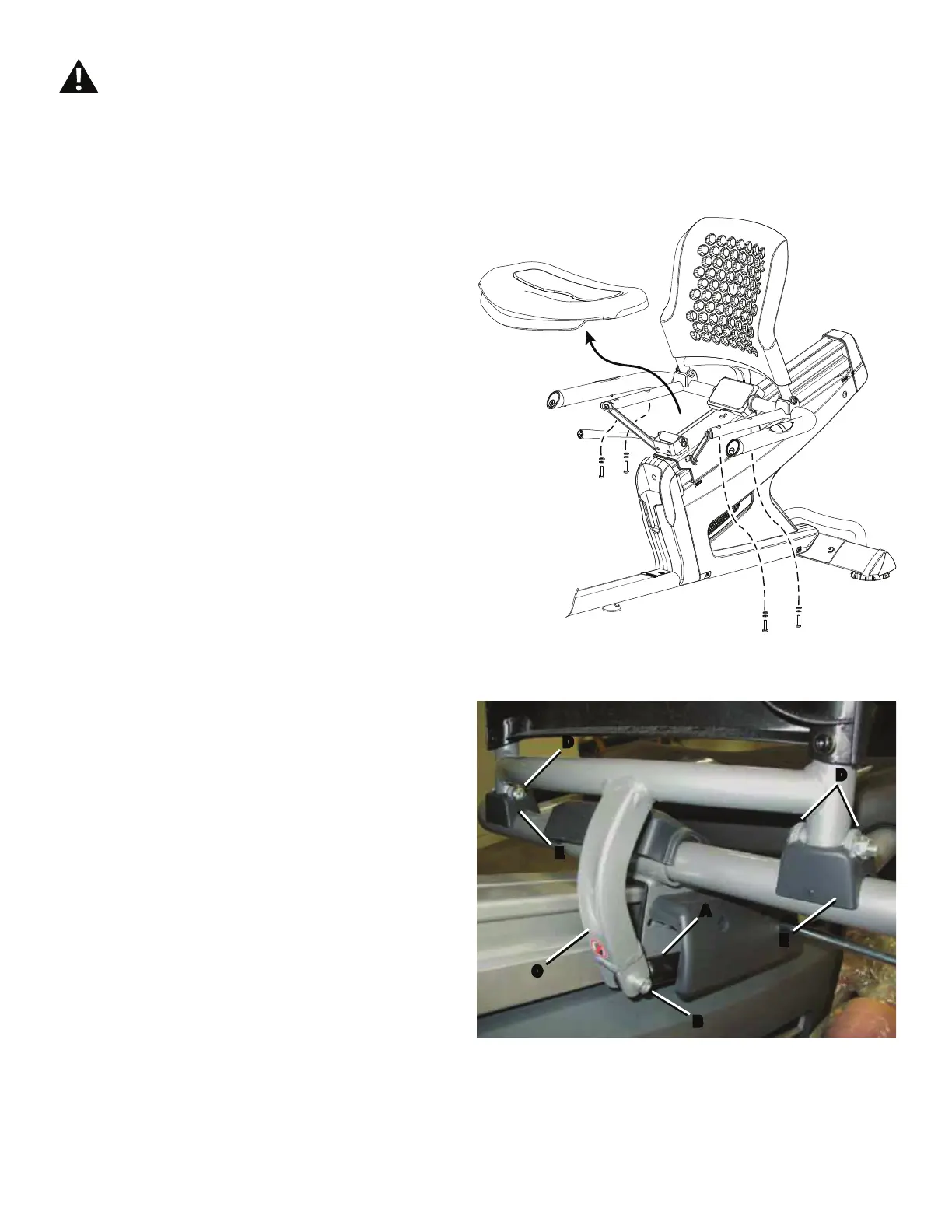

1RWH Your machine may not match the image. For reference only.
To remove only the Seat Back, start at Step 3.
1. Using a #2 Phillips Screwdriver, loosen and remove
the hardware that attaches the padded Seat Bottom to the
Seat Frame Assembly. Set the hardware safely aside for
reassembly.
2. Remove the Seat Bottom from the Seat Frame
Assembly and set it safely aside.
If you are only replacing the Seat Bottom, go to Step 9.
If you are replacing the Seat Frame Assembly, continue to Step 3.
To remove the Seat Back:
3. 8VLQJDPPKH[NH\ORRVHQDQGUHPRYHWKHEROW%
that attaches the Shock Assembly (A) and the Seat Recline
Arm (C) on the Seat Back. Set it safely aside for reassembly.
4. 8VLQJDPPKH[NH\DQGPPZUHQFKORRVHQDQG
remove the hardware (D) that attaches the Seat Back to the
Seat Frame assembly, and remove the Seat Back. Set the
Seat Back and hardware safely aside.
NOTICE: This step may require two people.
If you are only replacing the Seat Back, go to Step 9.
If you are replacing the Seat Frame Assembly, continue to Step 5.
To remove the Seat Frame Assembly:
5. Remove the Seat Pivot Shrouds (E) and set them safely
aside.
Disconnect all power to the machine before you service it.
A
B
C
D
D
E
E

Nautilus R618 Specifications

General

Resistance Levels	25
Bluetooth Connectivity	Yes
Workout Programs	29
Resistance Type	Magnetic
Display	LCD
Heart Rate Monitoring	Contact
Warranty	10 year frame, 1 year labor
