NOTICE: It is necessary to remove the Shrouds for this procedure. Refer to the “Replace the Shrouds” procedure.
It is necessary to adjust the Drive Belt tension at the end of this procedure. Refer to the “Belt Tension Adjustment” procedure.
1RWH Your machine may not match the image. For reference only.

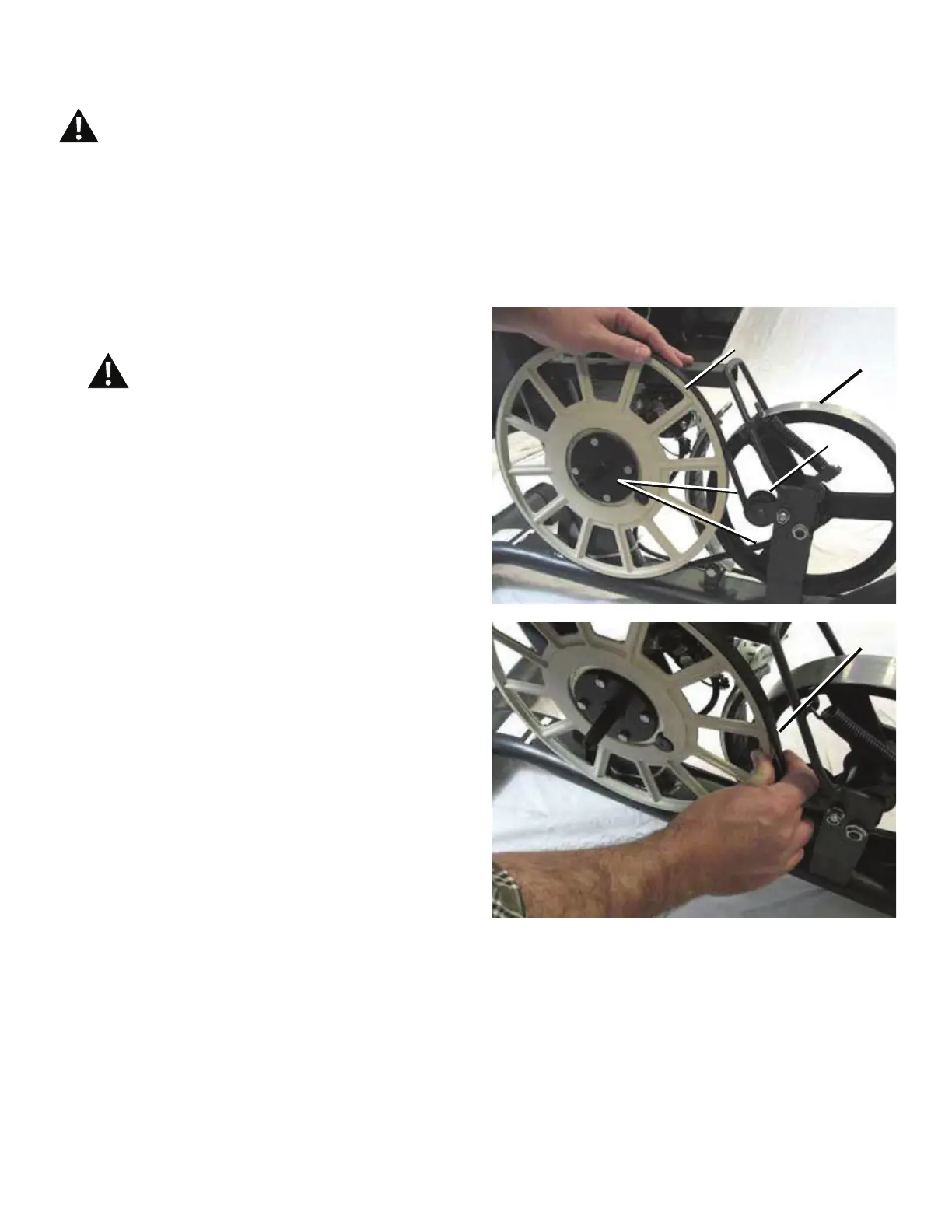

1. Carefully remove the Shrouds. Refer to the “Replace the
Shrouds” procedure in this manual.
2. Slowly turn the Drive Pulley (A) backward and carefully
HDVHWKH'ULYH%HOW%RႇWKH'ULYH3XOOH\WRWKHRXWVLGH
%HVXUHWRNHHS¿QJHUVFOHDURIDOOSLQFK
KD]DUGVDV\RXWXUQWKH'ULYH3XOOH\
Disconnect all power to the machine before you service it.
B
B
A
C
E
