42

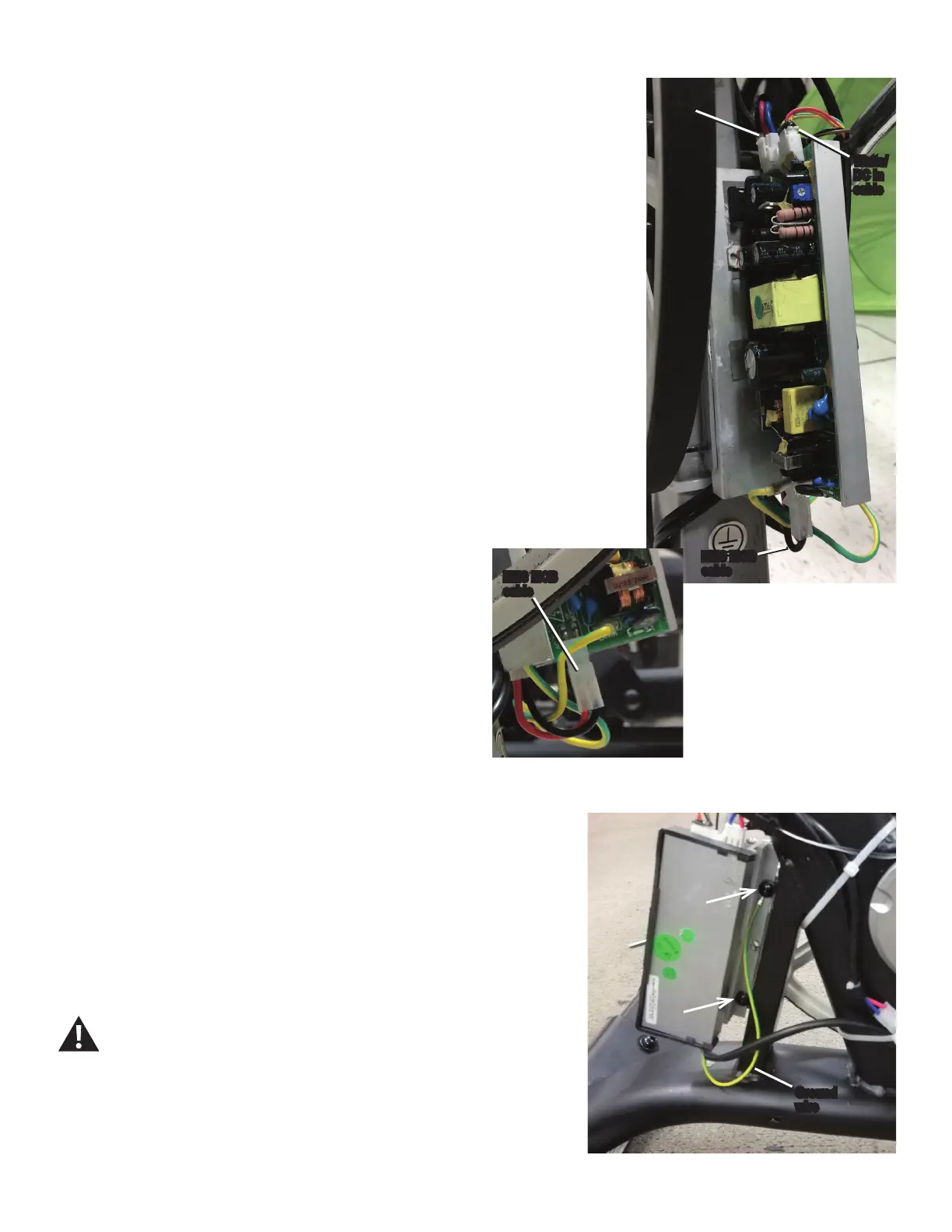

4. Carefully remove the EMS MCB Watts cover.
NOTICE: 'RQRWFULPSWKHFDEOHV
5. Disconnect the cables from the MCB Watts assembly after
noting their locations.
Note: Be sure to note where all cables attach for re-assembly.
Using a #2 Phillips screwdriver, remove the 2 indicated
screws (with arrows) that attach the MCB Watts assembly to
the Frame.
Remove the old MCB Watts assembly, and install the
new MCB assembly. Connect the cables to the MCB in their
proper locations.
Use the upper screw to secure the green ground wire to the
Frame. Be sure not to crimp any cables
Ground
wire
EMS MCB Watts - back left view
EMS MCB
cable
EMS
cable
Watts/
DC In
cable
EMS MCB
cable
To Next Page
