Nautilus T626 Service Manual

79

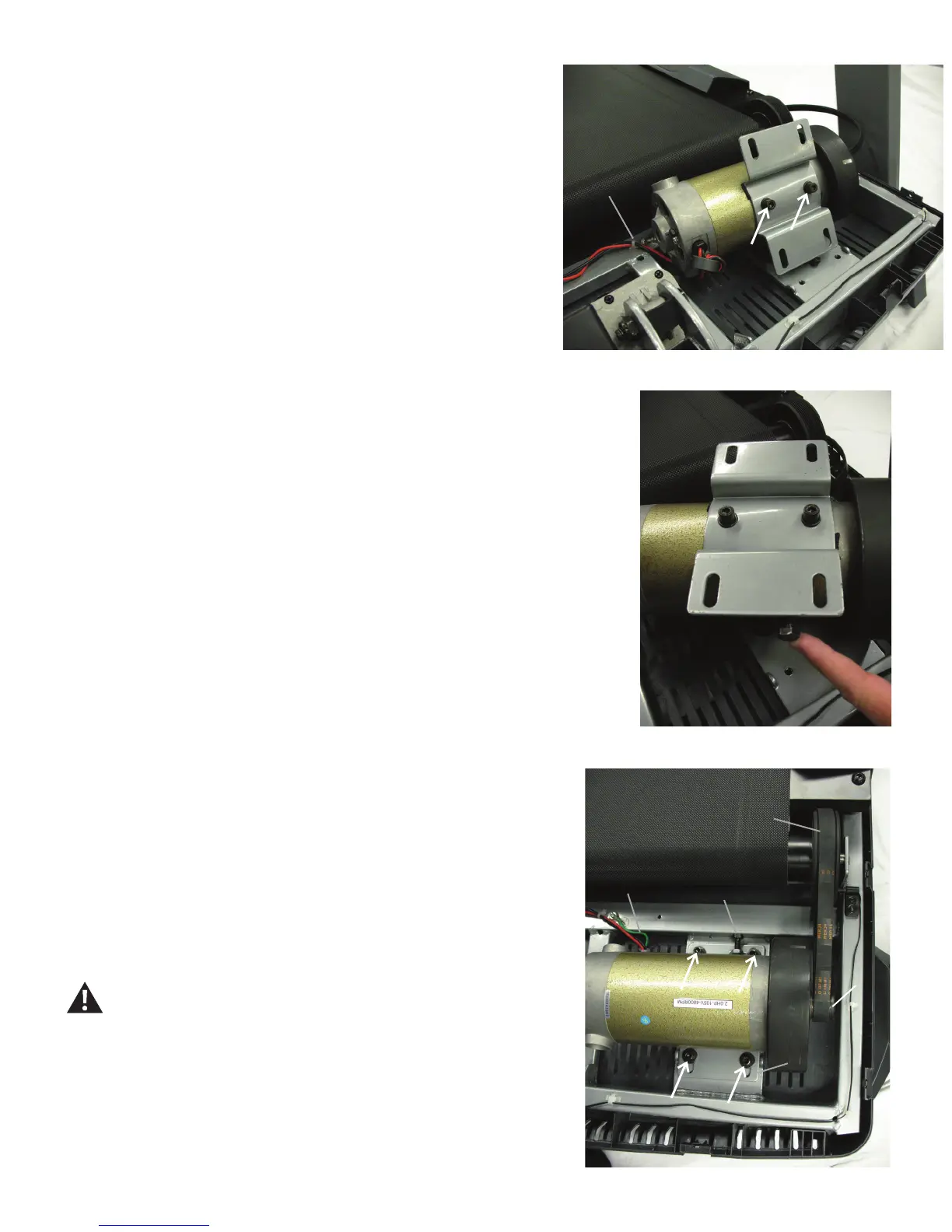

9. Using a 6mm hex wrench, remove the indicated screws from the Motor
Mount. Remove the Drive Belt and rotate the Motor Assembly exposing
the Motor Mount.
10. Cut the 3 Zip-Ties that secure the Motor Cables.
11. Using a 6mm hex wrench, remove the indicated hardware from the
Motor Mount and remove the old Motor.
12. Attach the Motor Mount to the new Motor. Be sure the Belt Tensioner
Screw is properly oriented toward the rear of the machine when the Motor
is re-installed.
13.LightlyattachtheMotorAssemblytotheFrame.Besuretoonlynger
tighten the hardware.
14. Loop the Drive Belt onto the Motor Pulley. With the Drive Belt looped
onto the Motor, carefully roll the Drive Belt onto the Drive Pulley.
15.WrapthenewDriveBeltaroundtheMotorPulley.StarttheDriveBelt
on the Drive Pulley and roll it in a clockwise motion. Be sure the Belt does
not come off of the Motor Pulley.
Keepngersoutofanypinchopportunitieswhenturningthe
Pulleys.
16. Roll the Drive Pulley clockwise until the Drive Belt is fully installed.
ContinuetorolltheBeltforwardwhileaddingsidepressurewithngersto
align as necessary.
Motor Cables
Zip-Tie
MotorGround
Wire
BeltTensionerScrew
DriveBelt
Motor
Mount
Motor
Pulley

Nautilus T626 Specifications

General

Quantity per pack	1 pc(s)
Foldable	Yes
Incline range	0 - 15 %
Maximum speed	19.3 km/h
Minimum speed	0 km/h
Product color	Black, Grey
Number of programs	26
Maximum user weight	136 kg
Backlight color	Blue

Weight and Dimensions

Width	- mm
Weight	- g
Running area (W x L)	20 x 60 mm
Running belt thickness	2 mm
Running deck thickness	25 mm
