TOOLS REQUIRED
9
⁄
16
˝ Wrench •
1
⁄
2
˝ Wrench • Phillips Screwdriver •
3
⁄
16
˝ Hex Key (provided)
LOCATE THE HARDW
ARE BAG SA2023 CONTAINING:
Part # Description. Qty.
HH2102 Button Head Bolt 5/16” X 1” 8
MM2105 Nylon Shoulder Washer 4
HH2168 Hex Head Bolt 5/16” X 1 1/2” 2
HH2154 Black Flat Washer 12
HH2095 3/8 Star Washer 4
HH2153 Hex Head Bolt 5/16” X 5” 2
HH2001 Hex Key Wrench 1
MM0087 Hex Key Clip 1
HH2217 Phillips Head screw 7

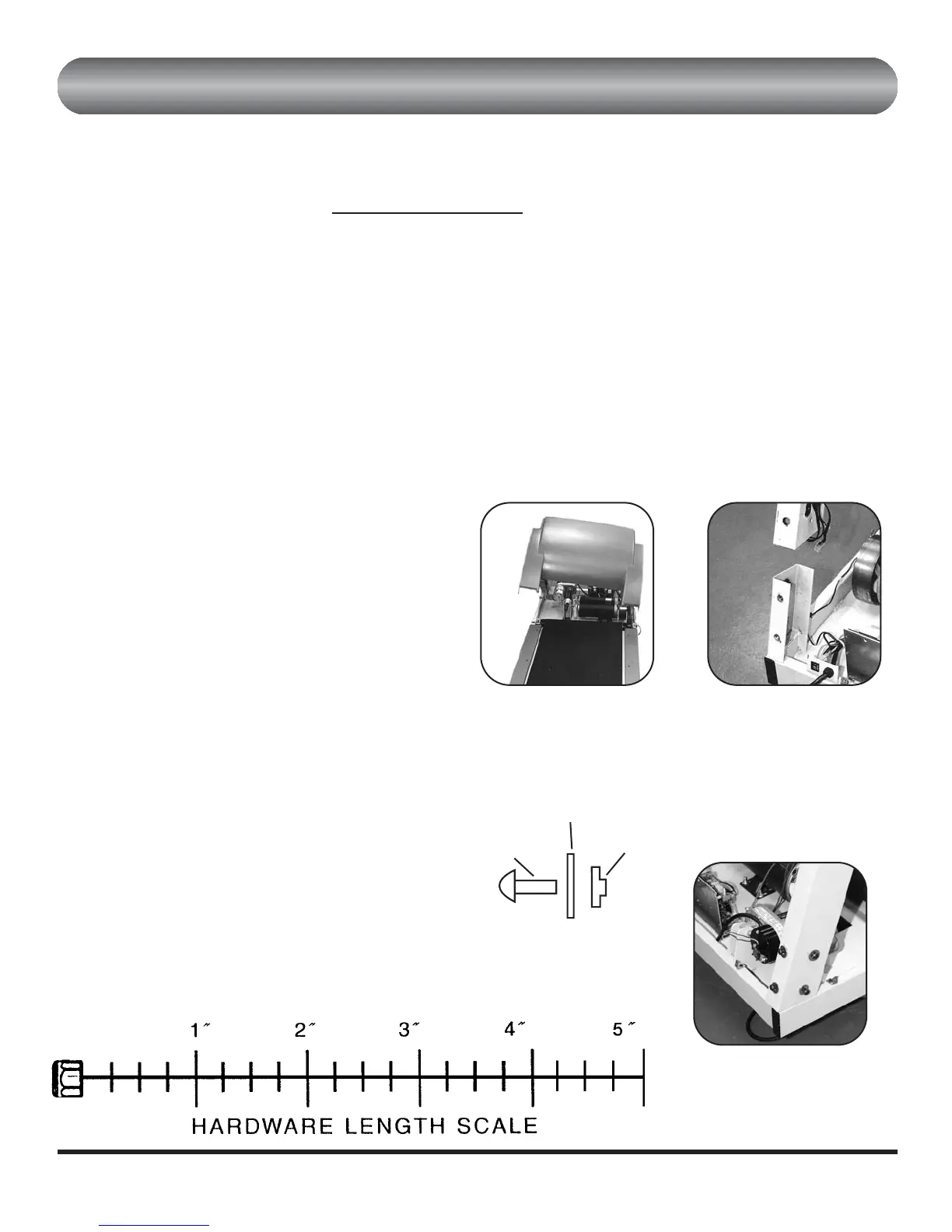

FIGURE 1
FIGURE 2
FIGURE 3
STEP 1
Remove contents from box: (1) upright assembly, (2)
handrails, (1) hardware bag, (1) main base.
STEP 2
Remove motor cover to expose the motor (see Figure 1).
STEP 3
Install the upright assembly onto the upright brackets
on the treadmill frame (see Figure 2). Caution: Use care
not to damage the wires in the right upright.
STEP 4
Please note: the left upright is attached to the frame
differently then the right upright. If you stand on the
treadmill as if you were walking on it, your left hand
is on the left side of the treadmill, your right hand is on
the right side of the treadmill.
The left side is attached with clear nylon shoulder
washers. The right side is attached with metal star
washers.
CAUTION: DO NOT PLUG IN POWER CORD UNTIL
FINAL ASSEMBLY IS COMPLETE AND MOTOR COVER IS INSTALLED.
1” Button head
Black Flatwasher
Shoulder washer
*Make sure that shoulder washers are
seated into holes on upright tubes before
tightening.
Left Upright
To Next Page
