SECTION1–ENGINESYSTEMS

COMPONENTLOCATION-INTAKESIDE

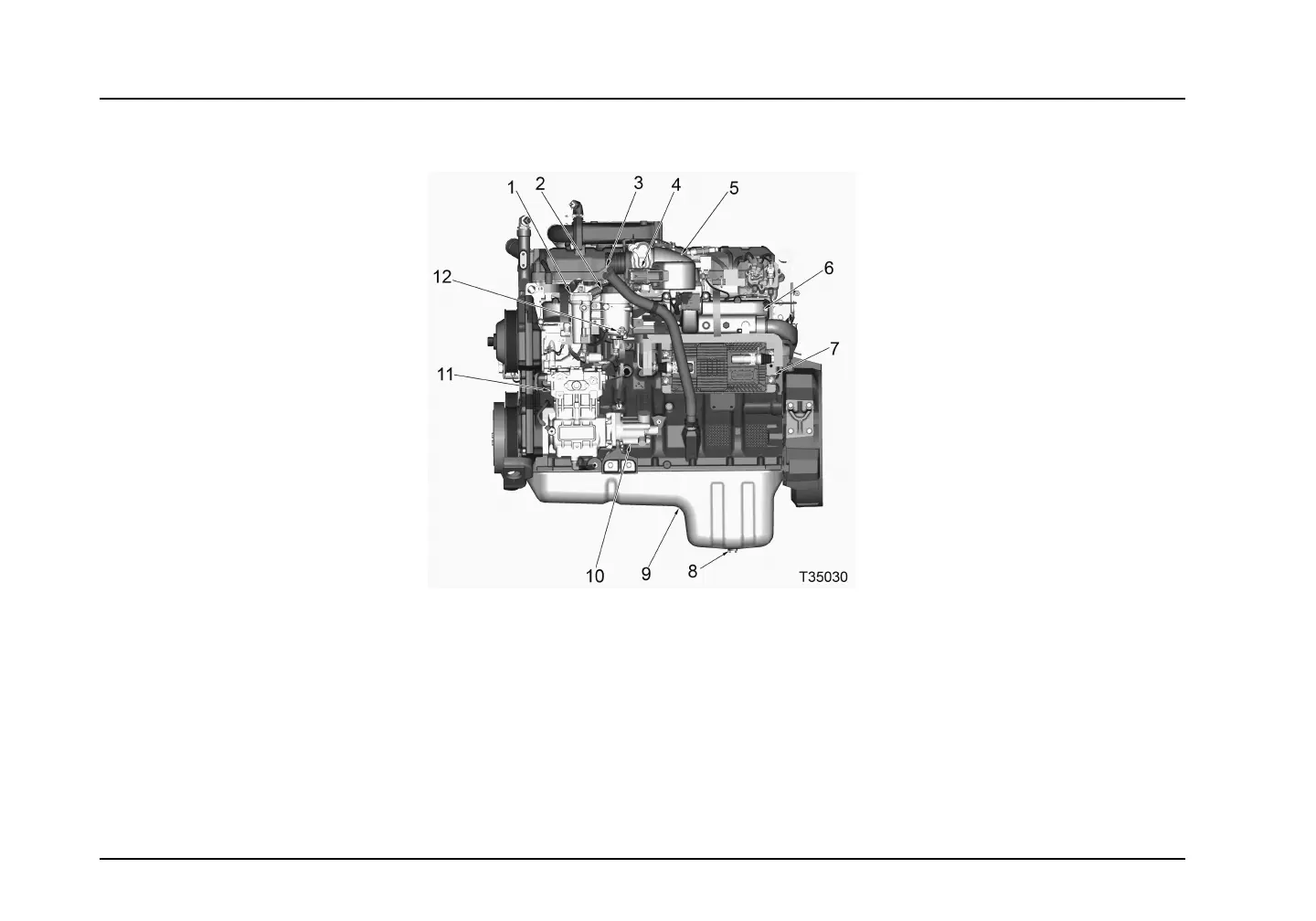

Figure5Intakeside

1.Electricfuelpump(fuelstrainerlocation)

2.Fuellterassembly

3.Oillevelgauge

4.ExhaustGasRecirculation(EGR)valve

5.AirandEGRmixerduct

6.Intakemanifold

7.EngineControlModule(ECM)

8.Oilpandrainplug

9.OilPan

10.Powersteeringpump

11.Aircompressorassembly

12.Waterdrainvalve

Page26
