SECTION1–ENGINESYSTEMS
COMPONENTLOCATION-EXHAUSTSIDE

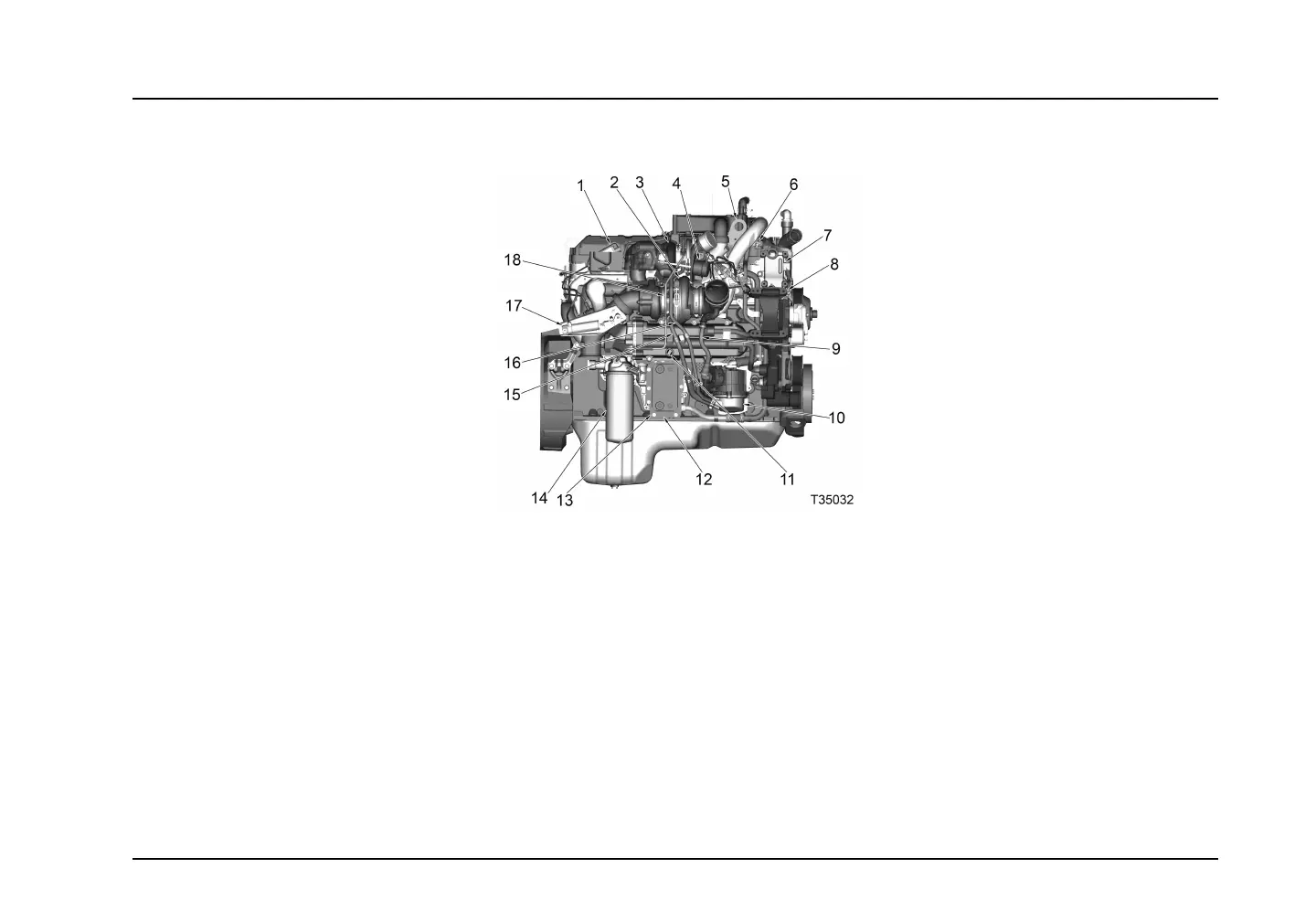

Figure6Exhaustside
1.Exhaustbrakevalveassembly
2.Low-pressureturbocharger
3.High-pressureturbocharger
4.Turbochargerwastegateactuator
5.Liftingeye
6.Vehicleheaterport
7.Watersupplyhousingrefrigerant
compressormount
8.Alternatorbracket
9.Crankcasebreatheroutlettube
10.Crankcasebreatherassemblywith
turbine
11.ExhaustGasRecirculation(EGR)coolant
drainplug
12.Coolantdrainplug
13.Oilcoolermodule
14.Oillter
15.Low-pressureturbooildraintube
16.High-pressureturbooildraintube
17.Exhaustbrakeassembly
18.Turbochargeroilsupplytube
Page27
