SECTION5–MAINTENANCESCHEDULEANDSERVICEPROCEDURES

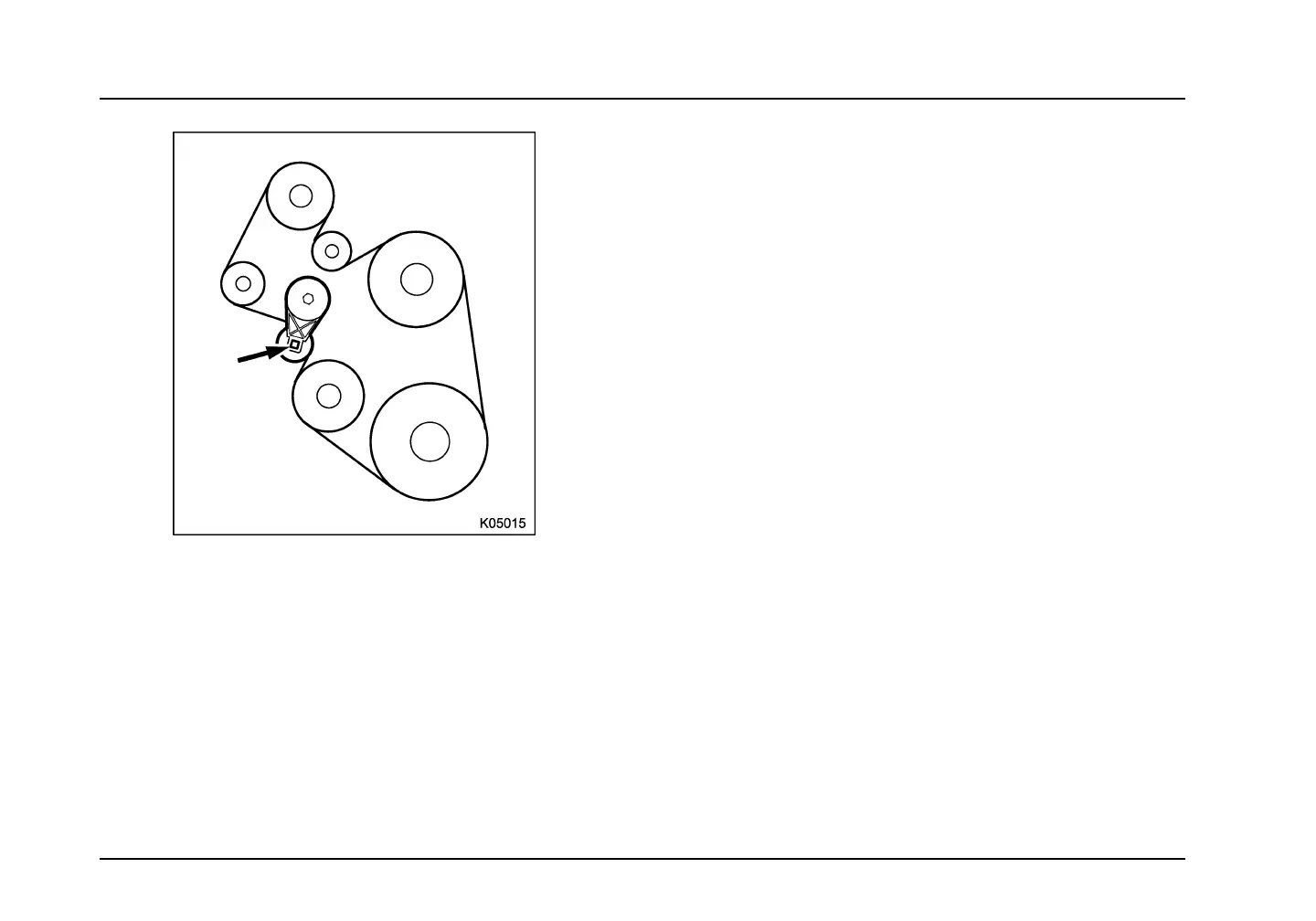

Figure36Squareholeinautotensioner
BeltInstallation
1.Attacha1/2inchdrivebreakerbartosquareholeinauto
tensioner.
2.Pullthebreakerbarclockwiseandinstallthebeltover
theautotensionerpulleyandotherpulleys.
3.Slowlyreleasethebreakerbar;theautotensioner
automaticallyadjusts.
4.Removethebreakerbar.
AirIntakePipingandClamps
Inspecthoses,pipes,andclamps.Foranyofthefollowing
conditions,installnewparts:
•Loosehosesorclamps,tightenorreplaceasrequired.
•Rupturedhoses
•Crackedaircleanerhousing
Page74
