SECTION1–ENGINESYSTEMS

COMPONENTLOCATION-REAR

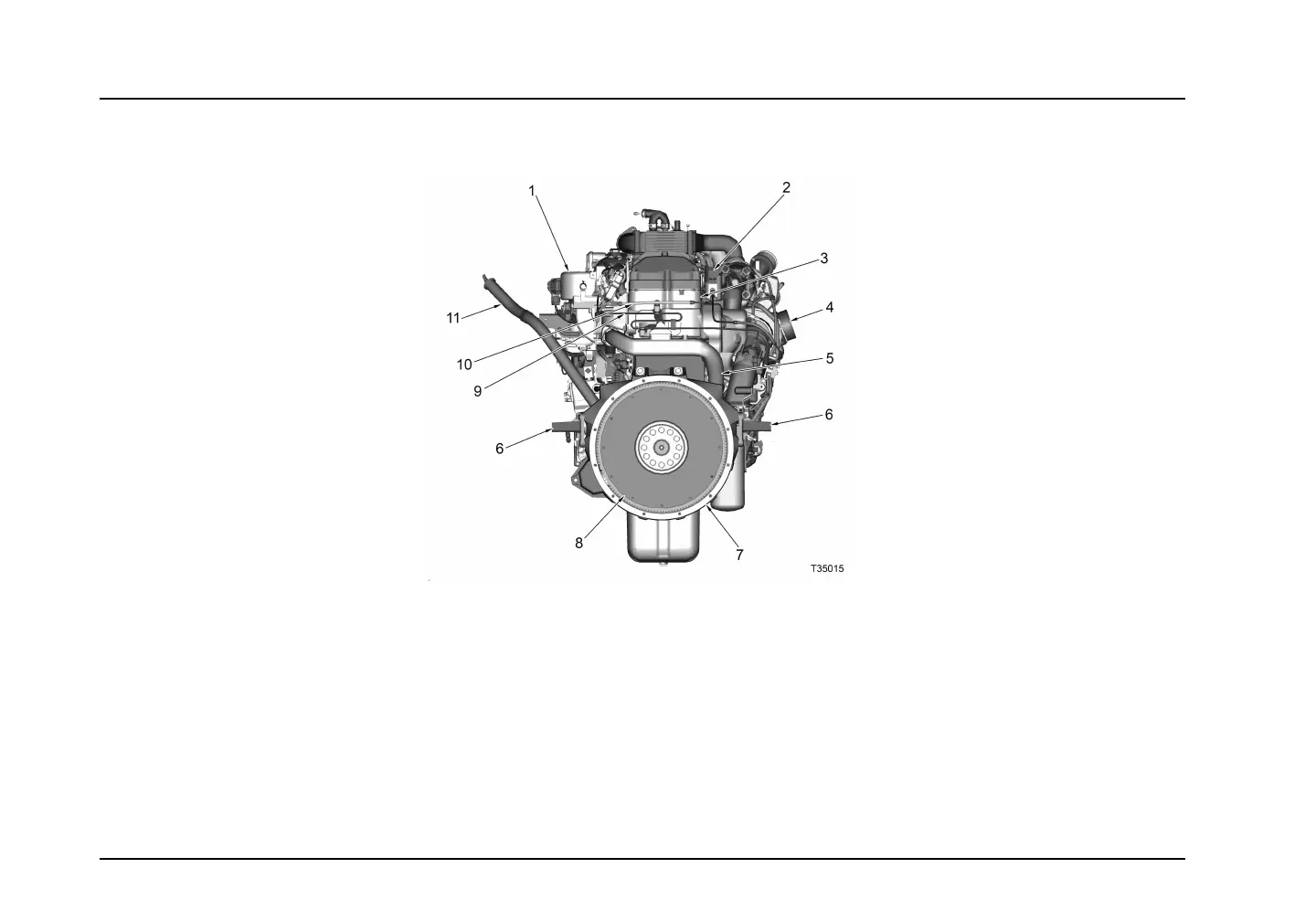

Figure7Rear

1.AirandExhaustGasRecirculation(EGR)

mixer

2.Exhaustbrakevalve

3.Cylinderhead

4.Turboairinletduct

5.EGRcrossovertubeassembly

6.Rearenginemountingbracket(2)

7.Flywheelhousing

8.Flywheel

9.Injectorfeedtubeassembly

10.Exhaustbrakevalvesupplyhose

11.Oillltube

Page28
