SECTION5–MAINTENANCESCHEDULEANDSERVICEPROCEDURES

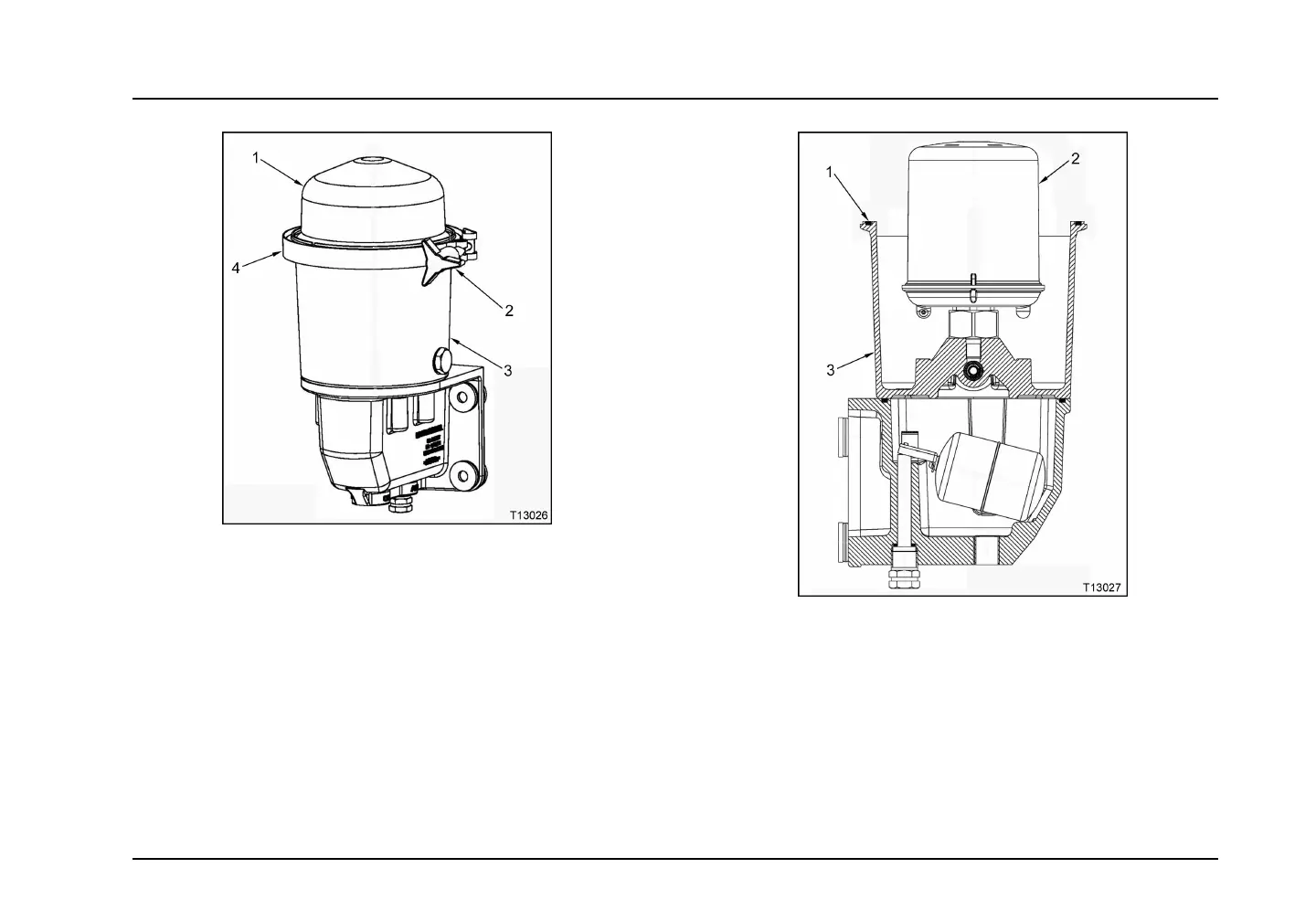

Figure33Centrifugelterassembly

1.Coverassembly

2.Bandclamphandle

3.Bodyassembly

4.Bandclamp

Figure34Centrifugerotor

1.O-ring

2.Rotor

3.Bodyassembly

Page71
