NC HT1.0 - Maintenance Decal Descriptions

10
Maintenance Decal Descriptions
The machine is fitted with a maintenance decal. It is important that before using the ma-
chine the decal is understood and all the checks have been carried out. The decal must be
clean and readable at all times. If the decal needs to be replaced it can be obtained from
the NC Spares department.

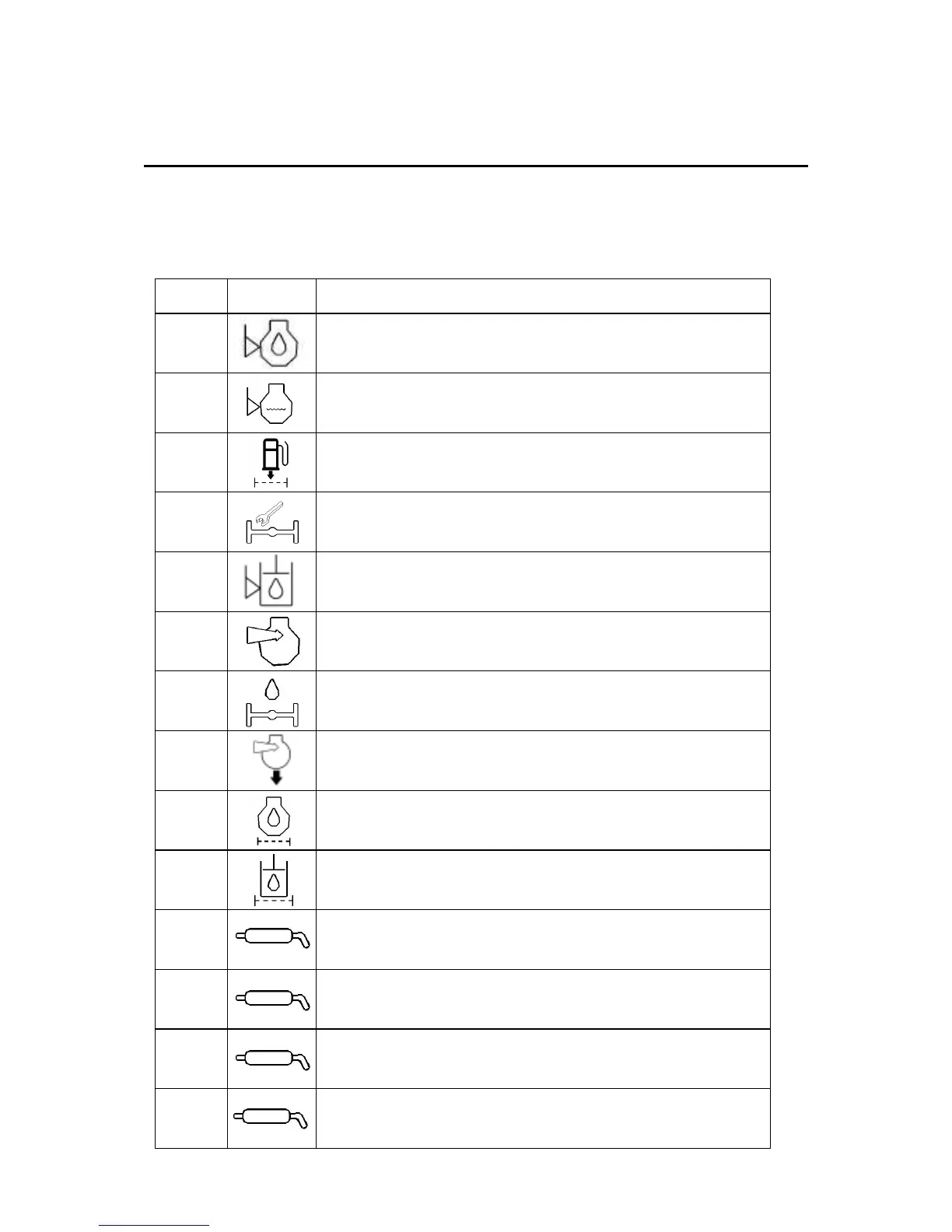

Ref No. Symbols Description.
1 Engine oil level.
2 Engine coolant level.
3 Fuel and water sedimentor.
4 Axle service points.
5 Hydraulic oil level.
6 Air filter restriction indicator.
7 Axle oil.
8 Check evacuator and drain.
9 Engine oil filter.
10 Hydraulic return to tank filter.
11 Grease point - Skip pivot pins.
12 Grease point - Hi lift arm pins.
13 Grease point - Parallel link arm pins.
14 Grease point - Tipping ram pins.
