Maintenance
TOWING PROCEDURE
OPENING THE HIGH PRESSURE CIRCUIT
•

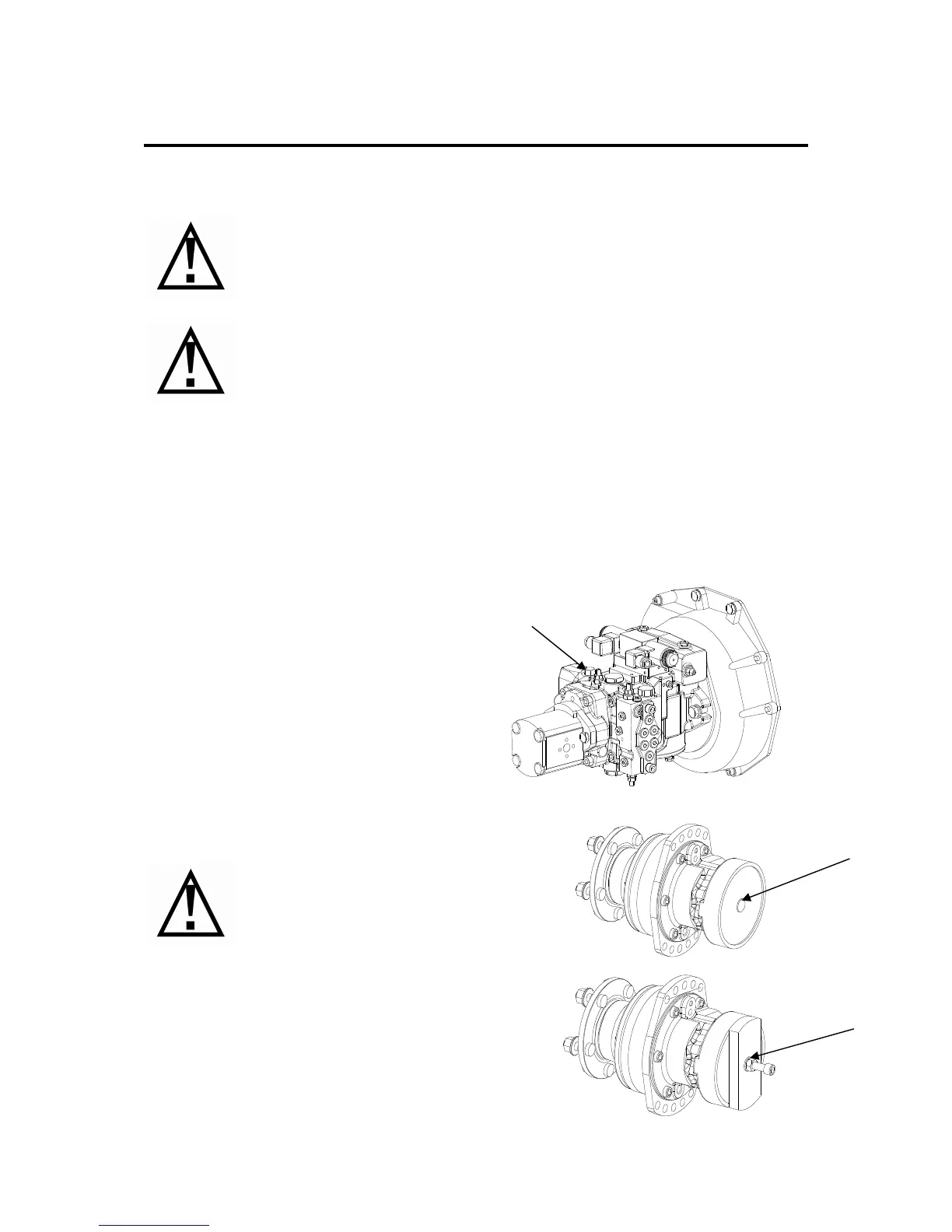

Unscrew bypass valve (A) by 2 turns
RELEASING PARKING BRAKES
•
Remove & dispose of the rubber plug from the
brake protector (B).
•
Place the 25mm steel flat over the drum.
•
Tighten the bolt to the bottom of the threading in
the wheel motor.
•
Tighten the nut (C), this pulls the brakes off the
drum. until the motor shaft turns freely, while
holding the screw.
•
After releasing always insert a new rubber plug.
The dumper may only be towed using suitable towing equipment such as a
towing bar or cable. These must be fixed to either the towing hitch
(optional) or the tying down eyes at the front or rear axle.
The dumper may only be towed when the following steps have been
carried out. Failure to observe these tasks will invalidate any remaining
warranty and seriously damage the hydrostatic drive pump and wheel
motors.
•
Open the high pressure circuit on pump
•
Parking brakes released on both wheel motors
•
Max Towing speed: 2 Kmph
•
Max towing distance: 1 Km
B
C
Ensure the dumper is on a level surface
and that the wheels are chocked to
prevent it rolling away.
A
