X350 and X550 User Manual
Page 12
Connect Peripheral Devices
Connect each access device to a port on the PCI card using high-quality Cat 5e or
shielded Cat 6 cables. These must be standard, straight (not crossover) cables.
Maximum cable length between the X-series card and an access device is:
Standard Category 5e UTP cable: up to 5 meters
Standard Category 6 STP or FTP cable: up to 10 meters
WARNING: You must NOT attach any Ethernet networking equipment, such as a hub,
switch or router, between the access device and the PCI card. The signals being sent
from the X350/X550 PCI card to the XD2 device are NOT Ethernet.
Connect the desired peripheral devices to each XD2 access device. If you plan to use
any USB devices, connect these directly to the host PC – these can then be assigned to
each XD2 station with the vSpace software.

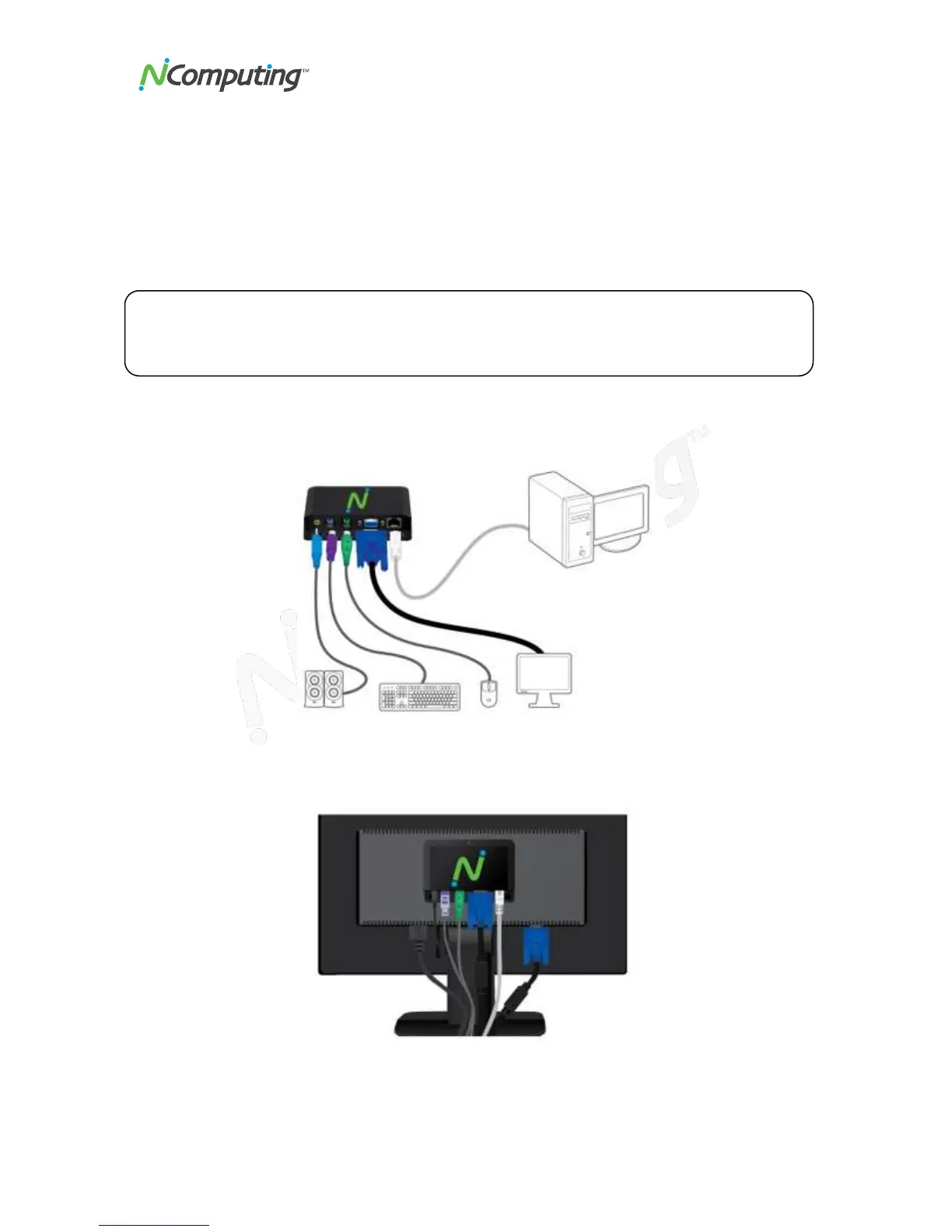

Using two screws (provided) you can attach the XD2 to the back of an LCD monitor that
has VESA-compliant mounting holes, as shown below.
