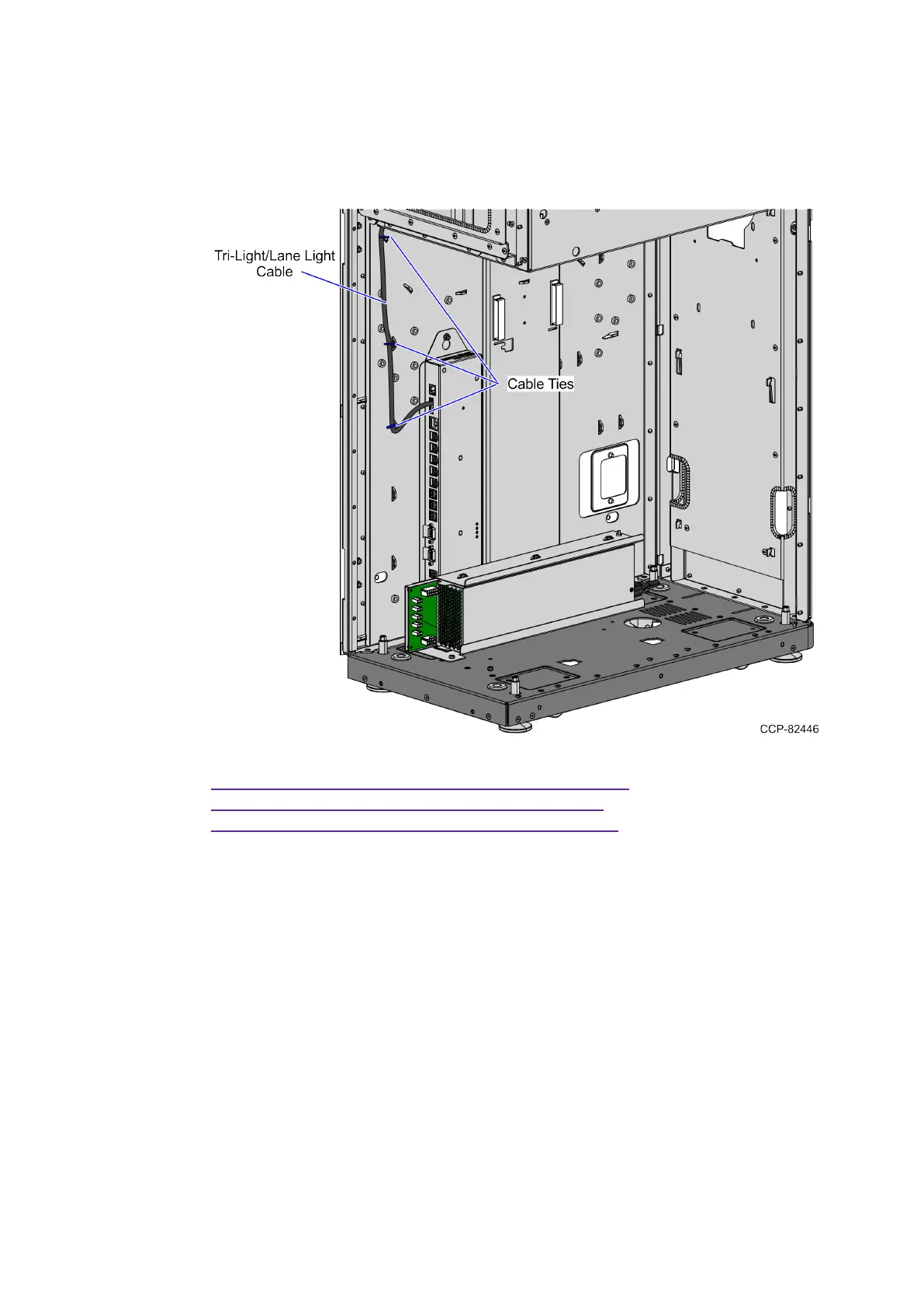

2. Route the Tri-Light/Lane Light Cable by doing the following:
a. From the corner cable access hole, route the cable down the Core Cabinet
wall and use cable ties to secure the cables on the bridge lances.
b. Connect the cable to the Tri-Light/Lane Light port of the I/O Box.
3. Route the LANCable. Depending on the configuration, refer to the following:
l
Routing the LAN Cable: No-Bag Unit on the next page
l
Routing the LANCable: Left-Hand Unit on page21
l
Routing the LANCable: Right-Hand Unit on page23
