NCR 7357 - Routing the LAN Cable: No-Bag

Confidential and proprietary information of NCRVoyix Corporation.
Unauthorized use, reproduction and/or distribution is strictly prohibited.
28
Routing the LANCable: No-Bag
To route the LANCable, follow these steps:

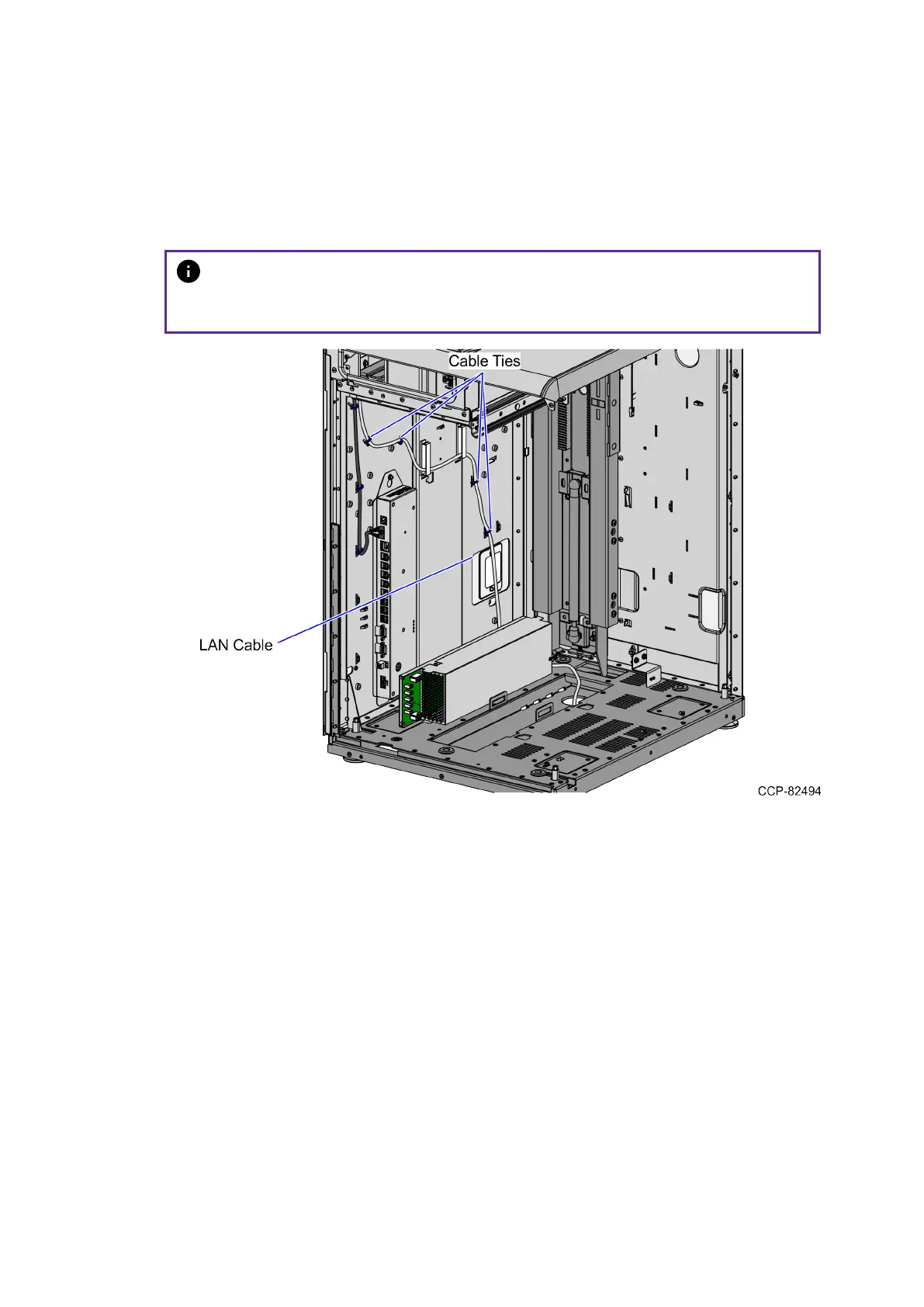

1. From the corner cable access hole, route the cable down the Core Cabinet wall and
down the bottom exit hole, as shown in the image below.
Note
Pass the cable through cable clamps and secure the cable on the bridge
lances using cable ties.
2. Connect the cable to the PoE Switch.
