Left-Hand Unit: 7358 R6L Plus

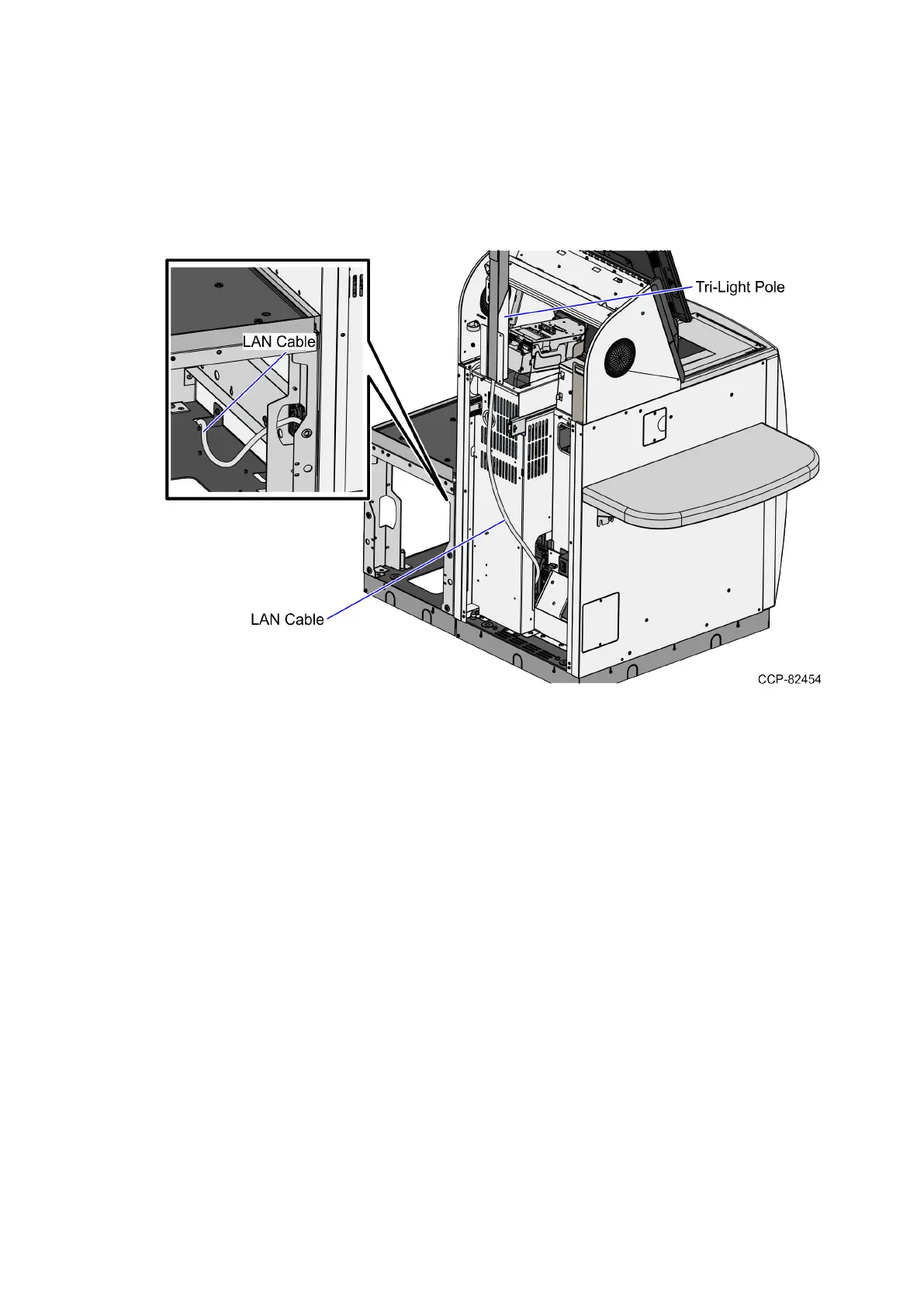

To route the LANCable, follow these steps:
1. From the Tri-Light/Lane Light Pole, route the cable down the rear of the Core
Cabinet, through the side cable exit hole and into the Bagwell
2. Pass the cable through the bottom cable exit hole of the Bagwell.
3. Connect the cable to the PoE Switch.
