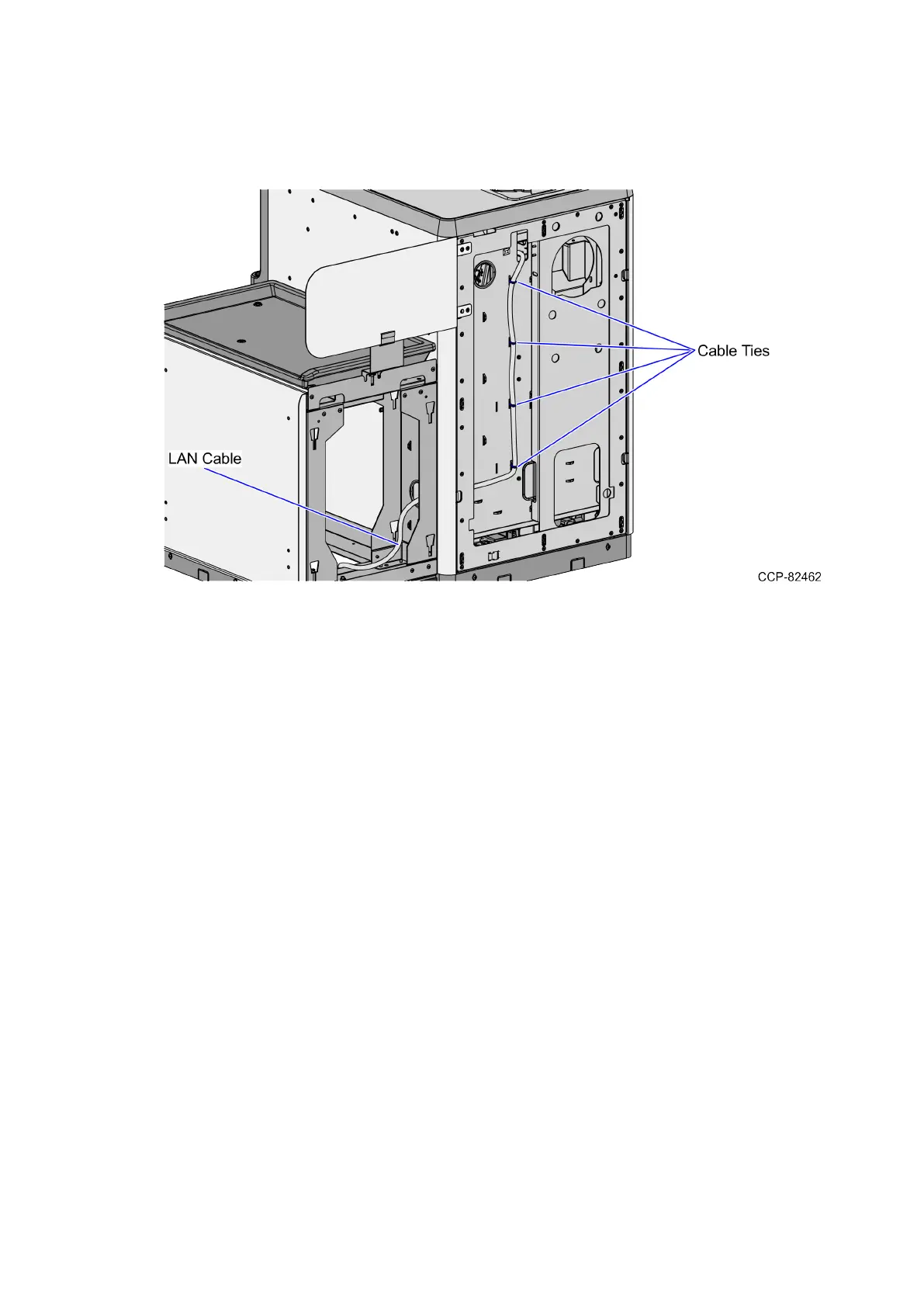

2. From the rear cable access hole, route the cable down the rear of the Core Cabinet
and into the Bagwell through the left side cable exit hole. Use cable ties to secure
the cable to the lance bridges.
3. Continue to route the cable out through the bottom cable exit hole and connect it to
the PoE Switch.
