41

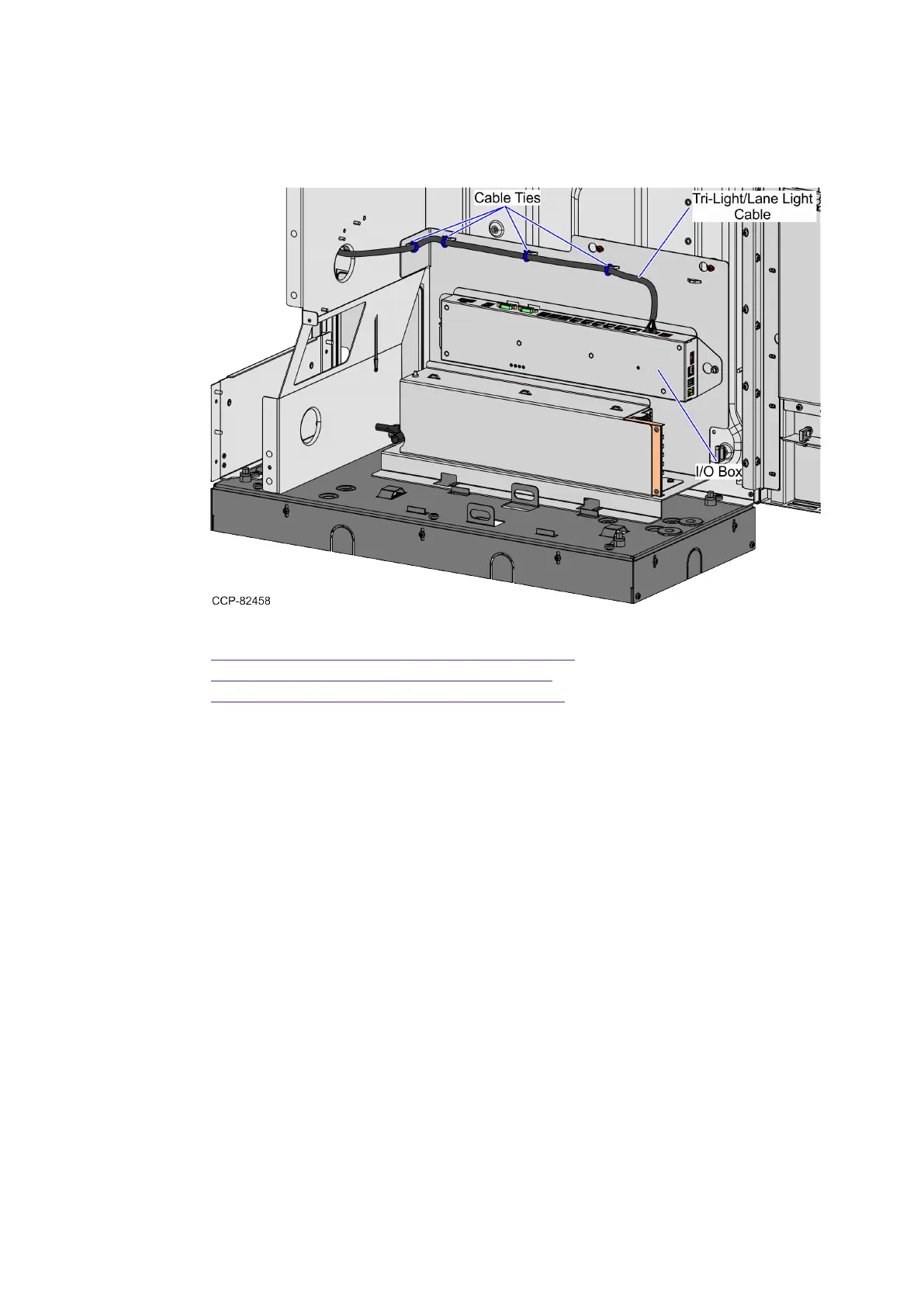

b. Connect the cable to the Tri-Light port of the I/OBox, as shown in the image
below.
c. Secure the cable to the lance bridges using cable ties.
2. Route the LAN Cable. Depending on the unit configuration, refer to the following:
l
No-Bag Unit: 7357 R6LNPlus on the next page
l
Left-Hand Unit: 7357 R6LNPlus on page44
l
Right-Hand Unit: 7357 R6LNPlus on page45
