47

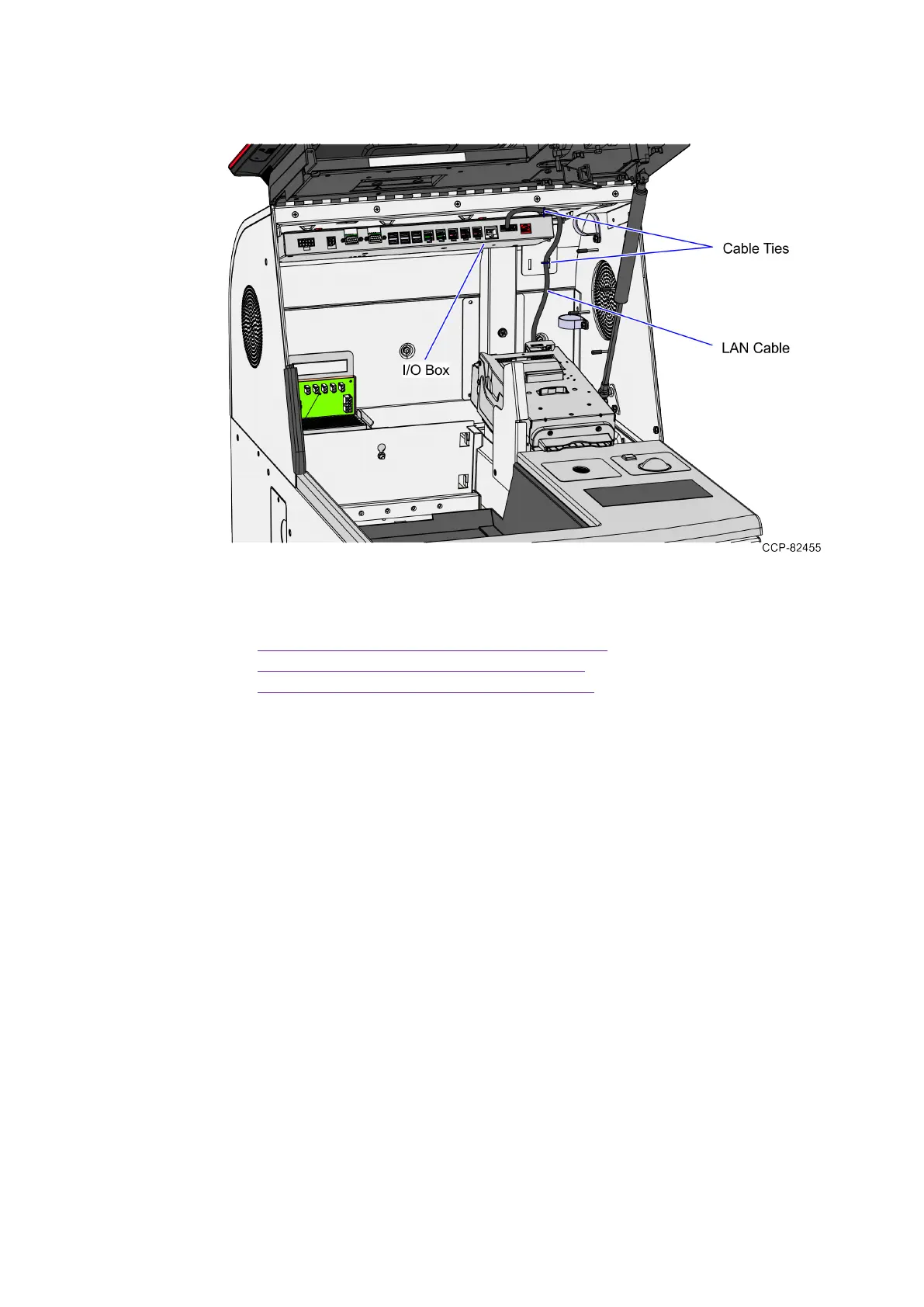

b. Secure the cable to the Upper Cabinet frame using cable ties.
c. Connect the cable to the Tri-Light/Lane Light port of the I/O Box.
d. Route the LANCable. Depending on the unit configuration, refer to the
following:
l
No-Bag Unit: 7358 R6L Plus on the next page
l
Left-Hand Unit: 7358 R6L Plus on page50
l
Right-Hand Unit: 7358 R6L Plus on page51
