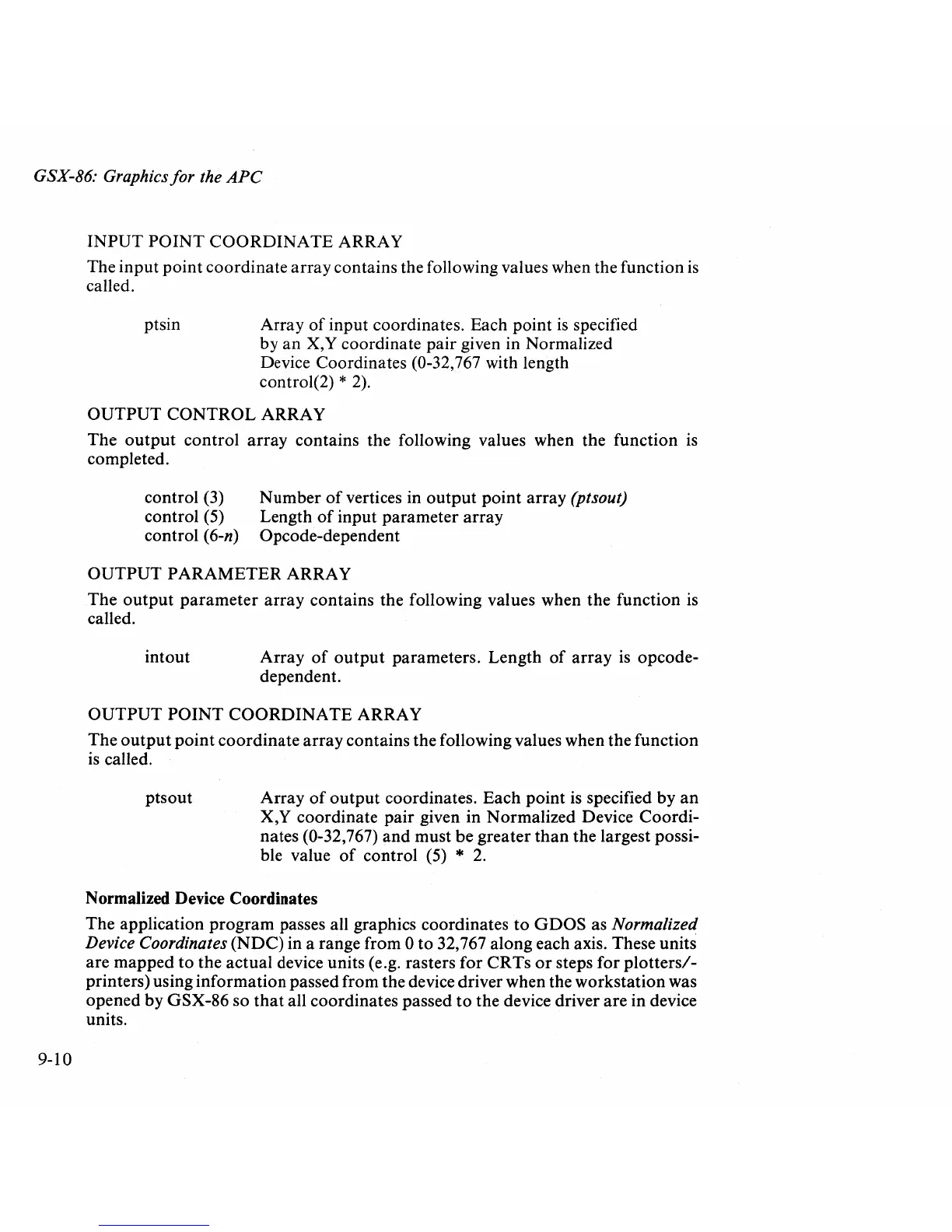

GSX-86: Graphics
for
the
APC
9-10
INPUT
POINT
COORDINATE
ARRAY
The input
point
coordinate
array
contains the following values when the function
is
called.
ptsin
Array
of
input coordinates. Each point
is
specified
by
an
X,Y coordinate
pair
given in Normalized
Device Coordinates (0-32,767 with length
control(2)
*
2).
OUTPUT
CONTROL
ARRAY
The
output
control
array
contains the following values when the function
is
completed.
control (3)
control (5)
control
(6-n)
Number
of
vertices in
output
point array (ptsout)
Length
of
input parameter array
Opcode-dependent
OUTPUT
PARAMETER
ARRAY
The
output
parameter
array
contains the following values when the function
is
called.
intout
Array
of
output
parameters. Length
of
array
is
opcode-
dependent.
OUTPUT
POINT
COORDINATE
ARRAY
The
output
point
coordinate
array
contains the following values when the function
is
called.
ptsout
Array
of
output
coordinates. Each point
is
specified by
an
X, Y coordinate pair given in Normalized Device Coordi-
nates (0-32,767)
and
must
be
greater
than
the largest possi-
ble value
of
control (5) *
2.
Normalized Device Coordinates
The application
program
passes all graphics coordinates
to
G DOS as Normalized
Device Coordinates
(NDC)
in a range from 0
to
32,767 along each axis. These units
are
mapped
to
the actual device units (e.g. rasters
for
CRTs
or
steps for
plotters/-
printers) using information passed from the device driver when the workstation was
opened by GSX-86 so
that
all coordinates passed
to
the device driver are in device
units.
