-21-
Service Manual CP-785F
XTAL_IN
Audio PLL
D/A
D/A
FM1/AM
Demodulator
& NICAM
Decoder
Sound IF
FM2
NICAM A
NICAM B
IDENT
ANA_IN1+
Mono
MONO_IN
SC1_IN_L
SCART1
SC1_IN_R
SC2_IN_L
SCART2
SC2_IN_R
LOUD-
SPEAKER L
LOUD-
SPEAKER R
D/A
SCART1_L
SCART1_R
SCARTL
SCARTR
SCARTR Switching Facilities
D/A
A/D
A/D
DSP
SCART
SC1_OUT_R
SC1_OUT_L
Loudspeaker
DACM_L
DACM_R
XTAL_OUT
TV standards
TVsystem Position of sound carrier(MHz) Sound modulation Color system Remark
B/G 5.5 / 5.7421875 FM Stereo PAL Applied
B/G 5.5 / 5.85 FM-Mono / NICAM PAL Applied
L 6.5 / 5.85 AM - Mono / NICAM SECAM-L N.A
I 6.0 / 6.552 FM-Mono / NICAM PAL N.A
D/K 6.5 / 6.2578125 D/K1 FM Stereo SECAM-East
6.5 / 6.7421875 D/K2 N.A
6.5 / 5.85 D/K-NICAM FM-Mono / NICAM

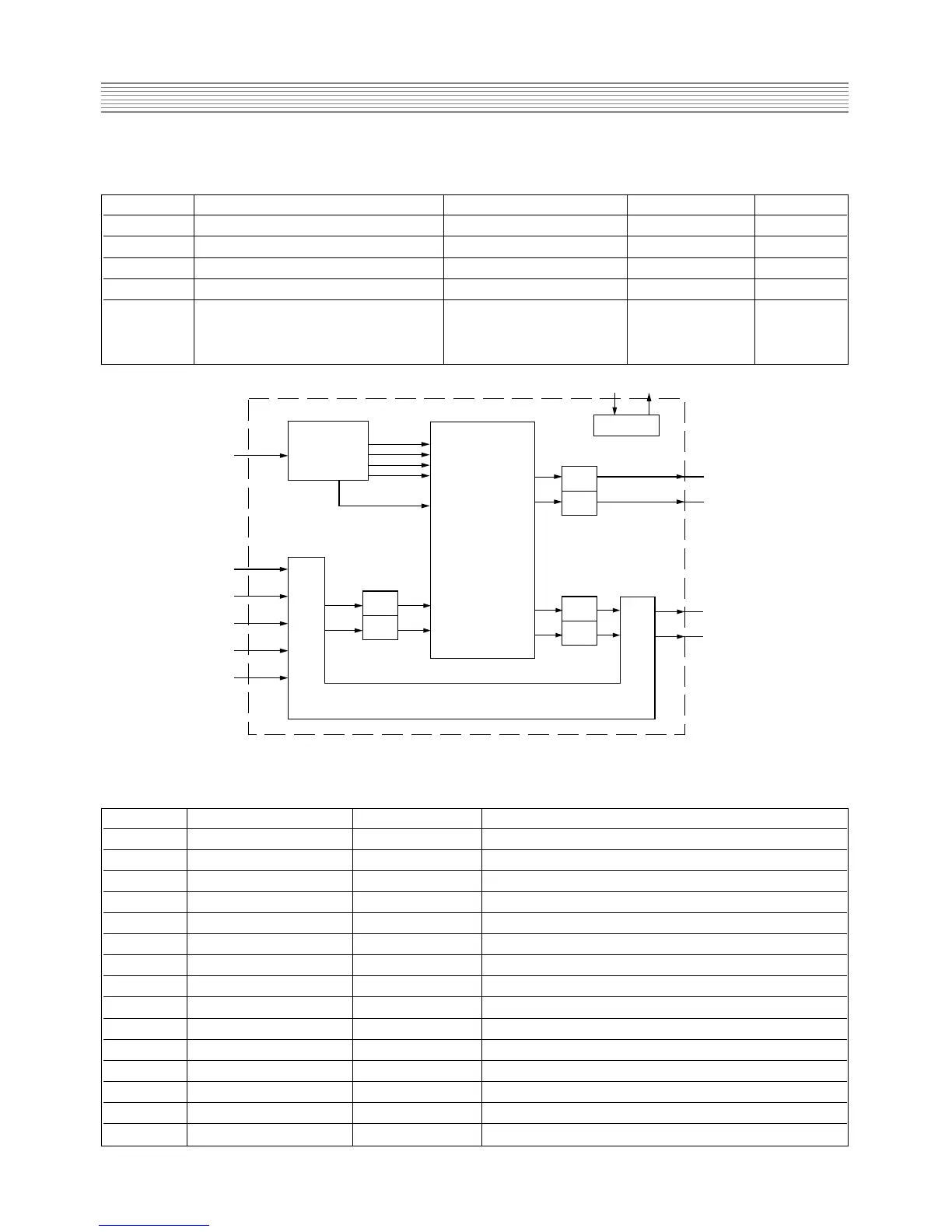

Architecture of MSP3415D
Pin connections and short description
Pin No. Pin Name Type Short description
1 TP Out Test pin
2 NC Not Connected
3 NC Not Connected
4 TP Out Test pin
5 TP Out Test pin
6 ADR_SEL In I2C bus Address select
7 STANDBYQ In Standby ( Low-active)
8 NC Not Connected
9 I2C_CL In / Out I2C Clock
10 I2C_DA In / Out I2C data
11 TP In / Out Test pin
12 TP In / Out Test pin
13 TP Out Test pin
14 NC Not Connected
15 TP Out Test pin
