Service Manual CP-785F
4-3 TDA894xJ family Stereo Audio Amplifier
The TDA8946J is a dua-channel audio power amplifier with an output power of 2 x 7W at an 8
ohm load and a 12 V supply. The circuit contains two Bridges Tied Load (BTL) amplifiers with
an all-NPN output stage and standby/mute logic. The TDA8946J comes in a 17-pin DIL power
package.
Features
Few external components
Fixed gain
Standby and mute mode
No on/off switching plops
low standby current
High supply voltage ripple rejection
Outputs short-circuit protected to ground, supply and across the load
Thermally protected

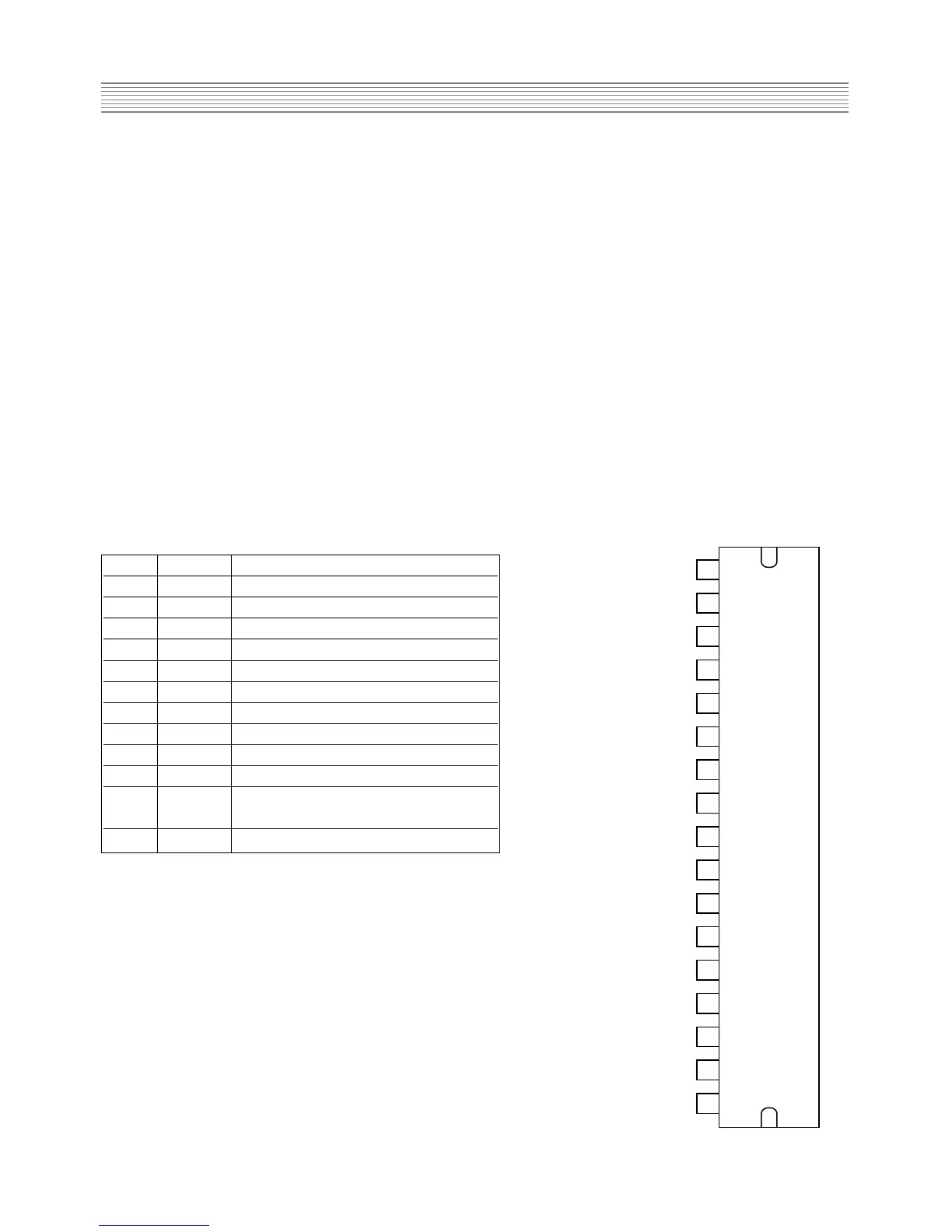

Pin description
Pin Symbol Description
1 OUT- negative loudspeaker terminal 1
2 GND1 ground channel 1
3 Vcc1 supply voltage channel 1
4 OUT1+ positive loudspeaker terminal 1
5 n.c. not connected
6 IN1+ positive input1
7 n.c. not connected
8 IN1- negative input1
9 IN2- negative input2
10 MODE mode selection input
11 SVR half supply voltage decoupling
(ripple rejection)
12 IN2+ positive input2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
MBK936
OUT1-
GND1
Vcc1
OUT1+
n.c.
IN1+
n.c.
IN1-
IN2-
MODE
SVR
IN2+
n.c
OUT2+
GND2
Vcc2
OUT2-
TDA8946J
