-3-
Service Manual CP-785F

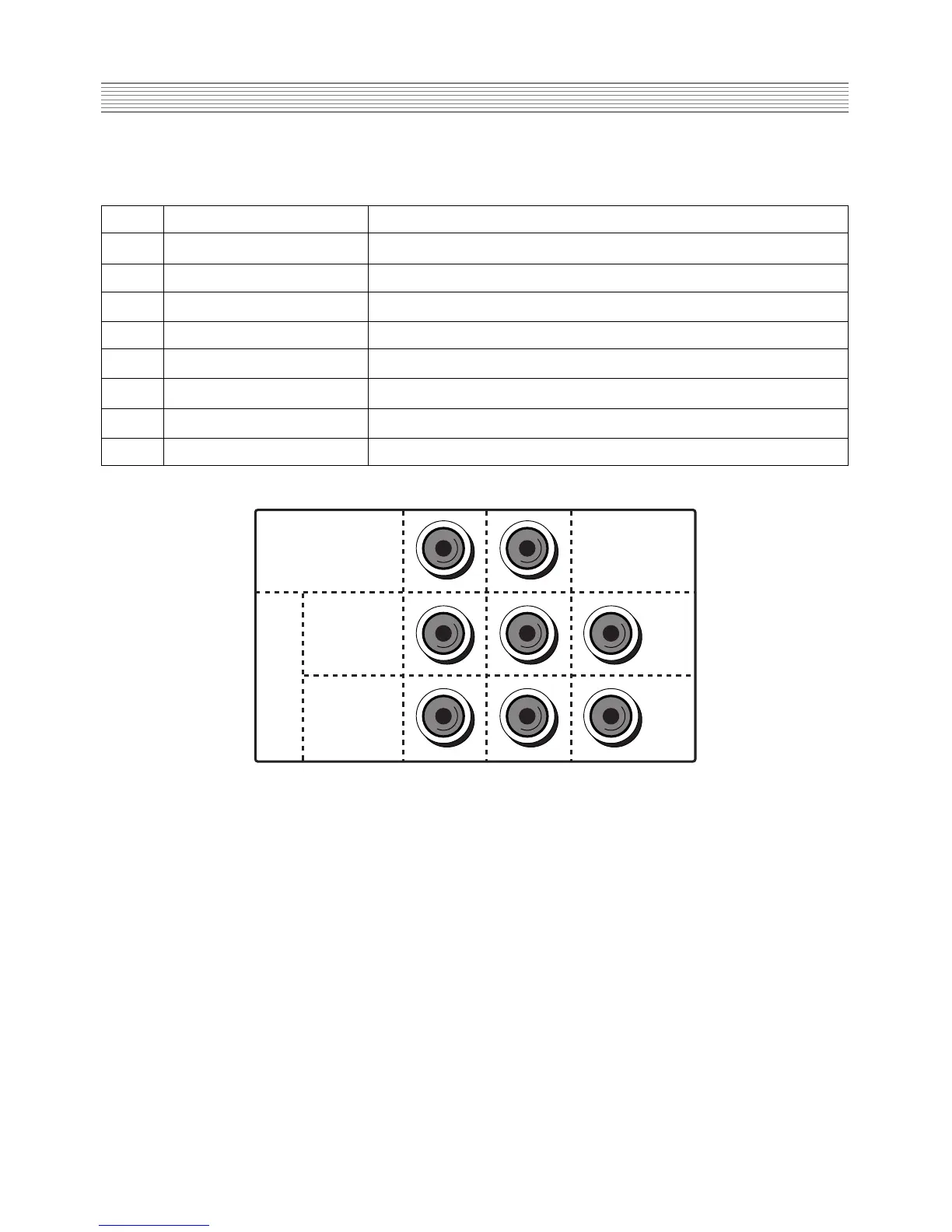

1-2-3 MONITOR OUTPUT & DVD INPUT(THE REAR SIDE)
Pin Signal Matching value
2 DVD Cb-in 0.7Vpp +/- 3dB, Impedence 75ohm
3 DVD Cr-in 0.7Vpp +/- 3dB, Impedence 75ohm
4 DVD Y-in 1Vpp +/- 3dB, Impedence 75ohm
5 DVD Audio Left 0.5 Vrms, Impedance > 10 kohm
6 DVD Audio Right 0.5 Vrms, Impedance > 10 kohm
7 Monitor Video-out 1Vpp +/- 3dB, Impedence 75ohm
8 Monitor Audio Left-out 0.5Vrms at RF sound FM 54% Mod(27Khz dev)
9 Monitor Audio Right-out 0.5Vrms at RF sound FM 54% Mod(27Khz dev)
VIDEO DVD-Y
Cb
L
(MONO)
R
OUT DVD IN
A
U
D
I
O
Cr
74
85
9
6
2
3
