NEC HT410 - Pin Assignments of COMPUTER in (D-Sub RGB) Connector

E-56
5
10
15
4321
9876
14131211
9. APPENDIX

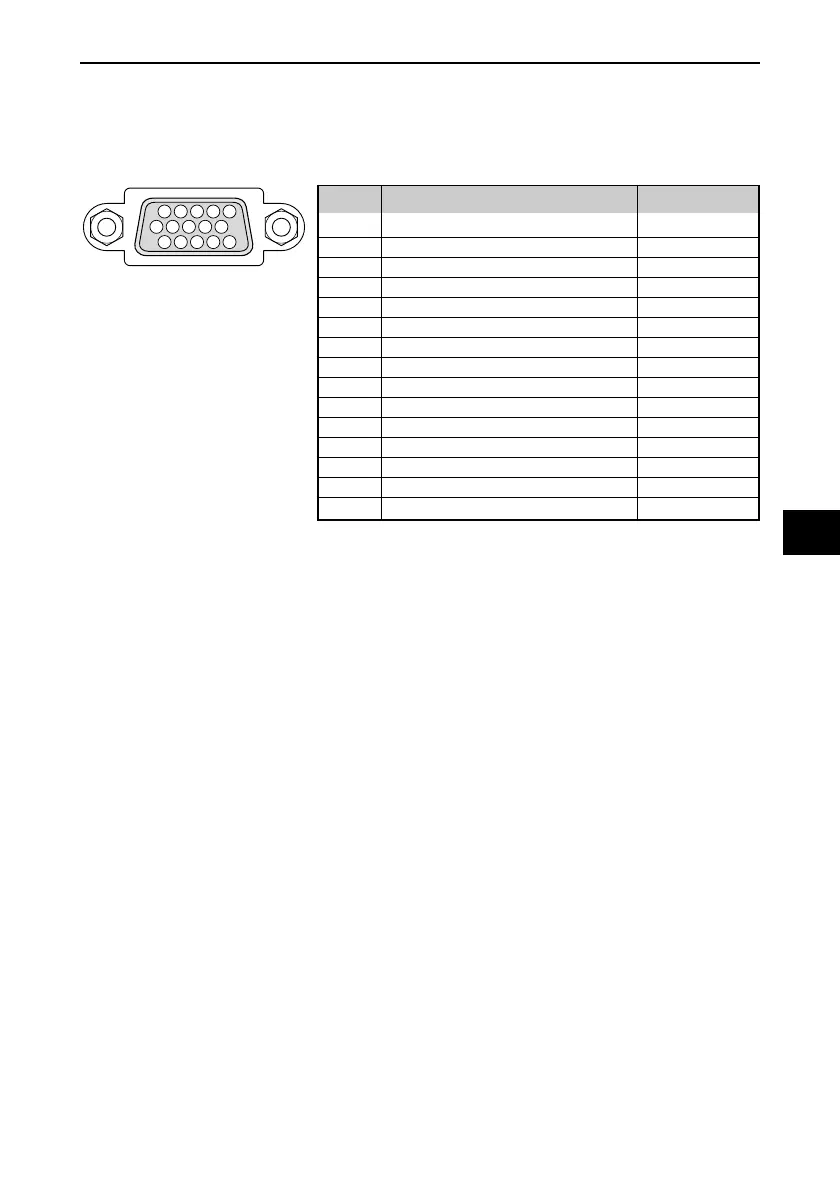

Pin Assignments of COMPUTER IN (D-Sub RGB) Connector
Mini D-Sub 15 Pin Connector
Signal Level
Video signal : 0.7Vp-p (Analog)
Sync signal : TTL level
Pin No. RGB Signal (Analog) YCbCr Signal
1 Red Cr
2 Green or Sync on Green Y
3 Blue Cb
4 Ground
5 Ground
6 Red Ground Cr Ground
7 Green Ground Y Ground
8 Blue Ground Cb Ground
9 No Connection
10 Sync Signal Ground
11 SCART Sync
12 Bi-directional DATA (SDA)
13 Horizontal Sync or Composite Sync
14 Vertical Sync
15 Data Clock
