NEC MultiSync LCD3215 User Manual

English-13
English
Connections
Before making connections:
* First turn off the power of all the attached equipment and make connections.
* Refer to the user manual included with each separate piece of equipment.

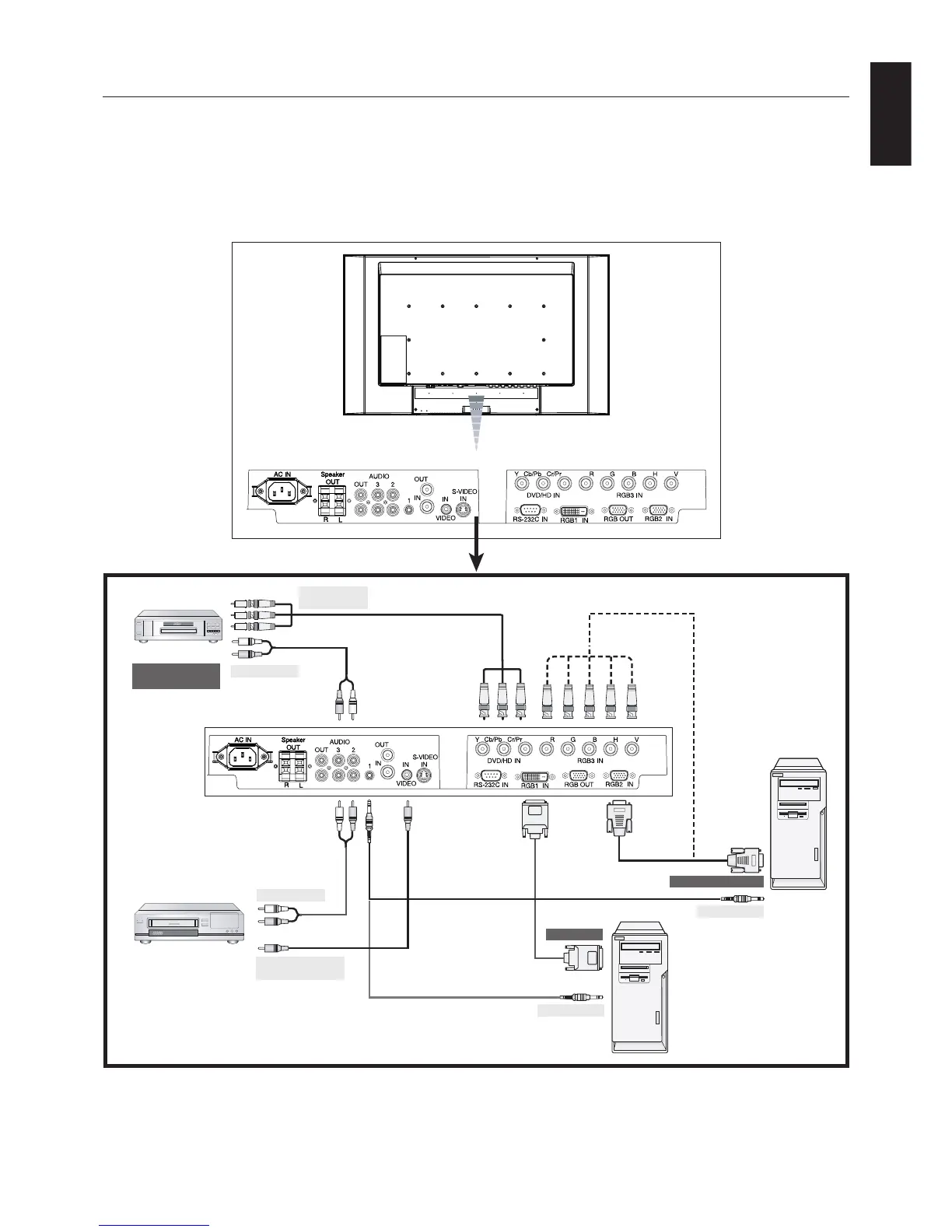

Wiring Diagram
Personal computer
BNC x 5BNC x 3RCA
RCA
RCA
RCA
To DVI output
Mini D-sub 15 pin
To DVD Component
video output
DVD player
To audio output
BNC-to-RCA
adapter BNC x 3
To audio output
VCR
To composite Output
In case of VCR
DVI-D connector
To audio output
To audio output
Equipment with
digital Interface
To analog RGB output

NEC MultiSync LCD3215 Specifications

General

Pixel pitch	0.511 x 0.511 mm
Aspect ratio	16:9
Response time	9 ms
Display diagonal	32 \
Display resolution	1360 x 768 pixels
Vertical scan range	50 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
Contrast ratio (typical)	800:1
Display number of colors	16.78 million colors
Display brightness (typical)	500 cd/m²
Audio input	Yes
DVI-D ports quantity	1
DVI-I ports quantity	0
Product color	Black
Market positioning	-
Panel mounting interface	400 x 200 mm
Power consumption (typical)	115 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth (without stand)	133 mm
Width (without stand)	789 mm
Height (without stand)	476.3 mm
Weight (without stand)	13100 g
