English-14
Connecting a Personal Computer
Connecting your computer to your LCD monitor will enable you to display your computer’s screen image.
Some video cards and a pixel clock over 165MHz may not display an image correctly.
Your LCD monitor displays proper image by adjusting the factory preset timing signal automatically.
<Factory preset signal timing>

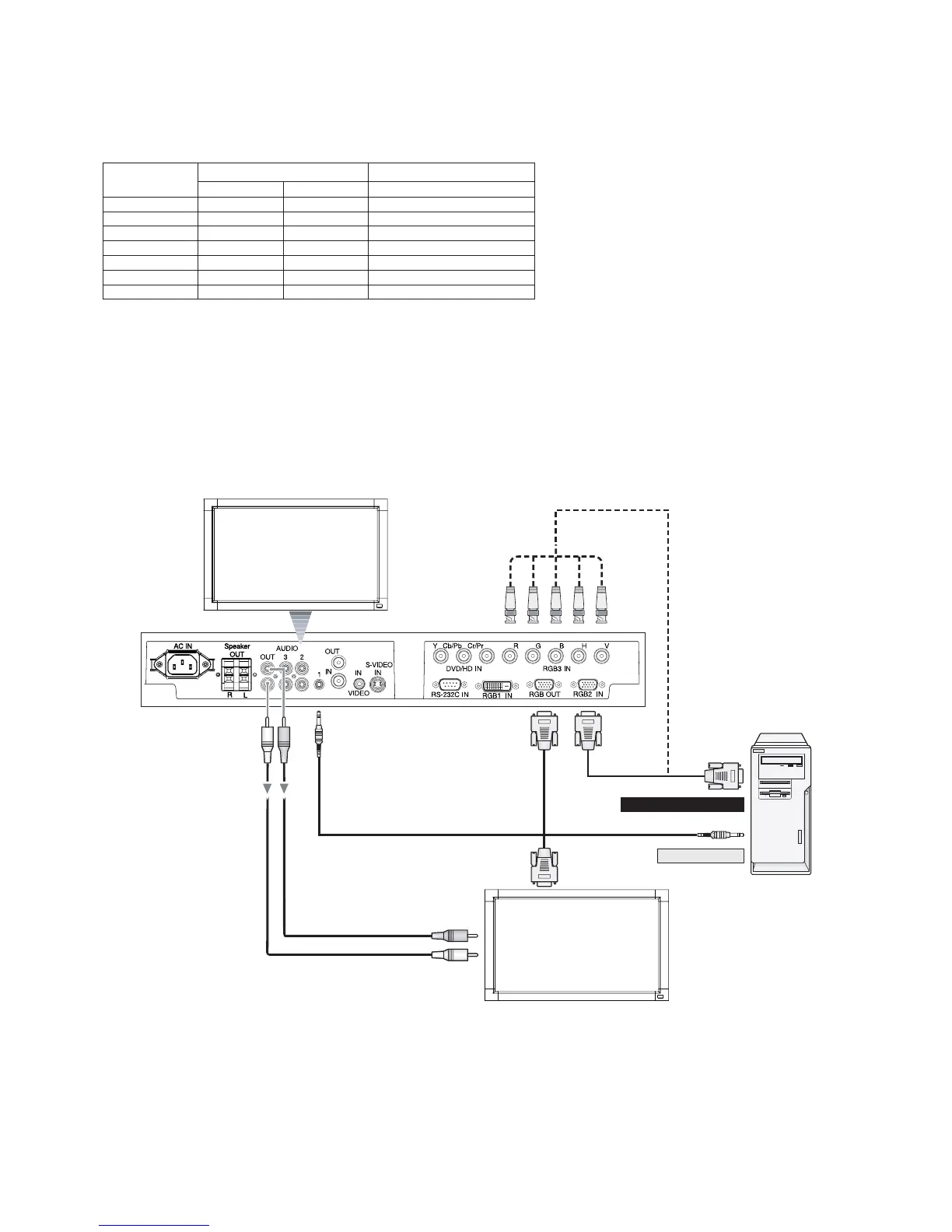

Connect the LCD Monitor to a Personal Computer
•To connect the RGB2 connector (mini D-sub 15 pin) on the LCD monitor, use the supplied PC - Video RGB signal cable
(mini D-sub 15 pin to mini D-sub 15 pin).
•To connect the RGB3 connector (BNC) on the LCD monitor, use a mini D-sub 15 pin to BNC x 5 signal cable (sold
separately). Select RGB3 from the INPUT button.
When connecting one or more LCD monitors, use the RGB OUT connector (mini D-sub 15 pin) (BNC INPUT only).
AUDIO IN 1, 2 and 3 can be used for audio input. To select audio source [AUDIO:1], [AUDIO:2] or [AUDIO:3] press the
AUDIO INPUT button.
LCD monitor
BNC x 5
Mini D-sub 15 pin
Mini D-sub 15 pin
To analog RGB output
Horizontal Vertical
640 x 480 31.5kHz 60Hz
800 x 600 37.9kHz 60Hz
1024 x 768 48.4kHz 60Hz
1280 x 768 48kHz 60Hz
1360 x 768 48kHz 60Hz Recommended resolution
1280 x 1024 64kHz 60Hz Compressed image
1600 x 1200 75kHz 60Hz Compressed image
Resolution
Remarks
Scanning frequency
To audio output
PC or IBM compatible
Second LCD monitor

Other manuals for NEC MultiSync LCD3215

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NEC MultiSync LCD3215 and is the answer not in the manual?

NEC MultiSync LCD3215 Specifications

General IconGeneral
Pixel pitch0.511 x 0.511 mm
Aspect ratio16:9
Response time9 ms
Display diagonal32 \
Display resolution1360 x 768 pixels
Vertical scan range50 - 85 Hz
Horizontal scan range31.5 - 91.1 kHz
Contrast ratio (typical)800:1
Display number of colors16.78 million colors
Display brightness (typical)500 cd/m²
Audio inputYes
DVI-D ports quantity1
DVI-I ports quantity0
Product colorBlack
Market positioning-
Panel mounting interface400 x 200 mm
Power consumption (typical)115 W
Operating temperature (T-T)5 - 40 °C
Operating relative humidity (H-H)20 - 80 %
Weight and Dimensions IconWeight and Dimensions
Depth (without stand)133 mm
Width (without stand)789 mm
Height (without stand)476.3 mm
Weight (without stand)13100 g
