NEC MultiSync LCD3215 User Manual

English-17
English
Connect the LCD Monitor to a Stereo Amplifier
•Turn on the LCD monitor and the amplifier only after all connections have been made.
• Use a stereo Mini-RCA cable to connect the AUDIO OUT connector (Stereo Mini Jack) on the LCD monitor to the audio
input on the amplifier.
• Do not reverse the audio left and right jacks.
• The AUDIO IN is used for audio input.
• The AUDIO OUT jack outputs sound from the selected Audio input.

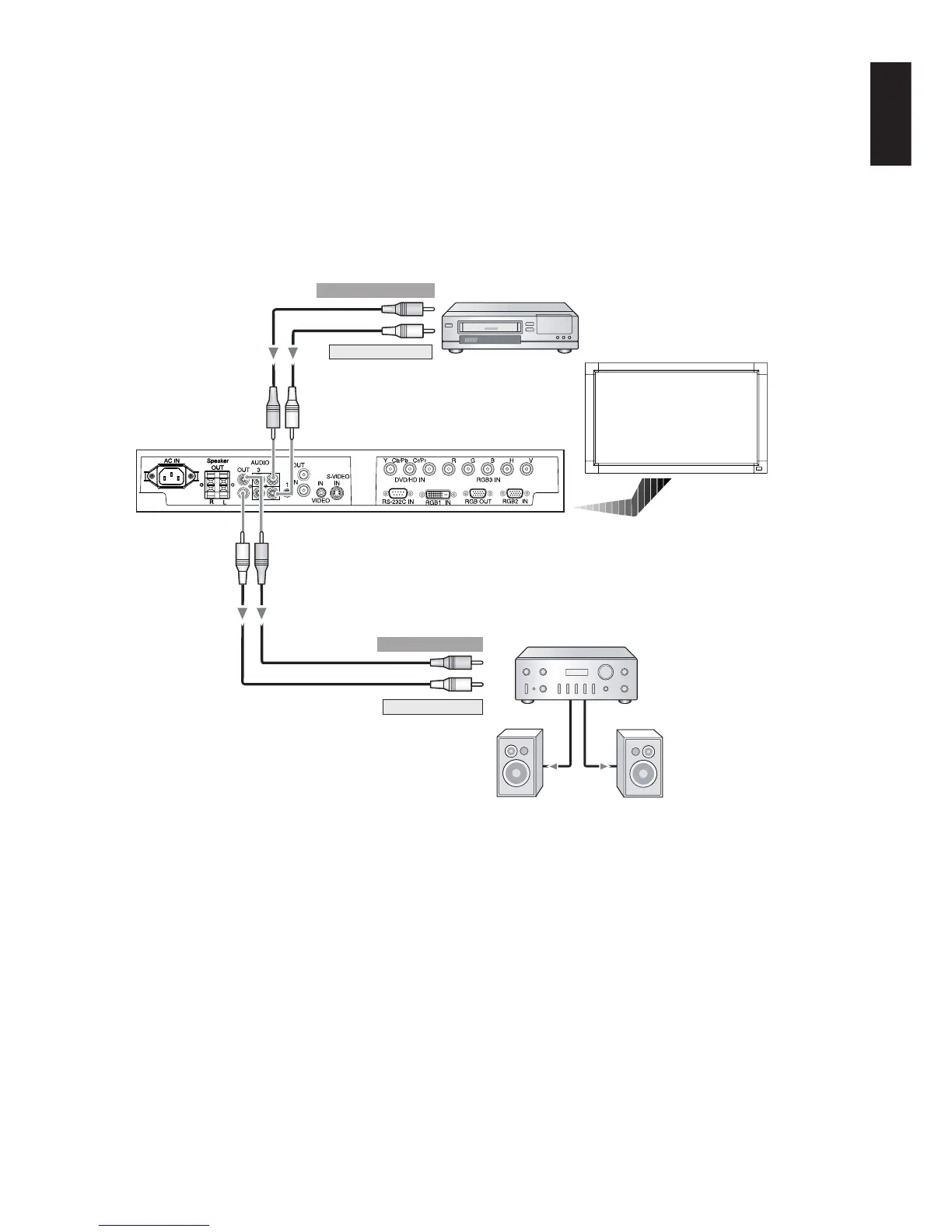

Connecting to a Stereo Amplifier
You can connect your stereo amplifier to your LCD monitor. Refer to your amplifier owner’s manual for more information.
LCD monitor
RCA
To audio right output
To audio left output
VCR or Laser disc player
To audio right input
To audio left input
Amplifier
External speaker External speaker
RCA

NEC MultiSync LCD3215 Specifications

General

Pixel pitch	0.511 x 0.511 mm
Aspect ratio	16:9
Response time	9 ms
Display diagonal	32 \
Display resolution	1360 x 768 pixels
Vertical scan range	50 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
Contrast ratio (typical)	800:1
Display number of colors	16.78 million colors
Display brightness (typical)	500 cd/m²
Audio input	Yes
DVI-D ports quantity	1
DVI-I ports quantity	0
Product color	Black
Market positioning	-
Panel mounting interface	400 x 200 mm
Power consumption (typical)	115 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth (without stand)	133 mm
Width (without stand)	789 mm
Height (without stand)	476.3 mm
Weight (without stand)	13100 g
