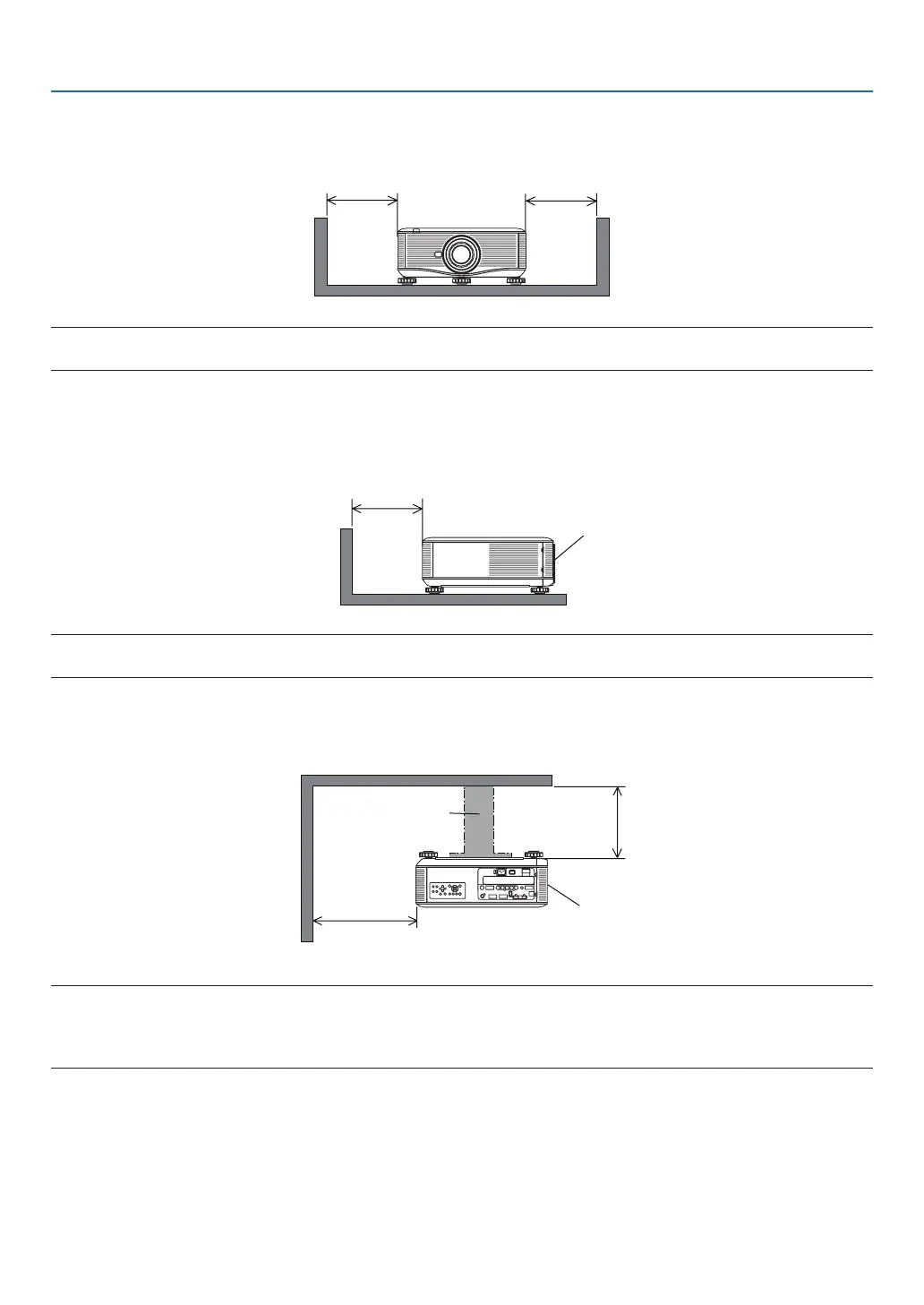

Example 1 – If there are walls on both sides of the projector.
50 cm/19.7" or greater 30 cm/12" or greater
NOTE:
The drawing shows the proper clearance required for the front, back and top of the projector.
Example 2 – If there is a wall behind the projector.
(1) For floor installation:
70 cm/27.6" or greater
Lens
NOTE:
The drawing shows the proper clearance required for the back, sides and top of the projector.
(2) For ceiling mounting:
Ceiling mount unit
30 cm/12" or
greater
70 cm/27.6"
or greater
Lens
NOTE:
1. The drawing shows the proper clearance required for the front, sides, back and bottom of the projector.
2. If suspending the projector 30 cm/12 inches away from the ceiling, allow ample clearance for all four sides and the under the
projector.
(3) Upward or downward projection:
Whenusingtheprojectorinanupwardprojectionangle,allow1m/40inchesorgreaterbetweentheexhaustvent
andthewall.
Whenusingtheprojectorinadownwardprojectionangle,allow70cm/27.6inchesorgreaterbetweentheexhaust
ventandthewall.
